Air Conditioning (A/C)
Models 129 as of MY 1997

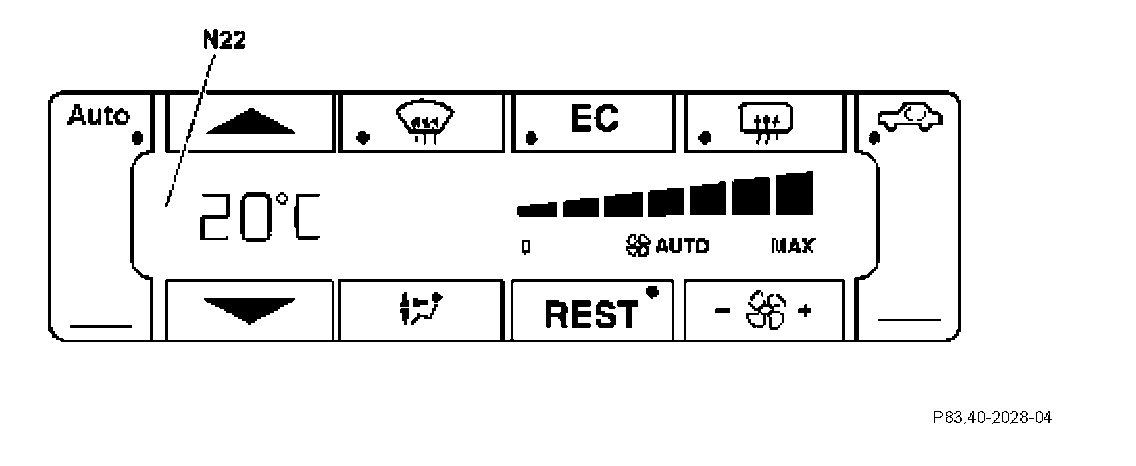

Reading Actual Values (via A/C Pushbutton Control Module [N22])
Note
1. The display window will show in sequence the current data from the A/C pushbutton control module (N22).
2. The temperature control is maintained during the duration
of the test.
Preparation for Test
1. Ignition: ON
2. Set temperature selection to 72 °F.
3. Press REST for more than 6 seconds.
4. The left side of the display window will alternately display the number 01 and the in-car temperature (e.g. 72 °F)

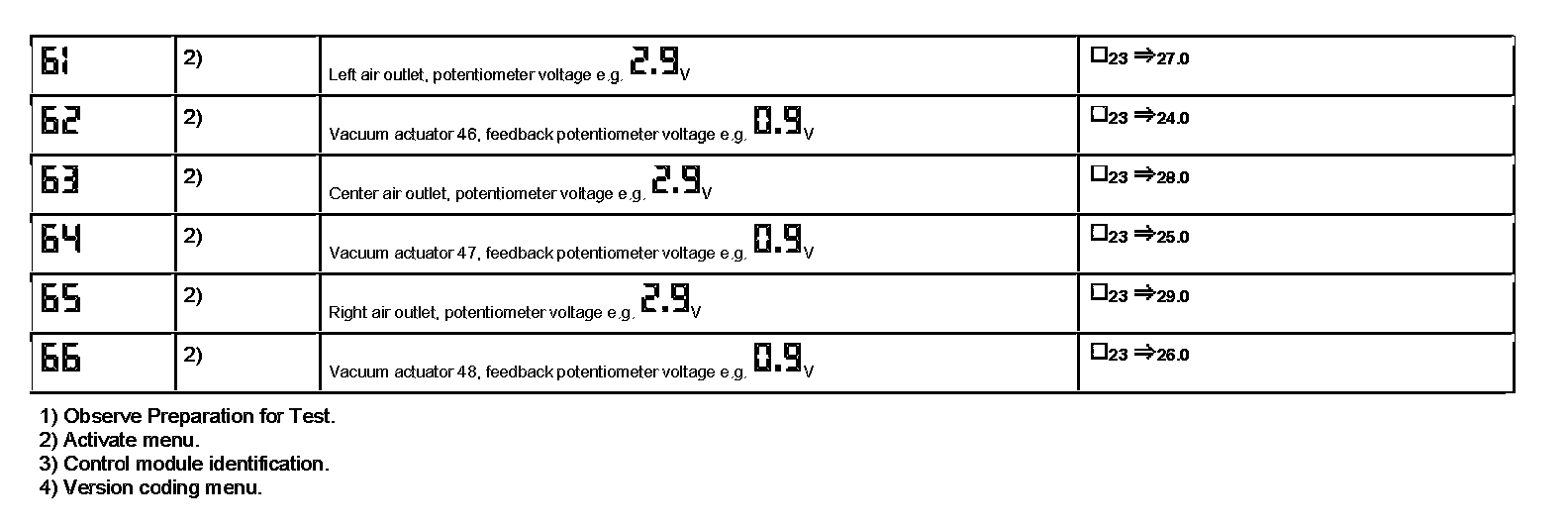

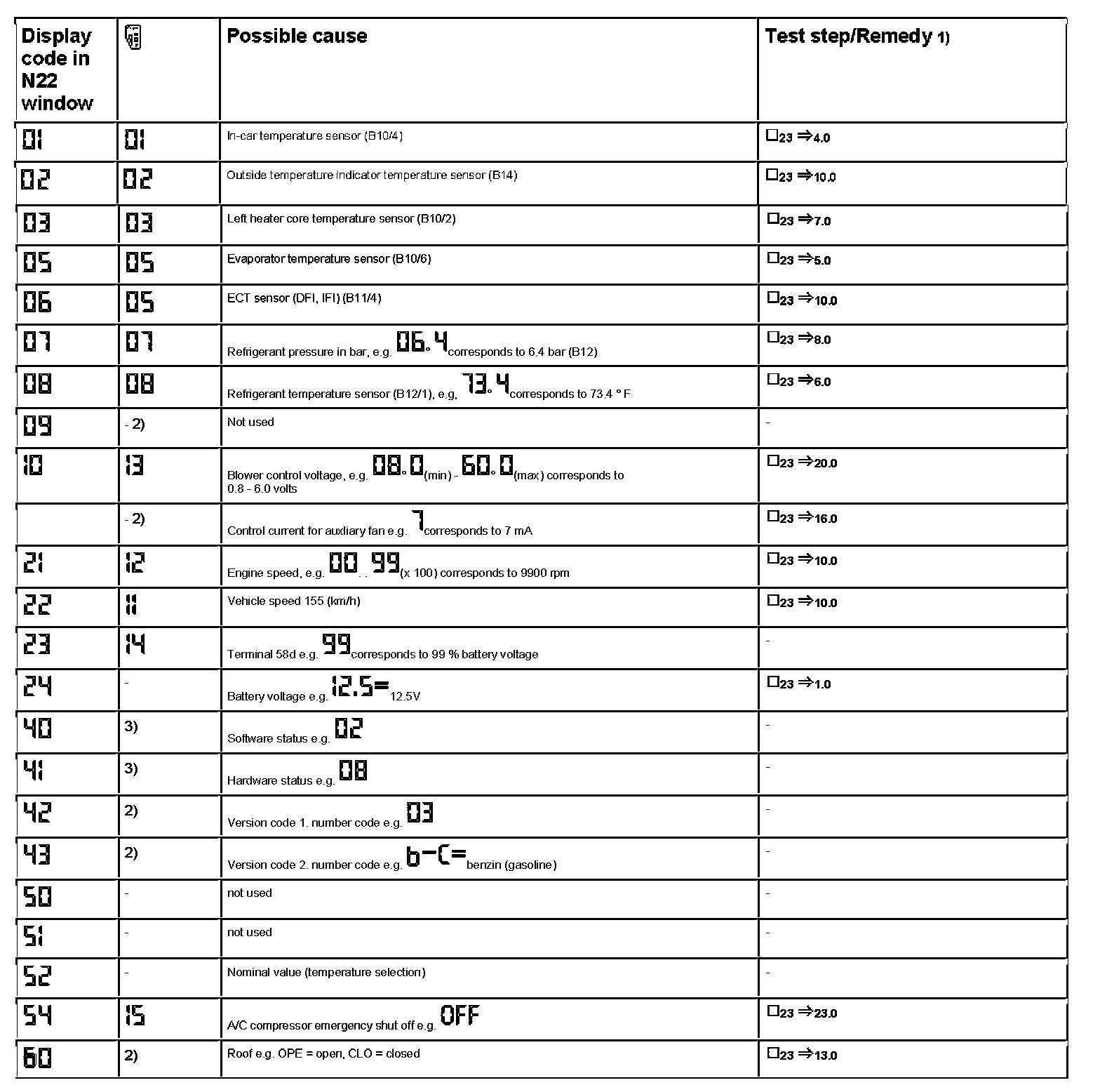

5. By pressing FAN+ the next highest test step is displayed (see table).
6. Press REST to end test program.
Note: The display will, or "OPE" if there is an open circuit, "CLO" if there is a short circuit.
