SL 500 (129.068) V8-5.0L (113.961)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Component Tests
>>
Pneumatic Test Program [PTP]
>>
PTP - Component Locations [31]
>>
As of M.Y. 1997
As of M.Y. 1997
Air Conditioning (A/C)
Models 129 as of MY 1997

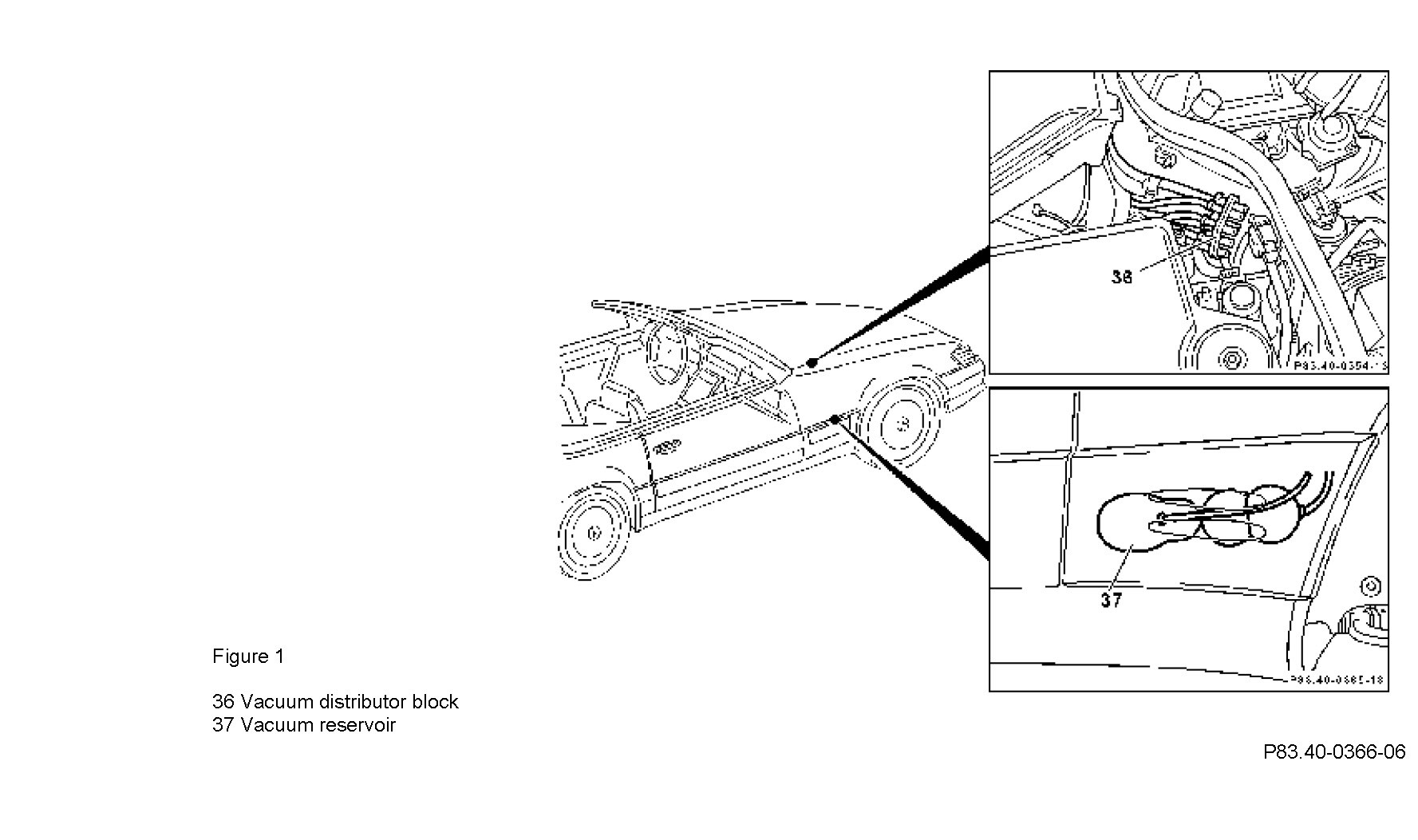

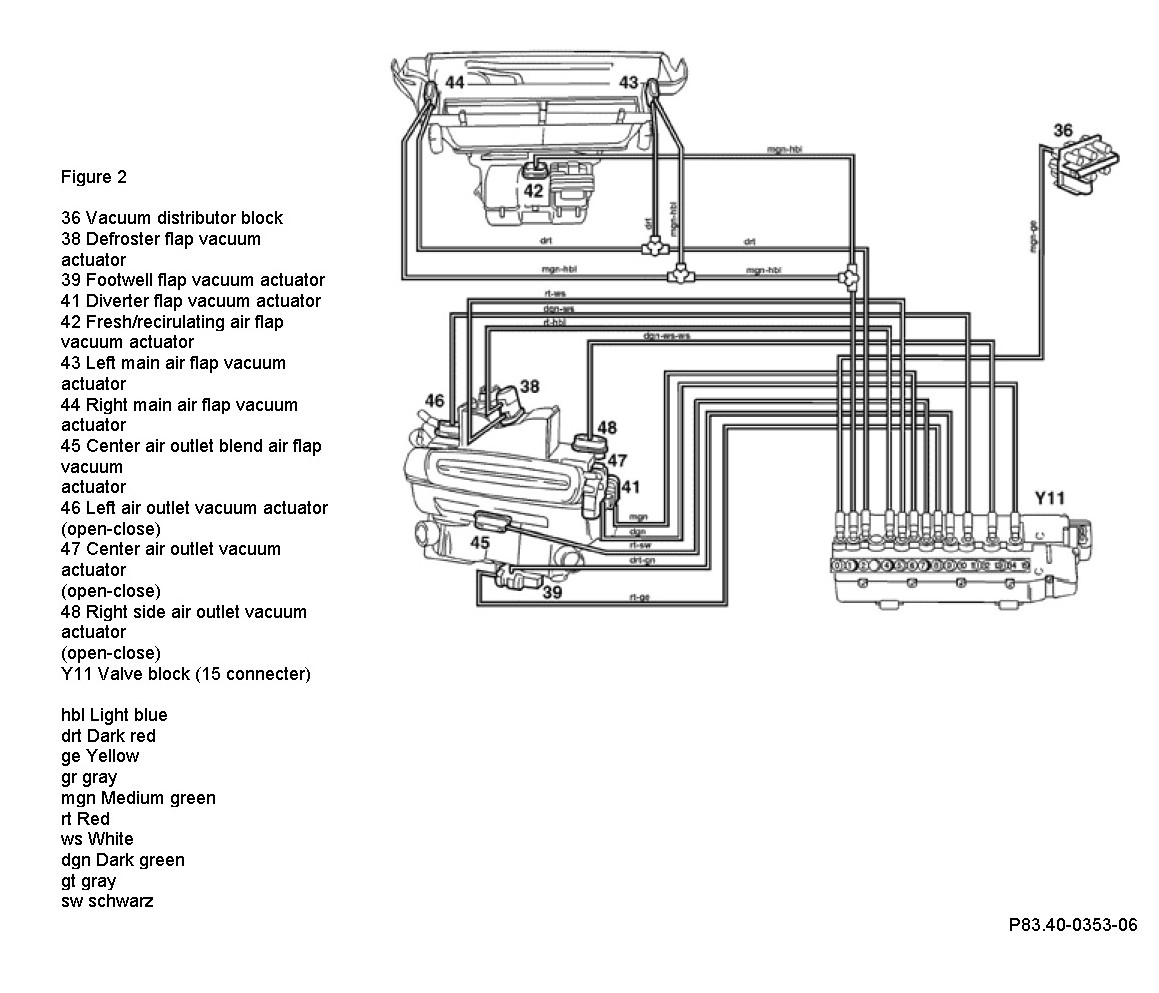

Pneumatic Test Program [PTP] - Component Locations
