As of M.Y. 1997
As of M.Y. 1997
Air Conditioning (A/C)
Models 129 as of MY 1997

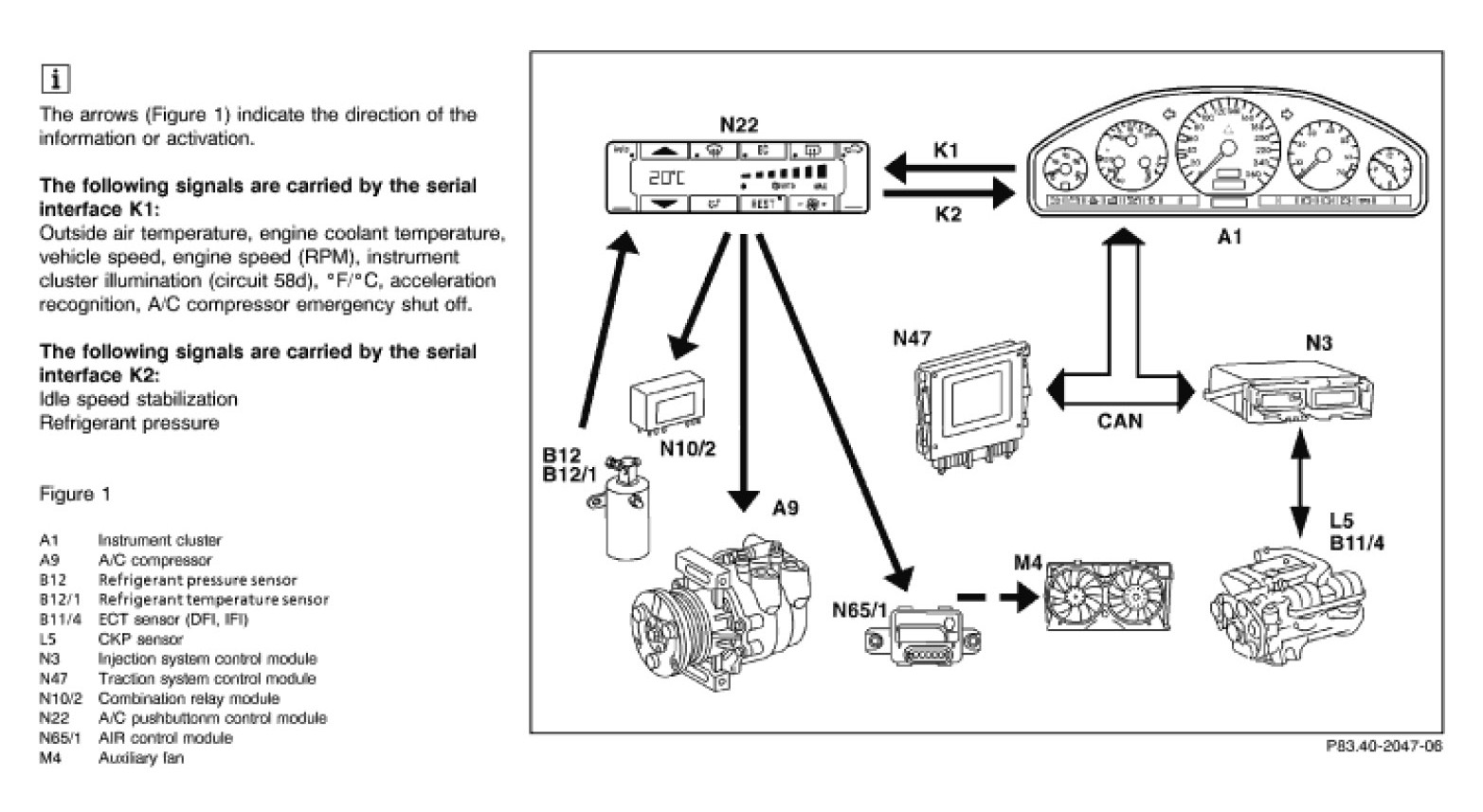

Electrical Test Program [ETP] - Connection of Components
