Air Door Vacuum Solenoid Valve: Locations

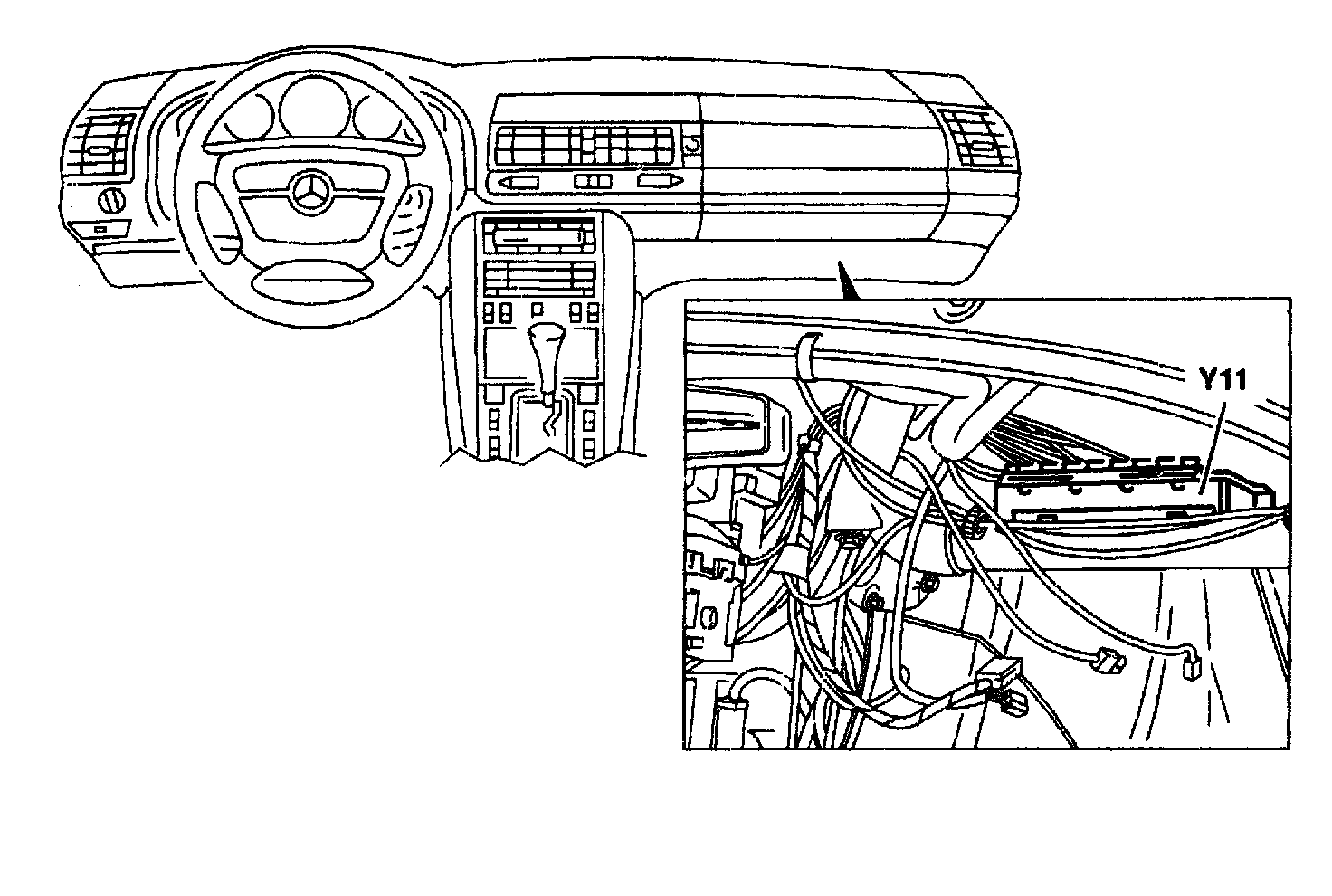

The valve block (Y11) is located behind the glove compartment.
