Home >> Mercedes Benz >> 2000 >> SL 500 (129.068) V8-5.0L (113.961) >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Door >> Air Door Actuator / Motor >> Locations >> Vacuum Element For Side Nozzle Flap

Vacuum Element For Side Nozzle Flap

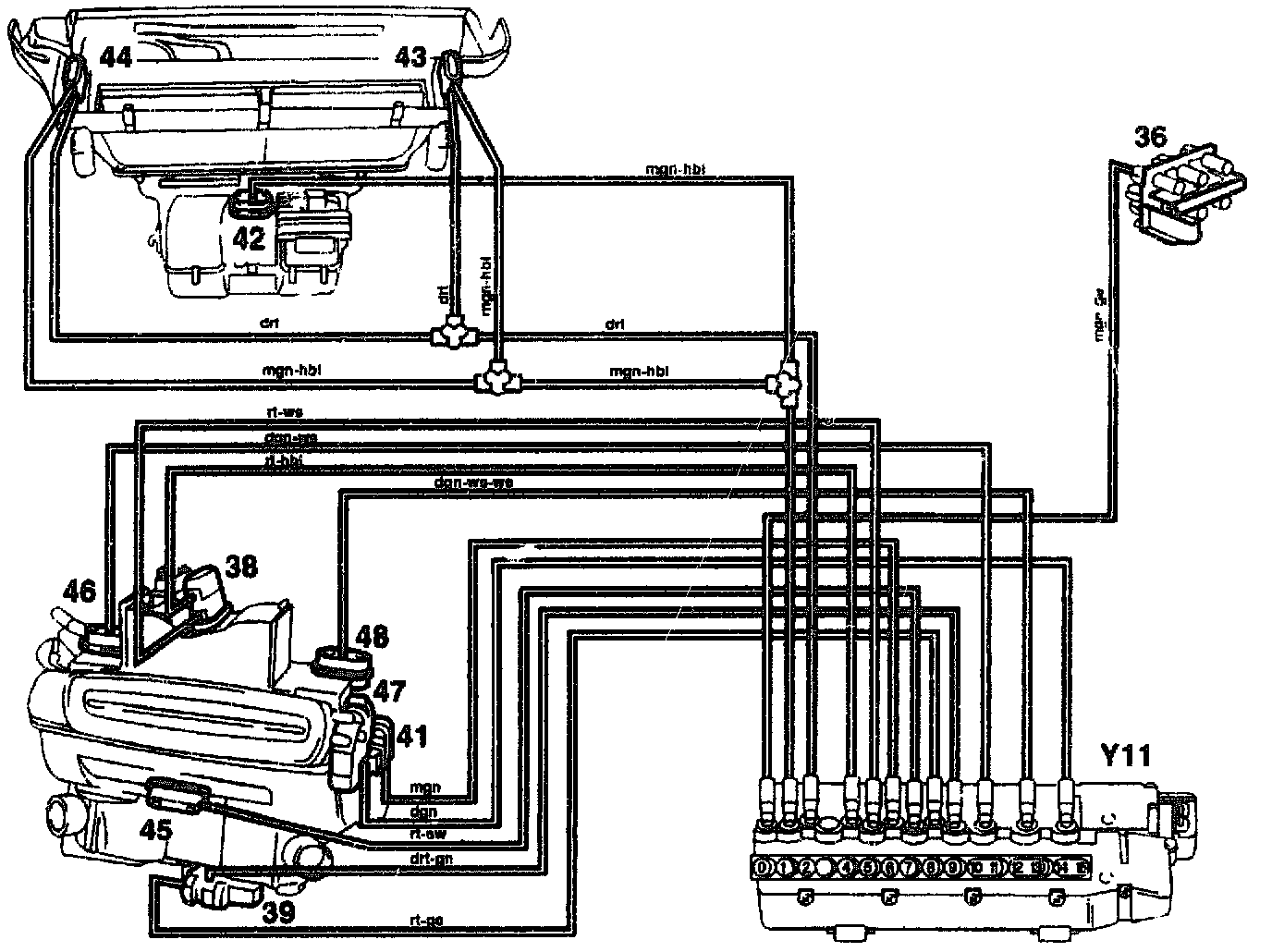

The vacuum elements for the left (46) and right (47) side nozzle flaps are located on the automatic A/C housing.
