Vacuum Element For Blend Flap
Vacuum Element For Blend Flap

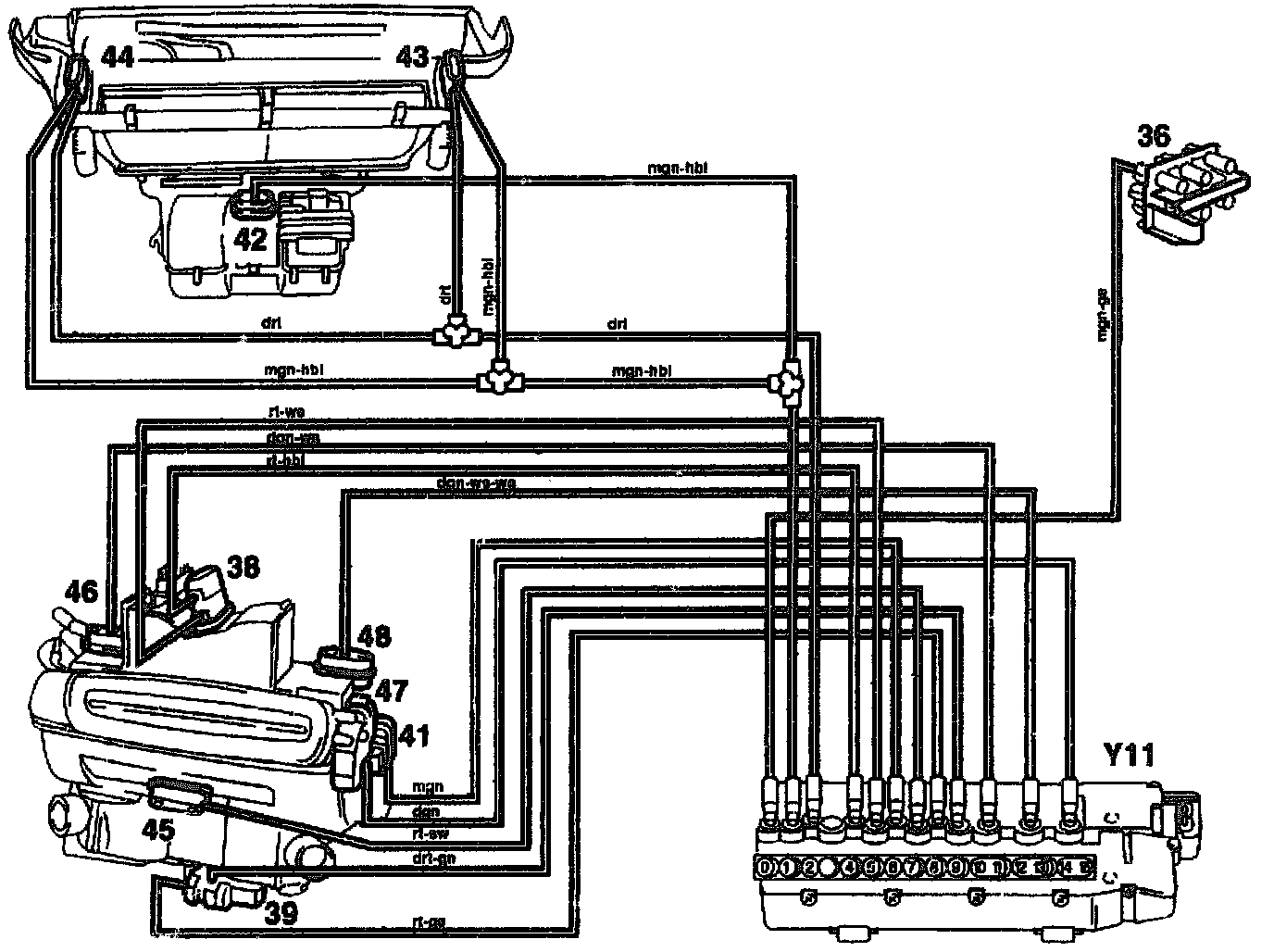

The vacuum element for the blend flap (45) is located on the automatic A/C housing.
