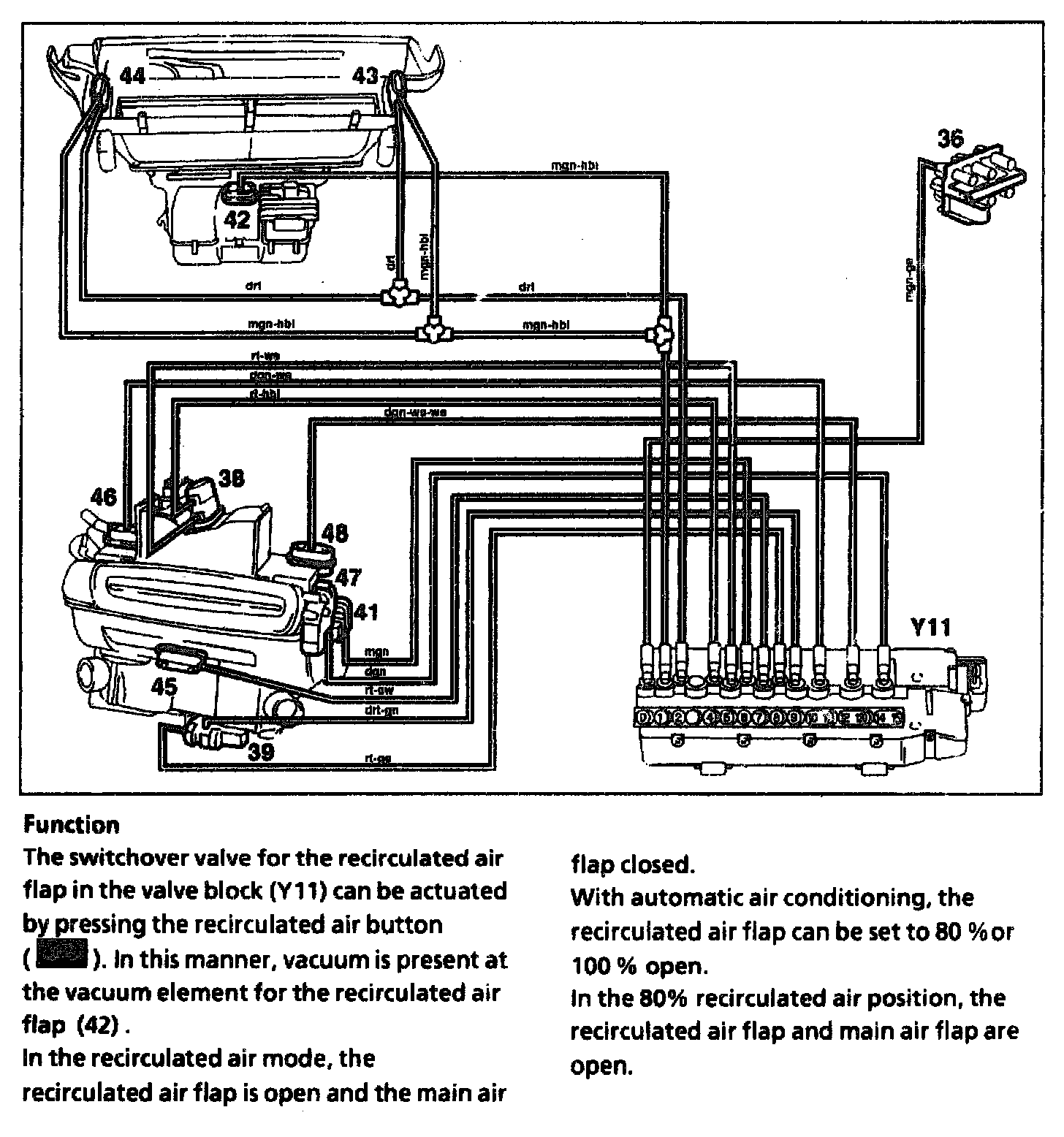

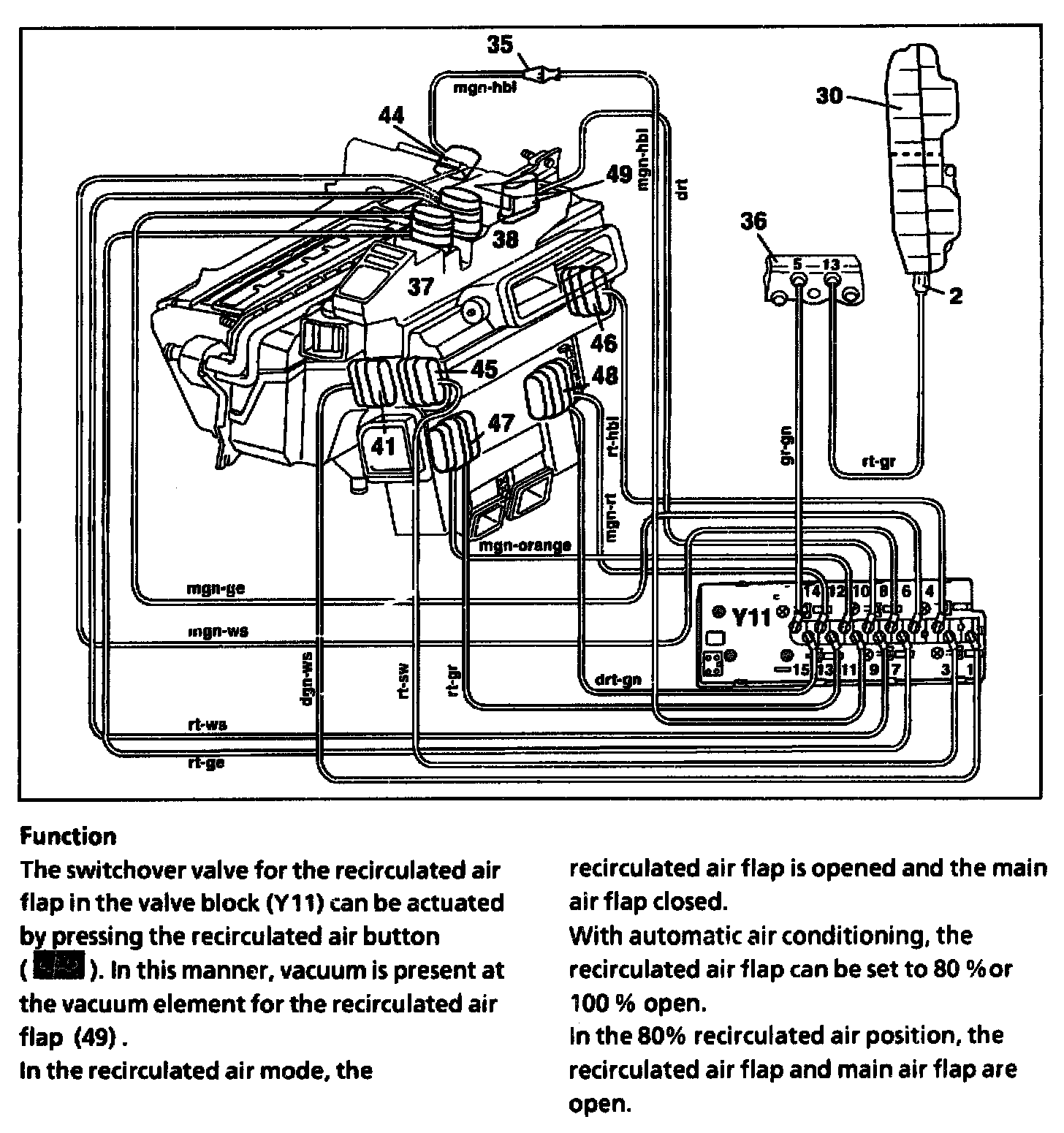

Vacuum Element For Recirculated Air Flap

The vacuum element for the recirculated air flap serves for switching over from fresh air to recirculated air.

The vacuum element for the recirculated design air flap is designed as a single-stage vacuum element.
