Vacuum Element For Footwell Flap

The footwell flap vacuum elements open the footwell flaps 80 % or 100 % for control of the air to the air outlets in the front and rear footwells.

The footwell flap vacuum elements are designed as 2-stage vacuum elements with one vacuum connection each for stroke A (small stroke) and stroke B (large stroke).

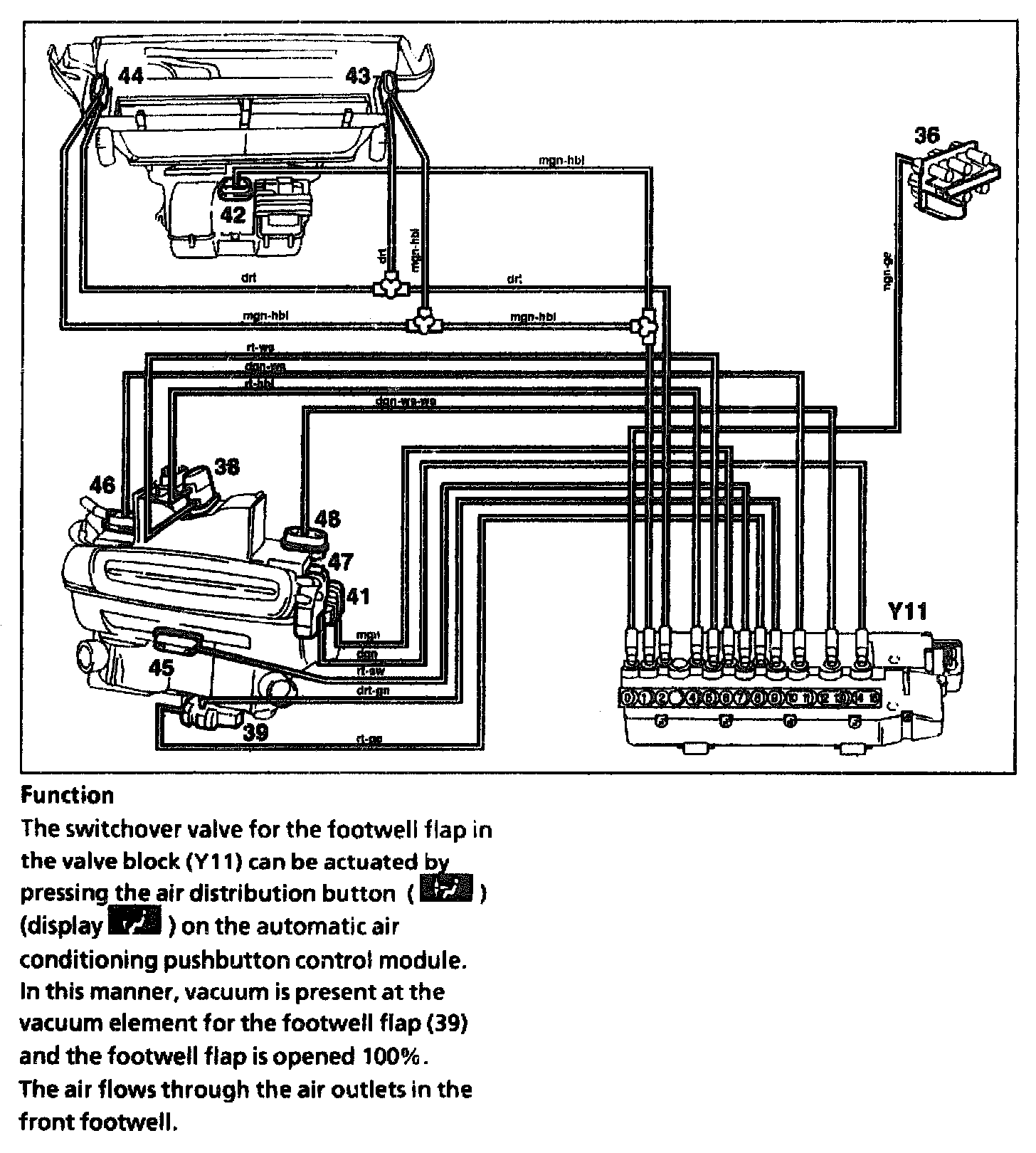

Function, Model 129:

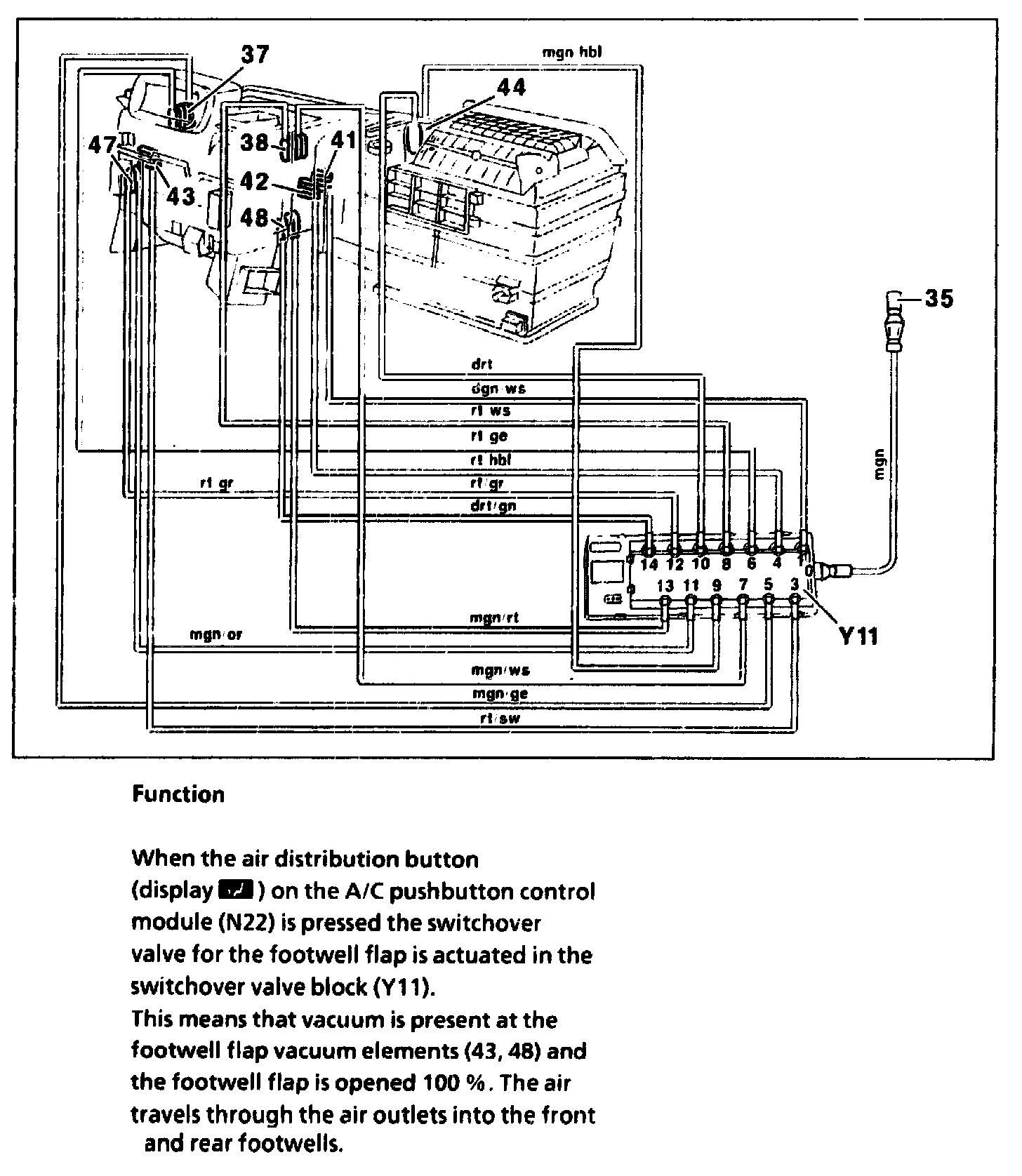

Function, Model 140:

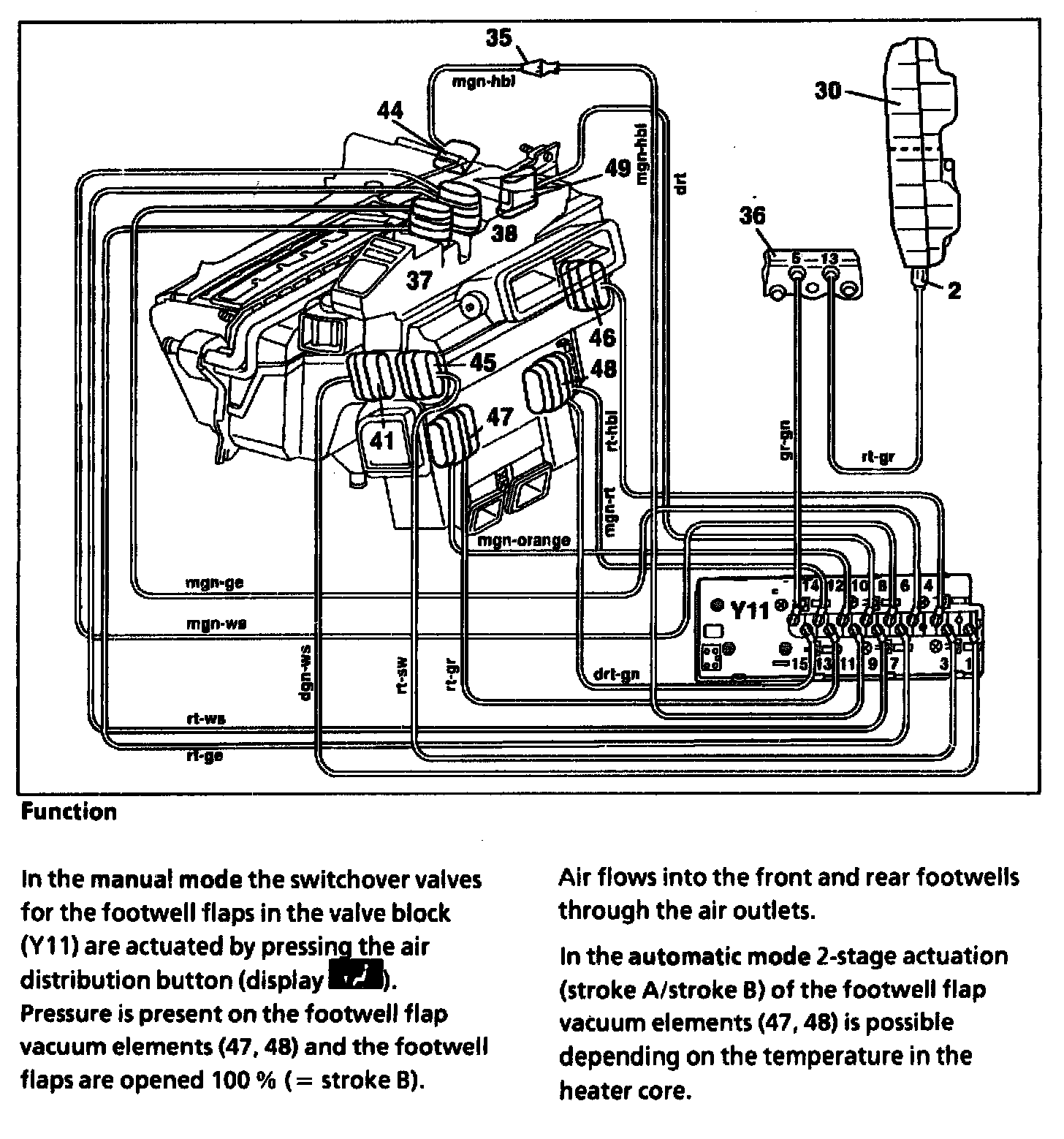

Function, Model 202:

Function, Model 208:

Function, Model 210:
