Vacuum Element For Defroster Nozzle Flap



The defroster nozzle vacuum elements operate the defroster nozzle flaps for control of the air to the defroster nozzles.

The defroster nozzle vacuum elements are designed as 2-stage vacuum elements with one vacuum connection each for stroke A (small stroke) and stroke B (large stroke).

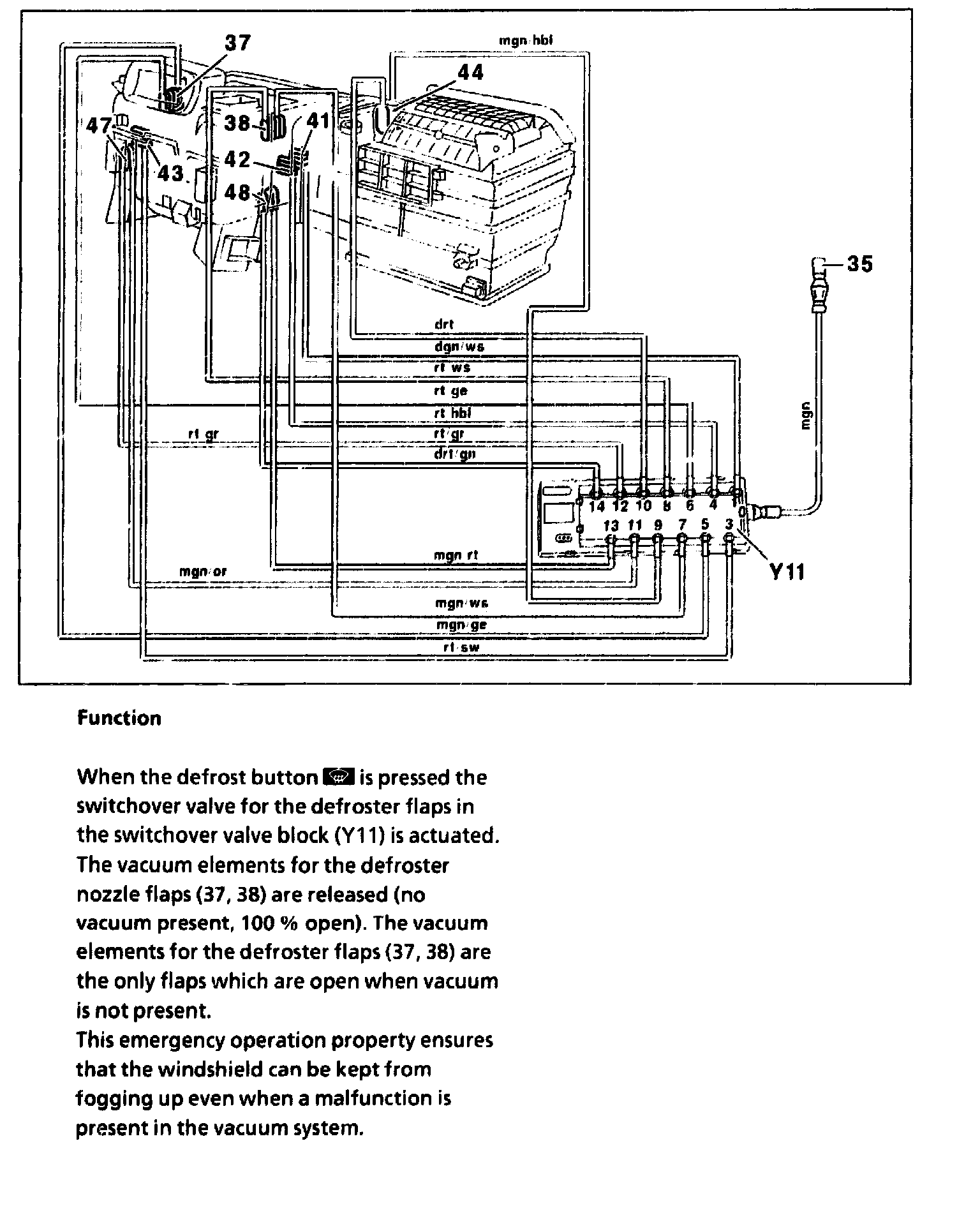

Function, Model 129:

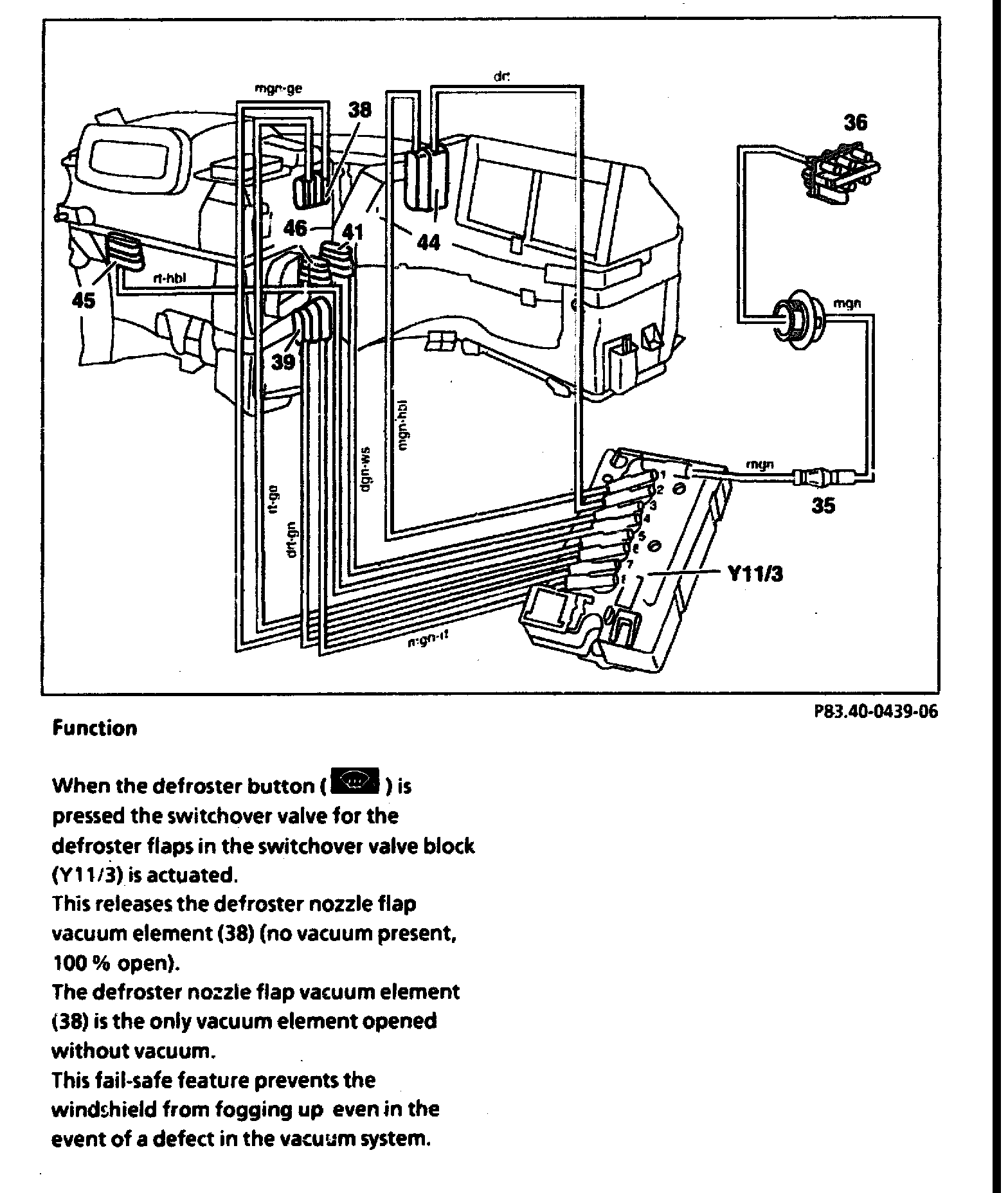

Function, Model 202:

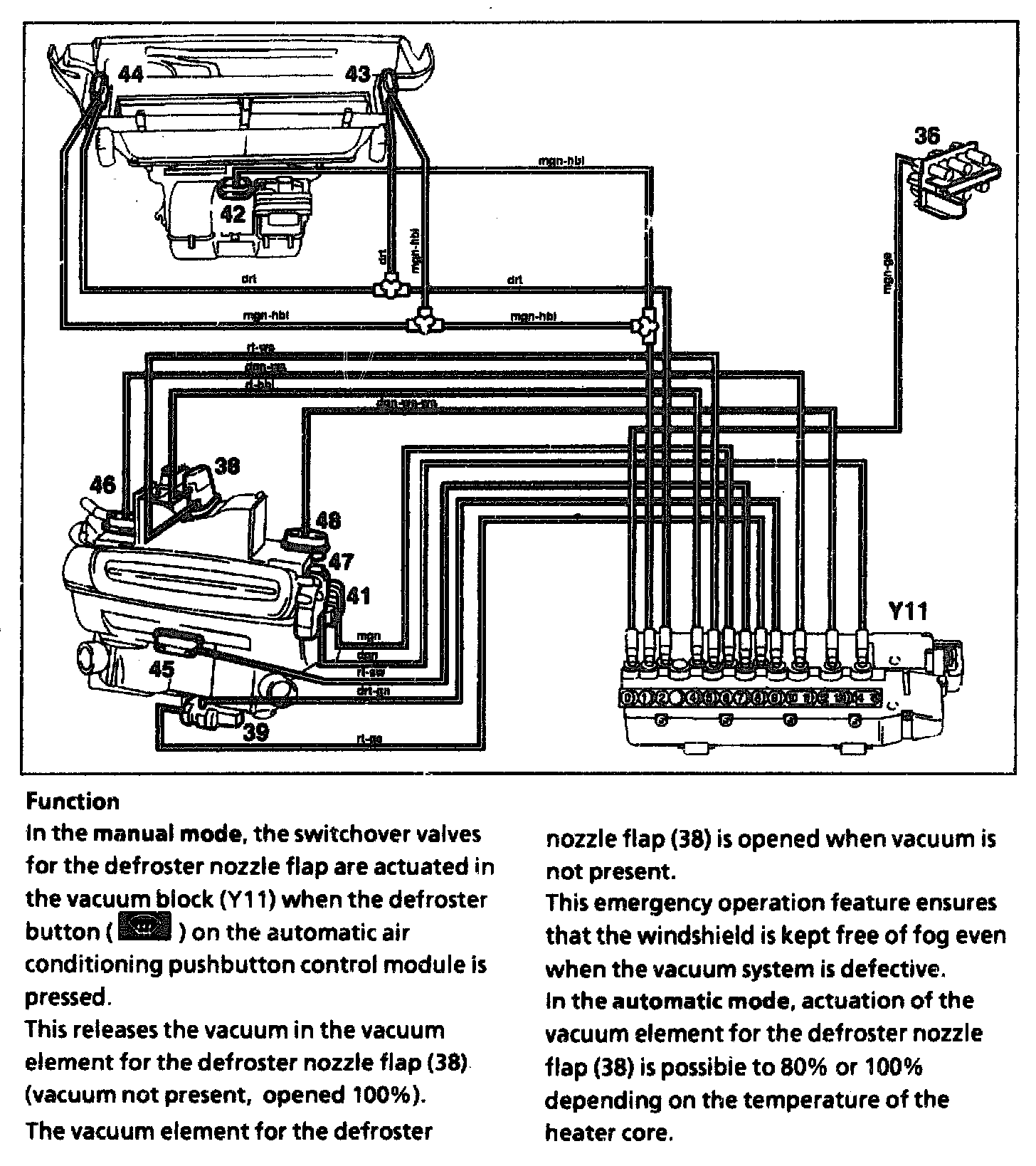

Function, Model 208:





Function, Model 210:
