Vacuum Element For Center Nozzle Flap

The center nozzle flap vacuum element actuates the center nozzle flap and opens or closes the air supply to the center nozzle.

The center nozzle flap vacuum element is designed as a single-stage vacuum

Function:

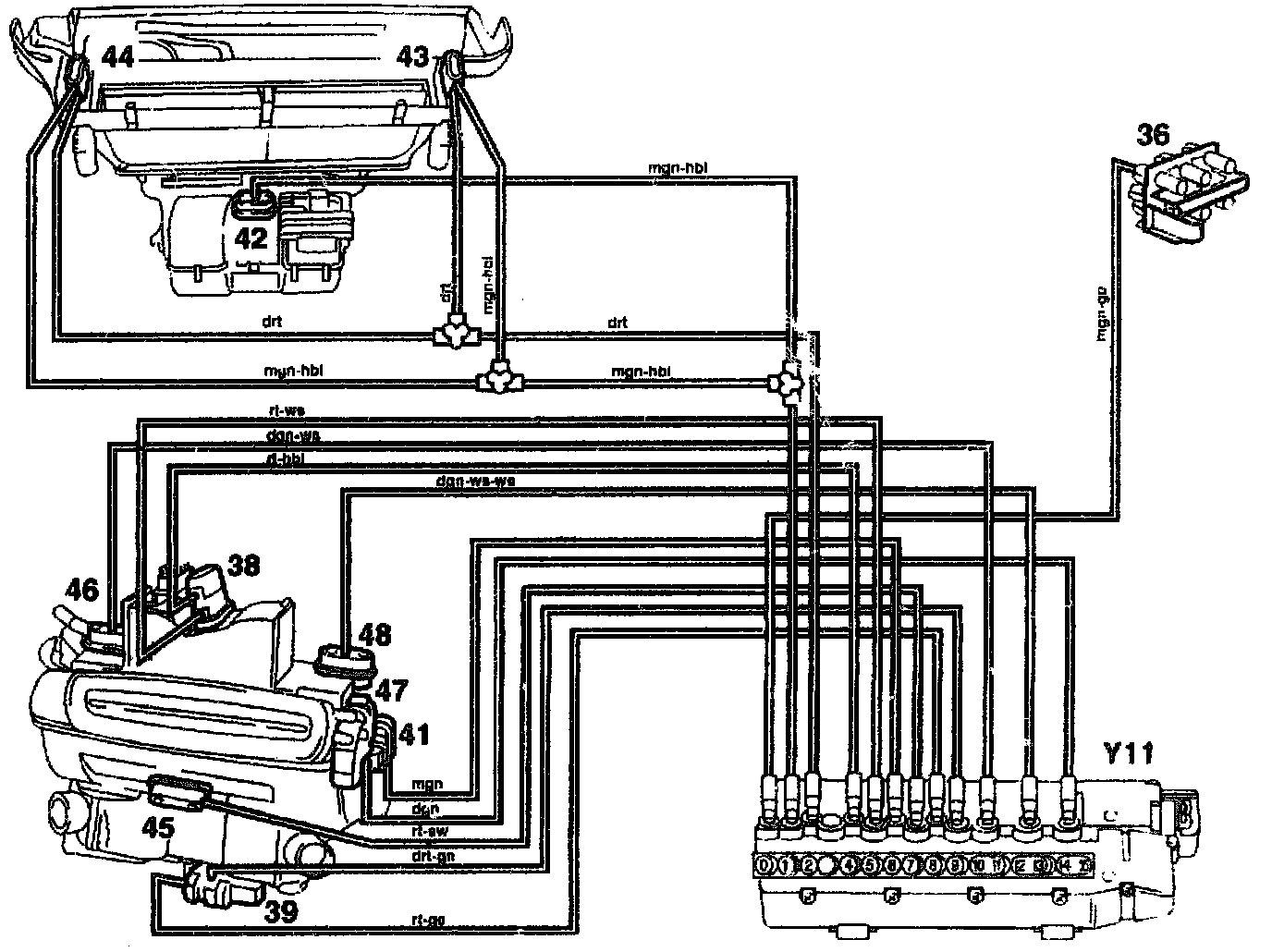

The center nozzle flap switchover valve in the valve block (Y11) is actuated when the knurled dial for the center nozzle is turned. In this manner, vacuum is present at the center nozzle flap vacuum element (48) and the center nozzle flap is opened.
A potentiometer is attached to the center nozzle adjustment selector.
A feedback potentiometer is located in the center nozzle flap vacuum element (48). This feedback potentiometer indicates to the automatic air conditioning pushbutton control module the momentary flap position.
