Suspension Control ( Automatic - Electronic )
Suspension Control ( Automatic - Electronic )
Adaptive Damping System (ADS)

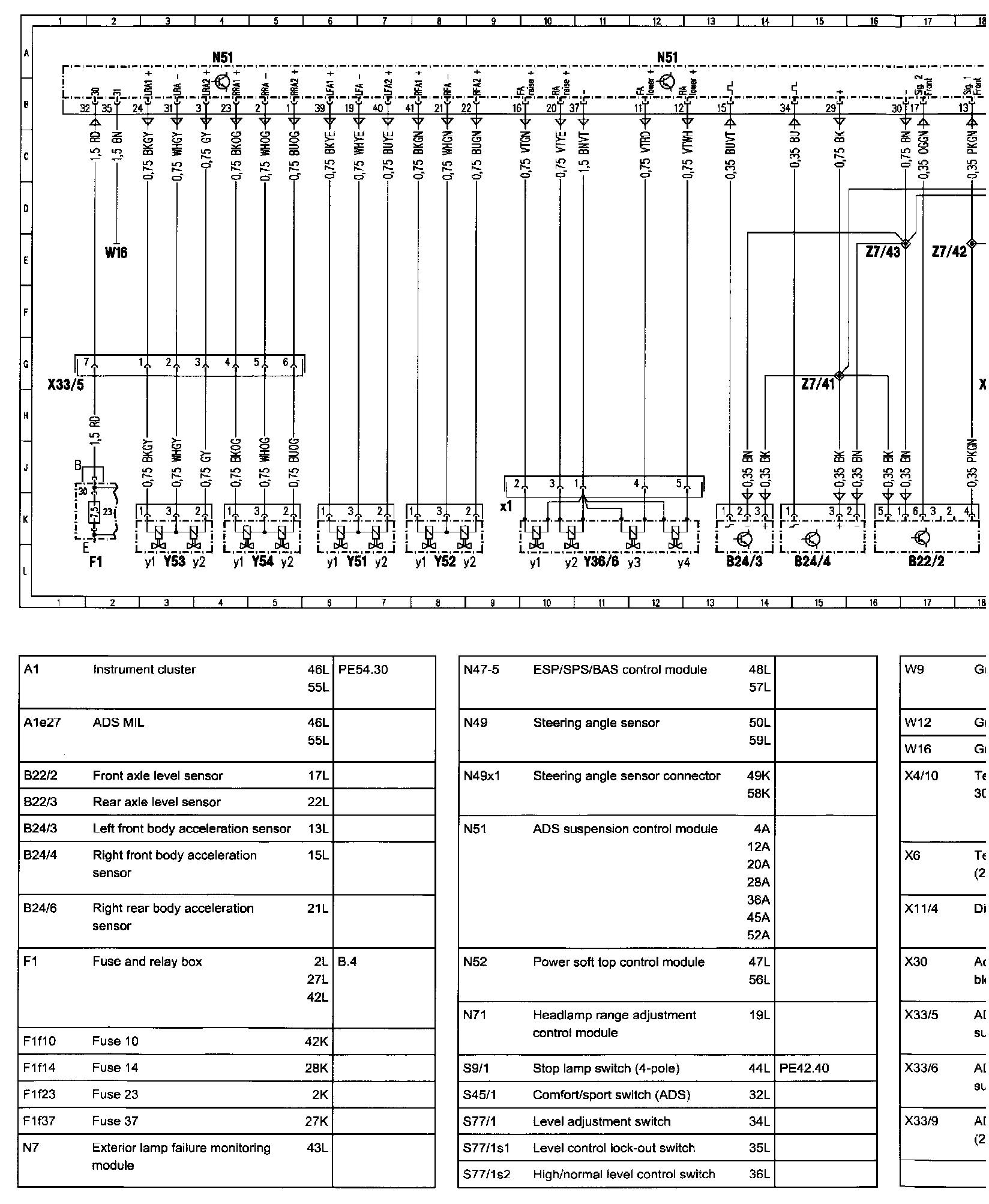

�/|-��|-��|-PE32.32-U-2000YD:

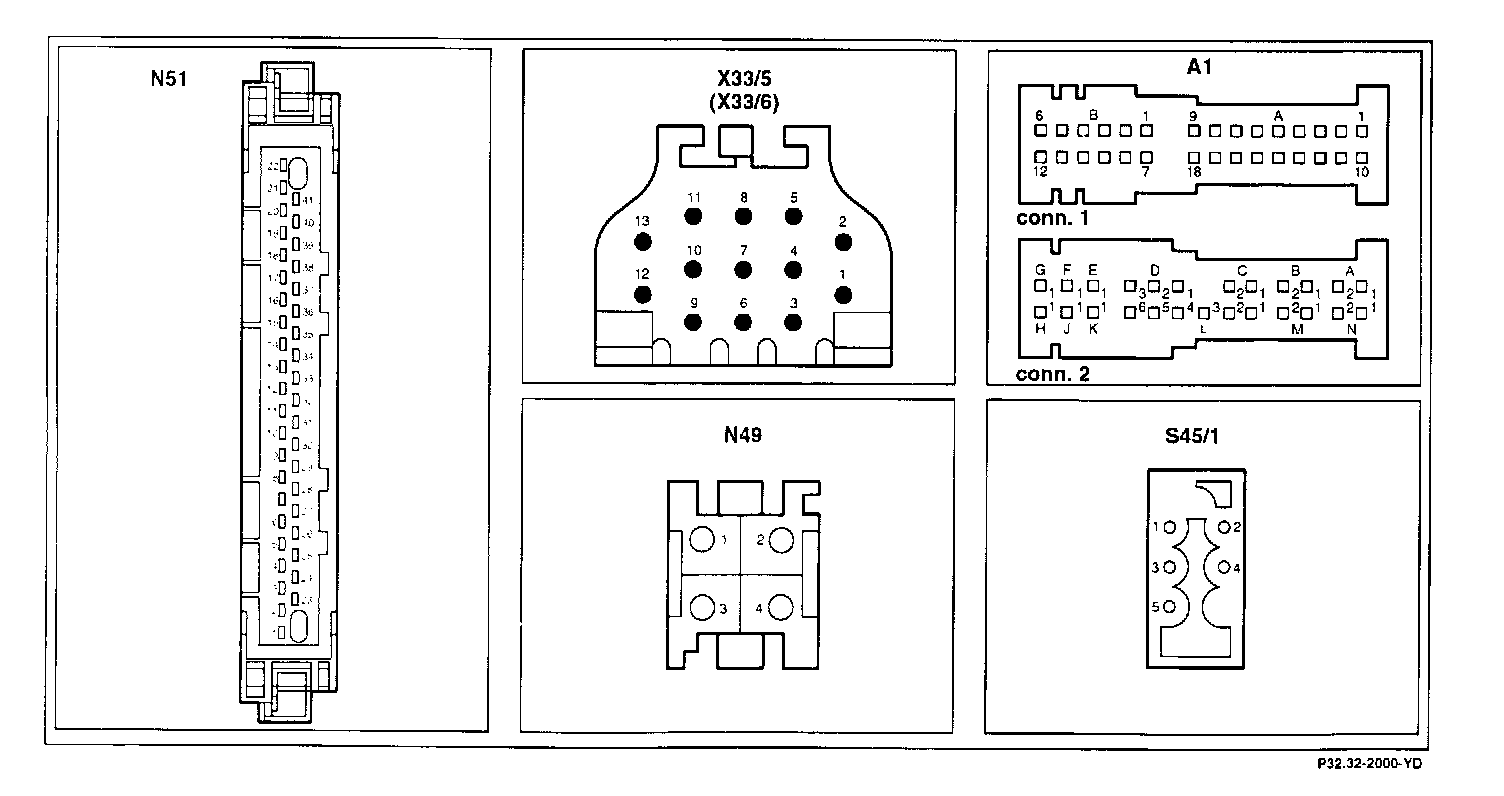

Connector Assignment:

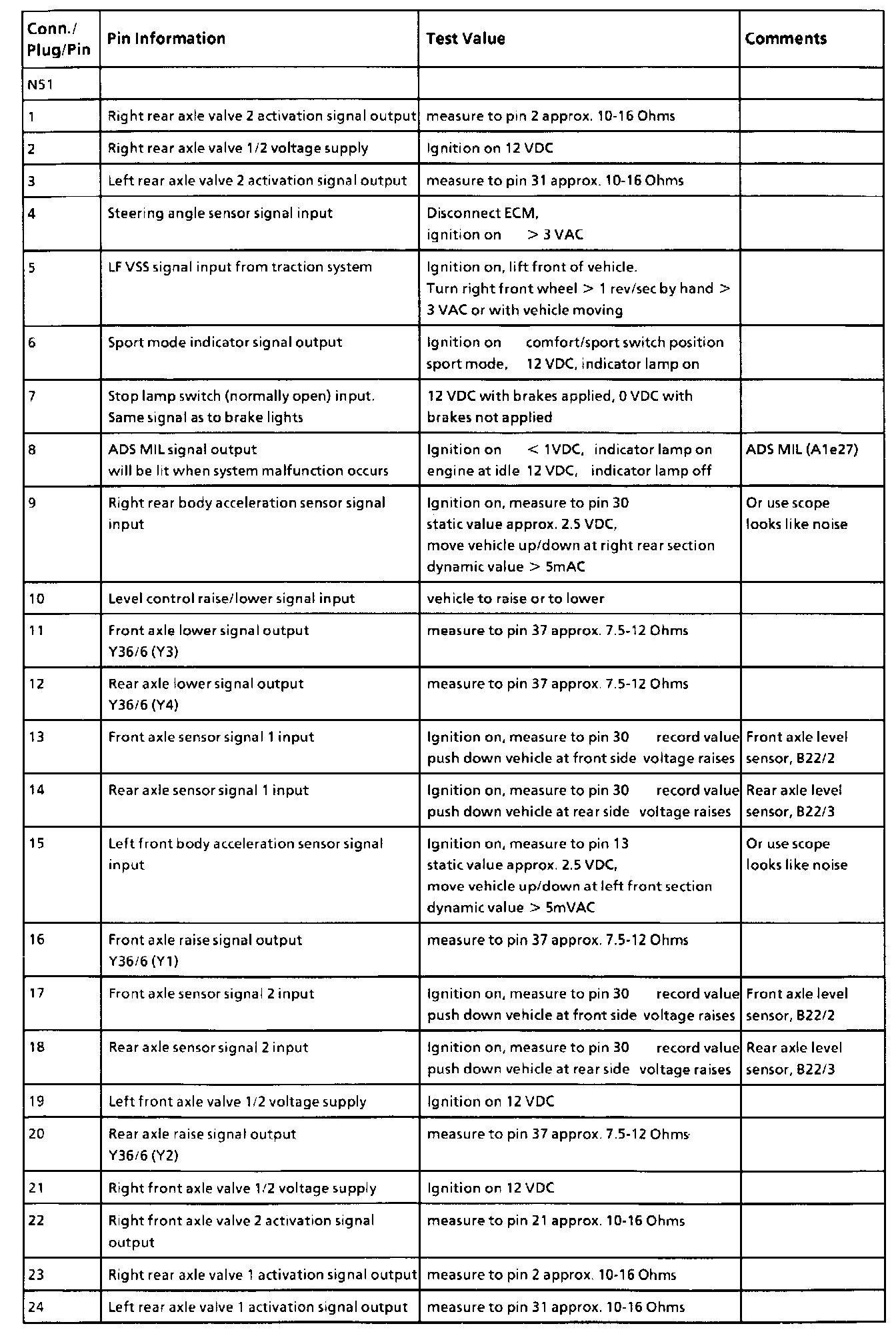

Pin Information, Part 1:
Pin Information, Part 2:
