System Diagram
Starter, Generator PE15.00-U-2000YI

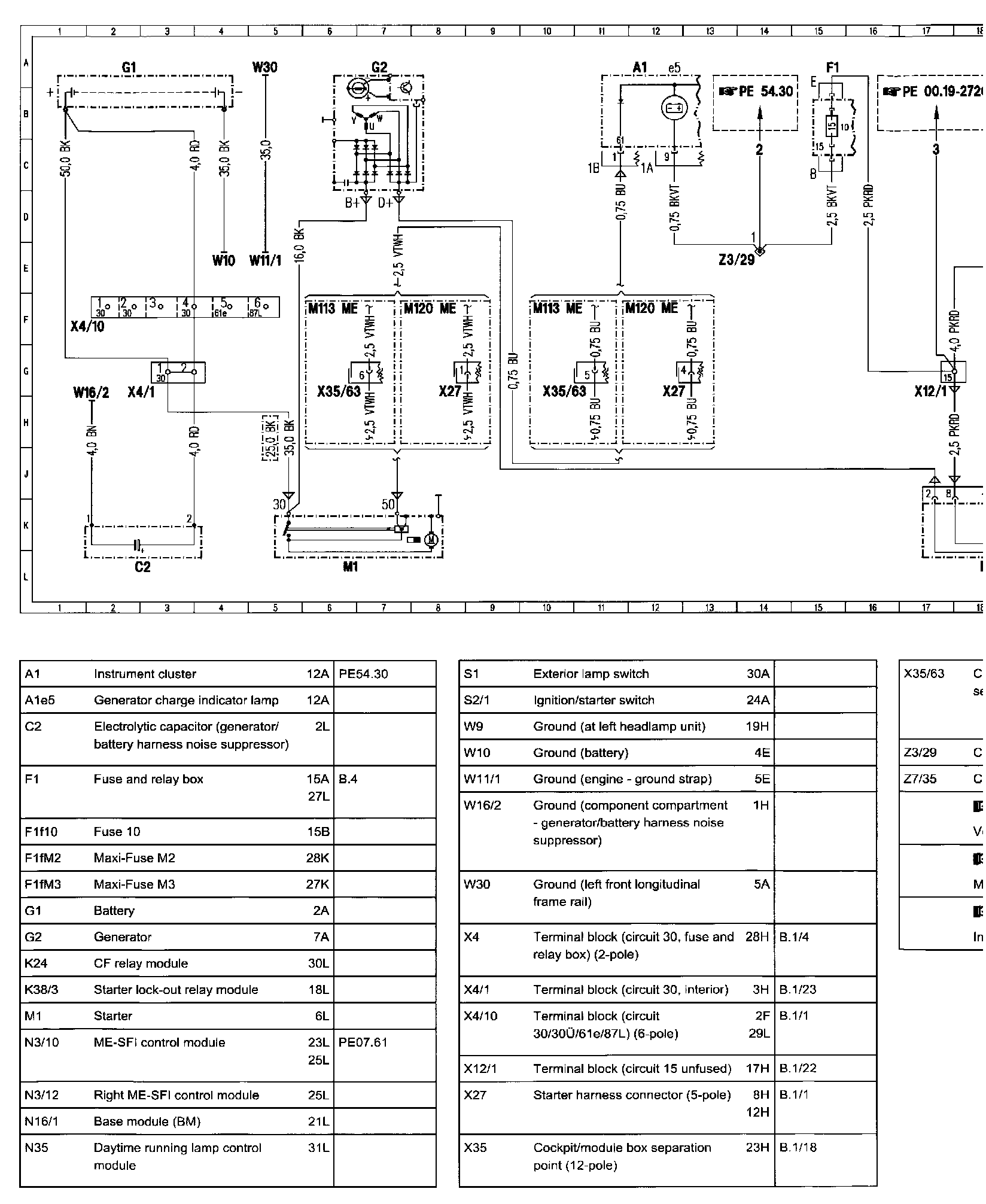

Wiring Diagram
� �(PE15.00-U-2000YI - Starter, Generator:

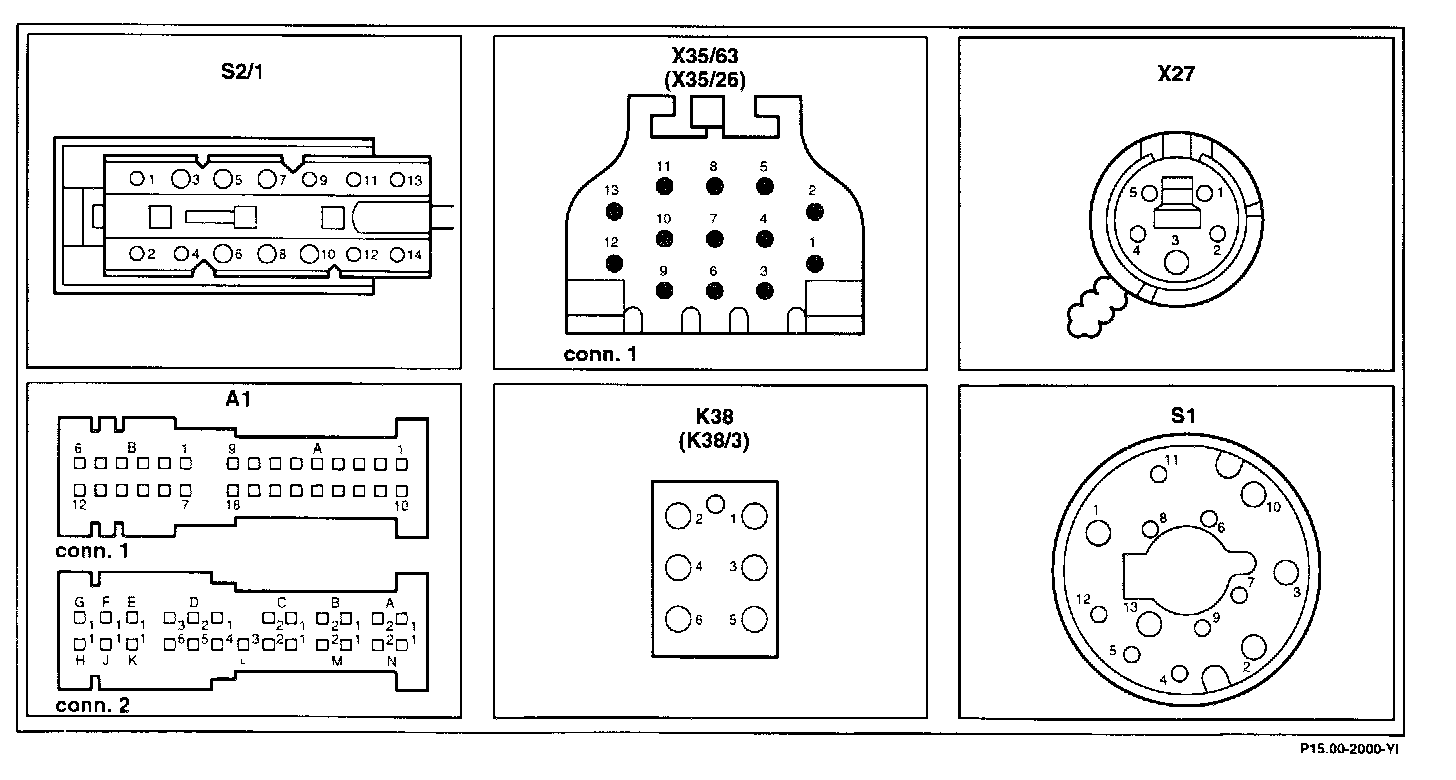

Connector Assignment:

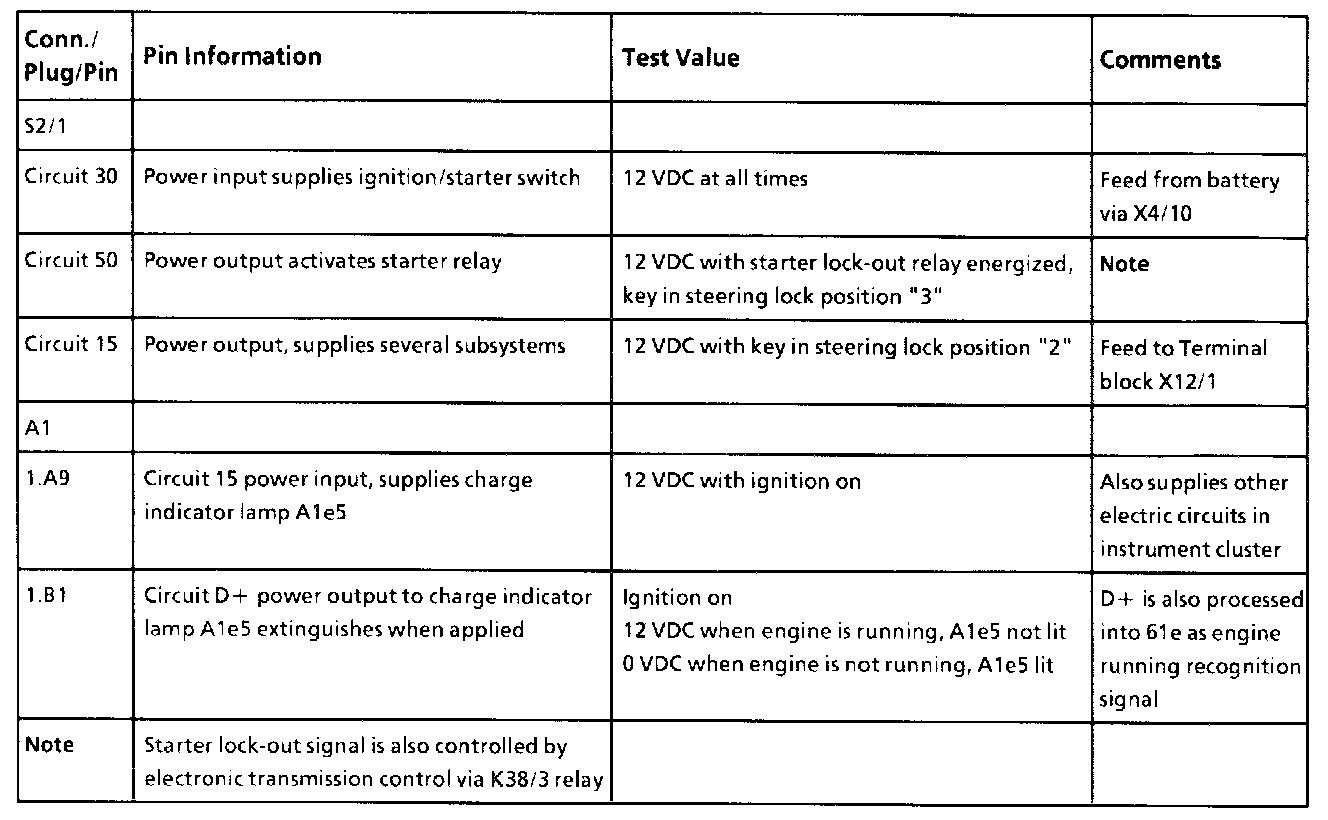

Pin Information:
All values measured to ground unless otherwise noted.
Starter, Generator PE15.00-U-2000YI
Wiring Diagram
All values measured to ground unless otherwise noted.
