Mercedes Benz
>>
2000
>>
SL 500 (129.068) V8-5.0L (113.961)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
System Diagram
>>
Circuit 30 Wiring PE00.19-U-2710YD
Circuit 30 Wiring PE00.19-U-2710YD

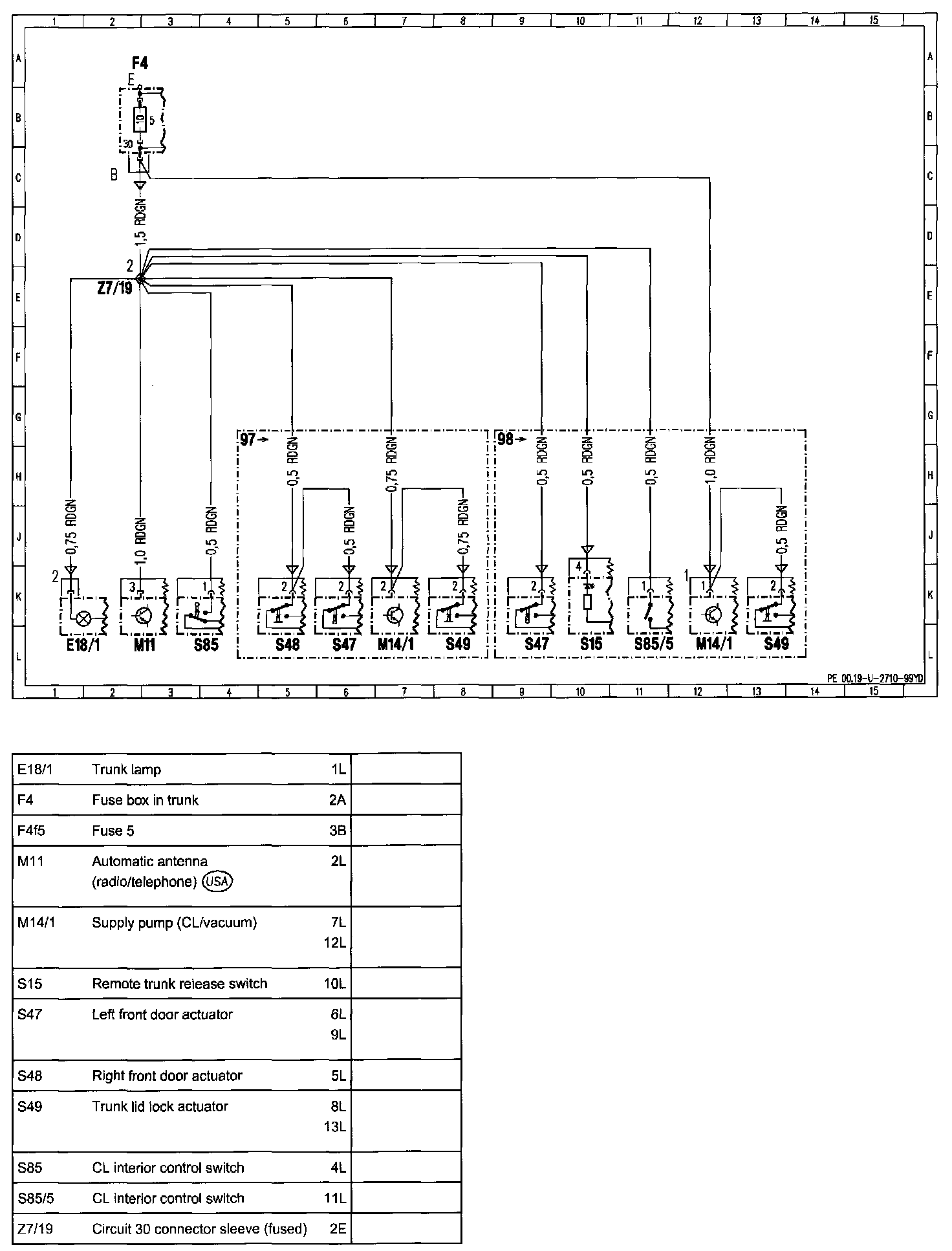

Circuit 30 Wiring (Voltage Distribution Via Fuse F4)
PE00.19-U-2710YD:

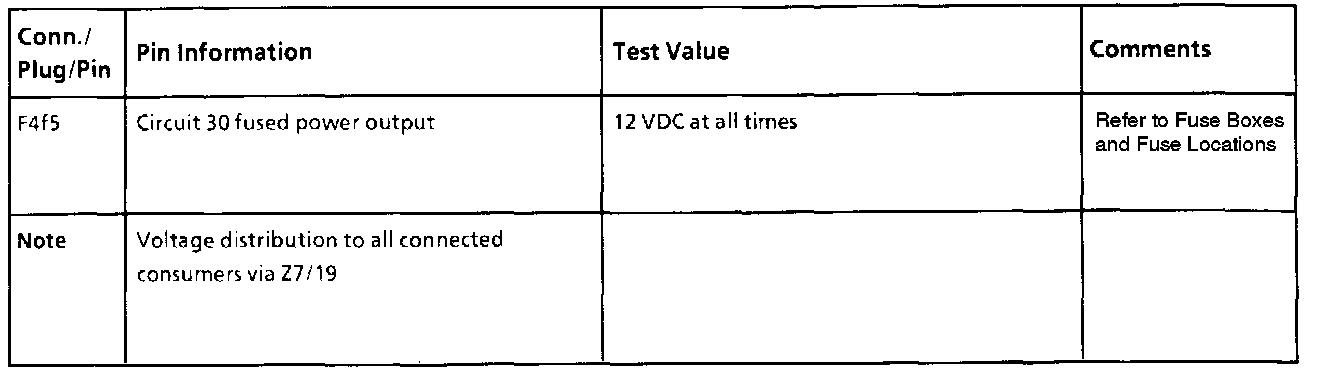

Pin Information:
