Seatbelt Warning Device PE91.40-U-2100YB

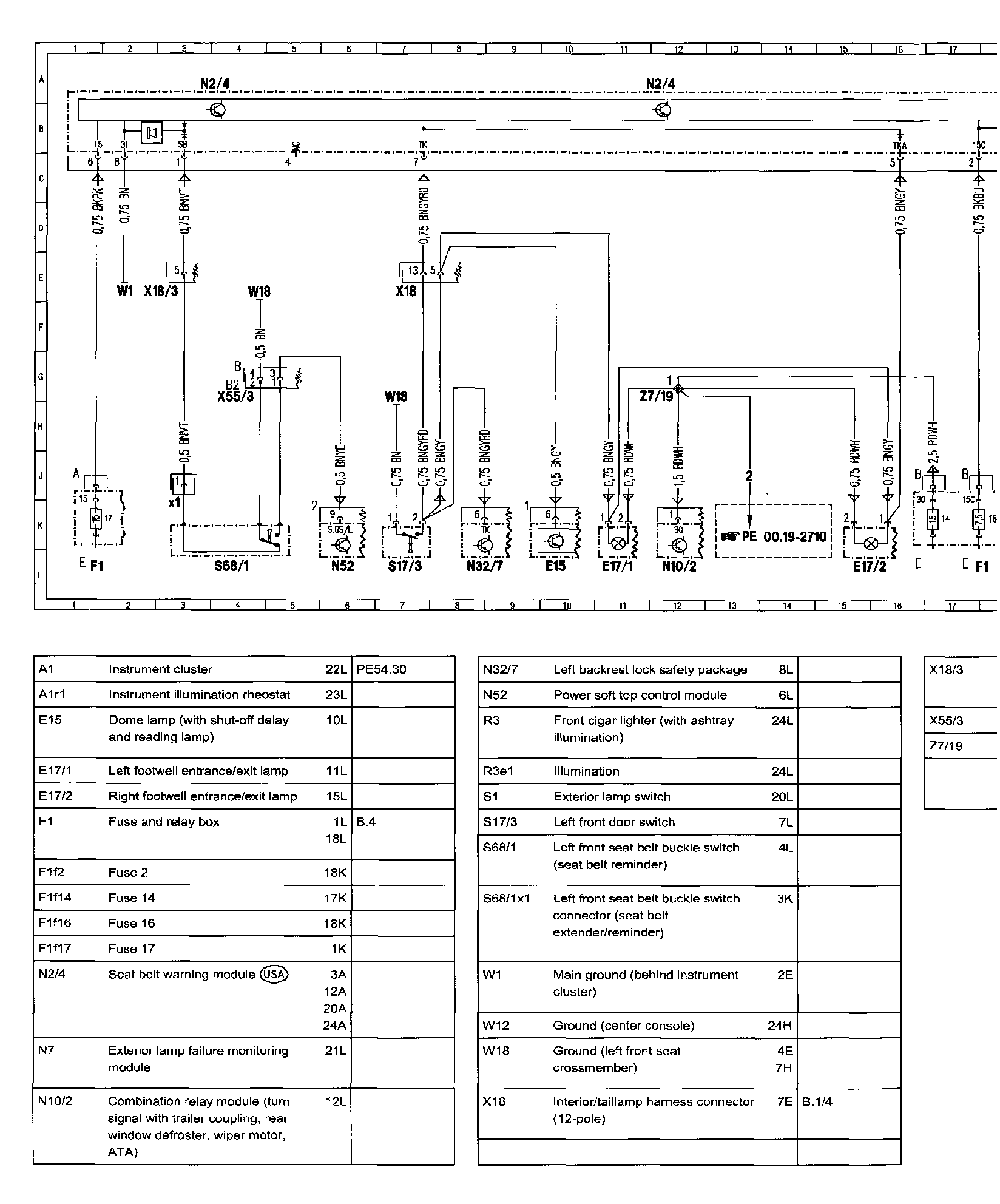

Seatbelt Warning Device



��6PE91.40-U-2100YB:

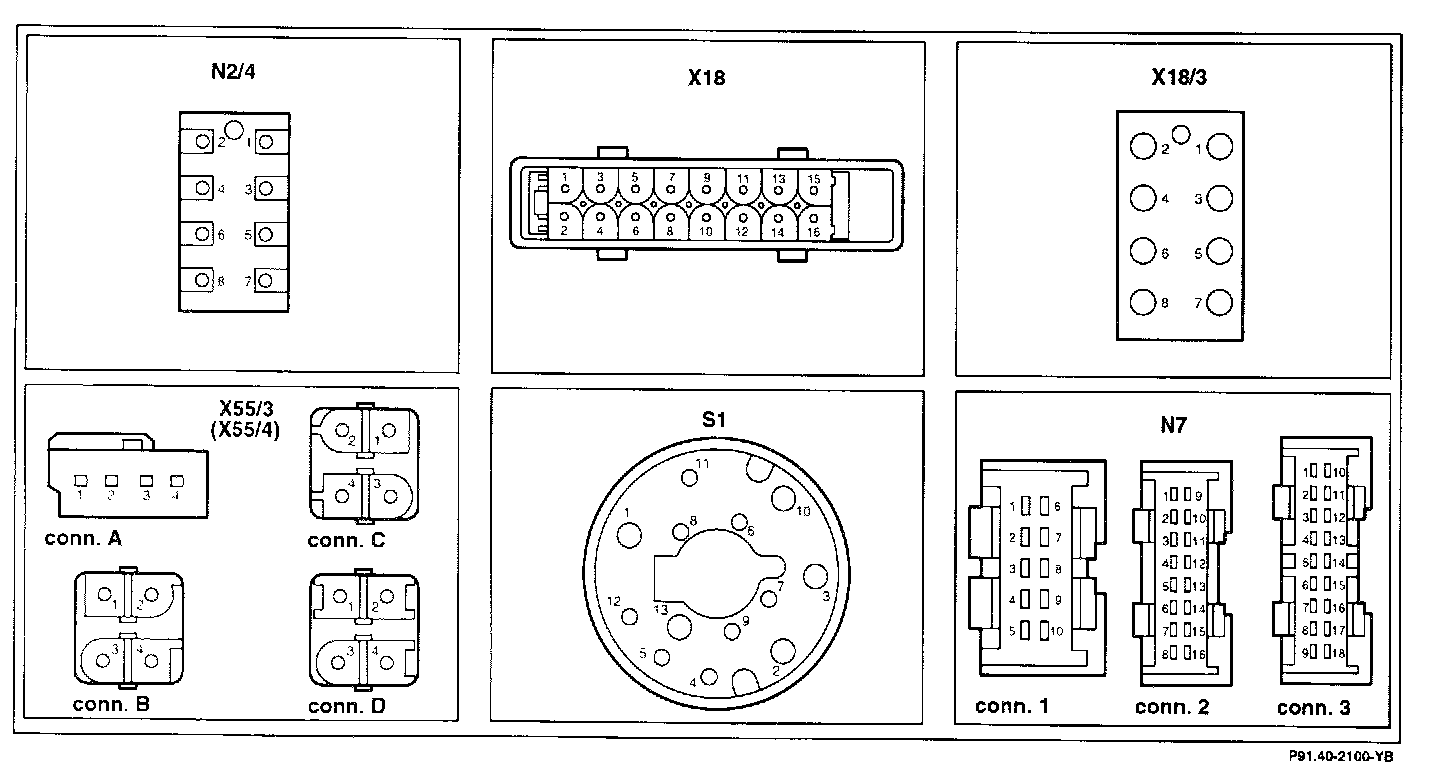

Connector Assignment:

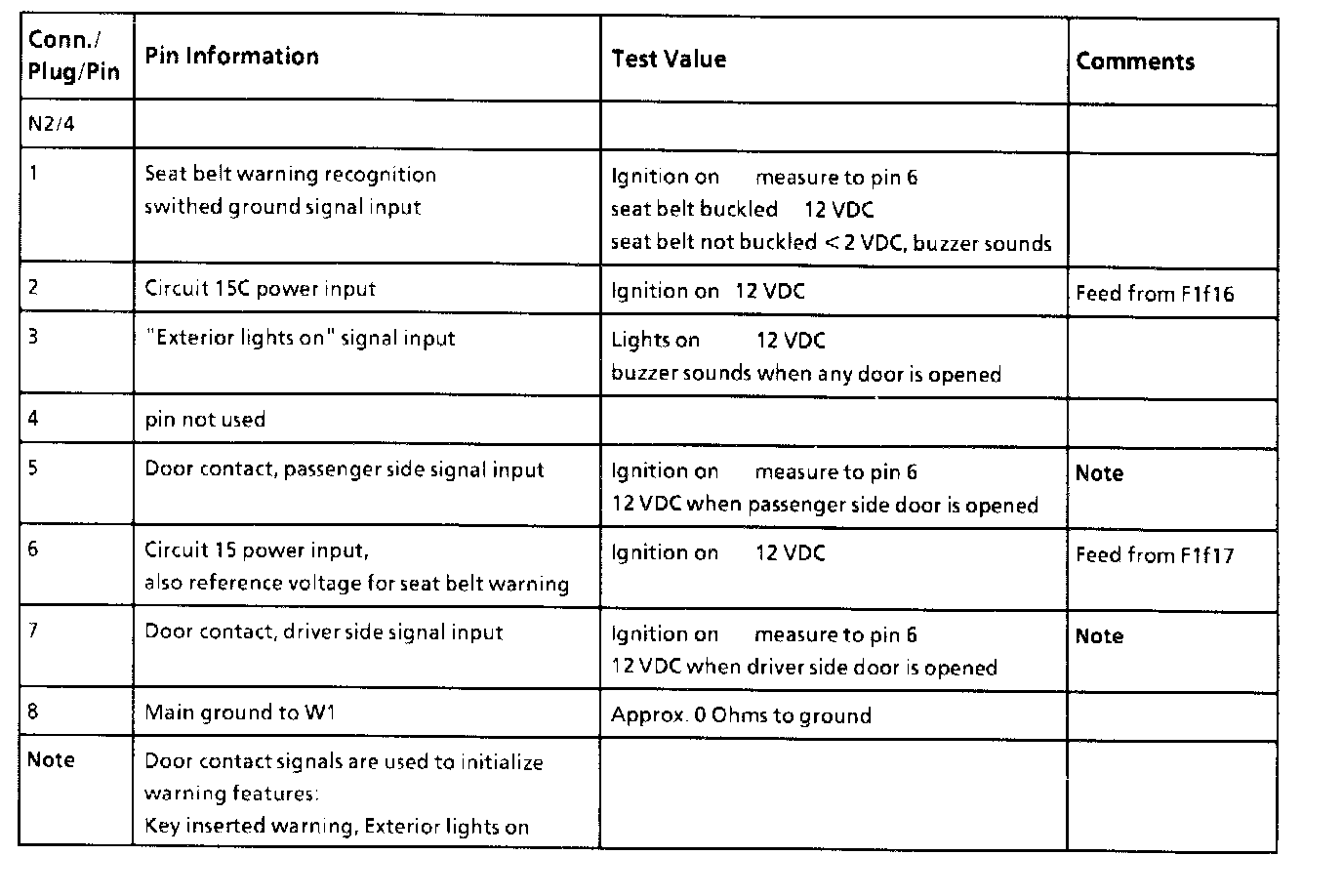

Pin Information:
