Airbag Control Module PE91.60-U-2000YD
Airbag Control Module PE91.60-U-2000YD
Airbags

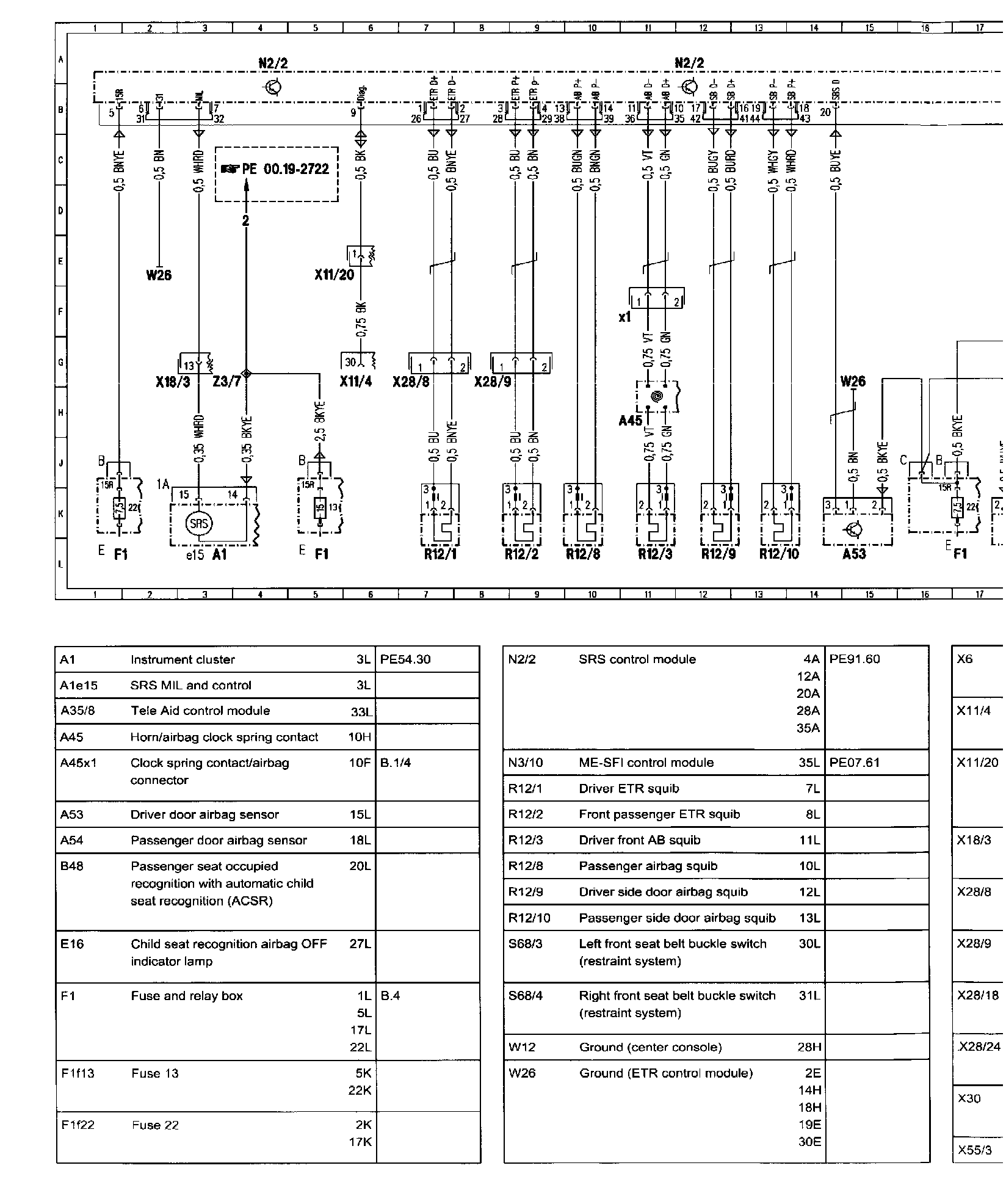

�g�6<��6Airbag PE91.60-U-2000YD:

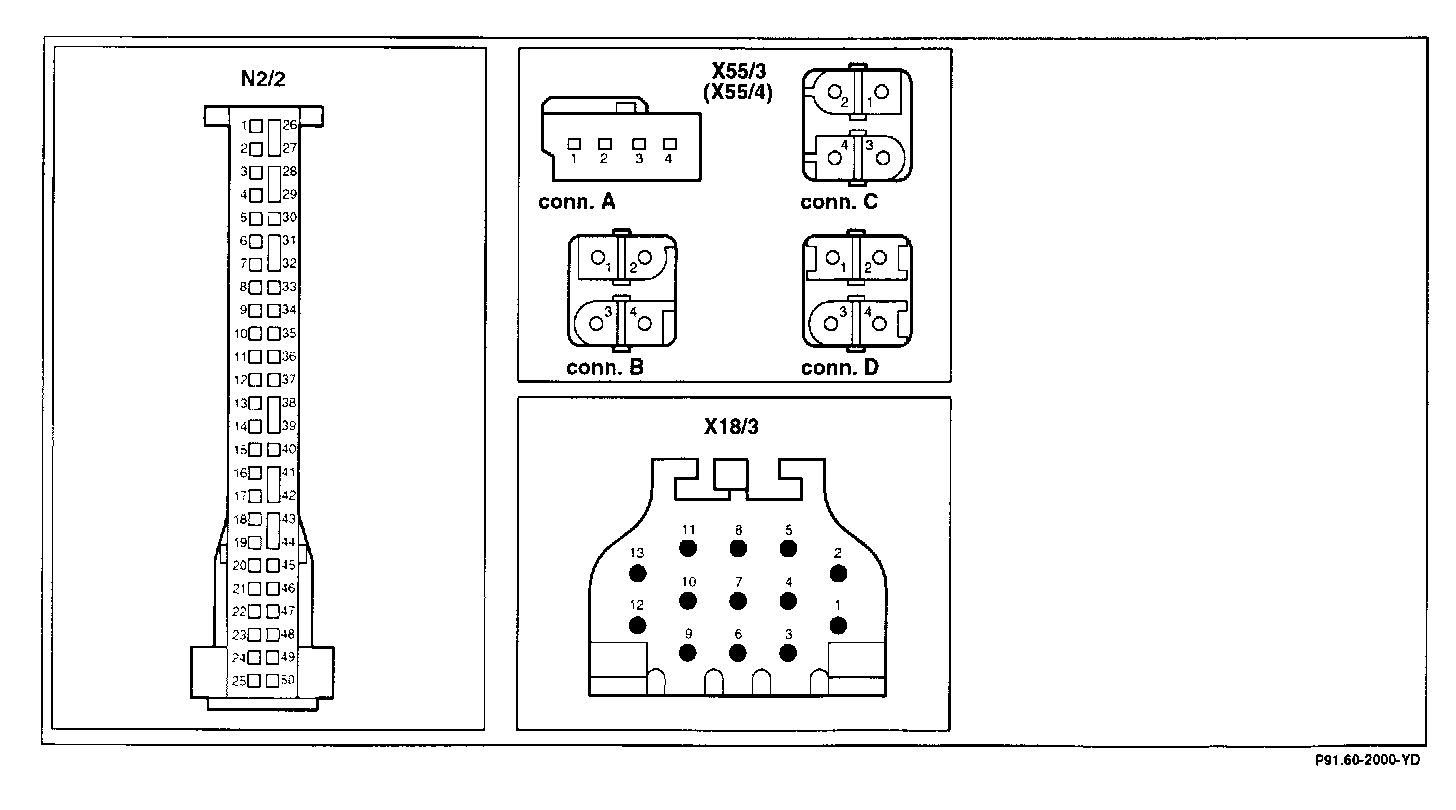

Connector Assignment:

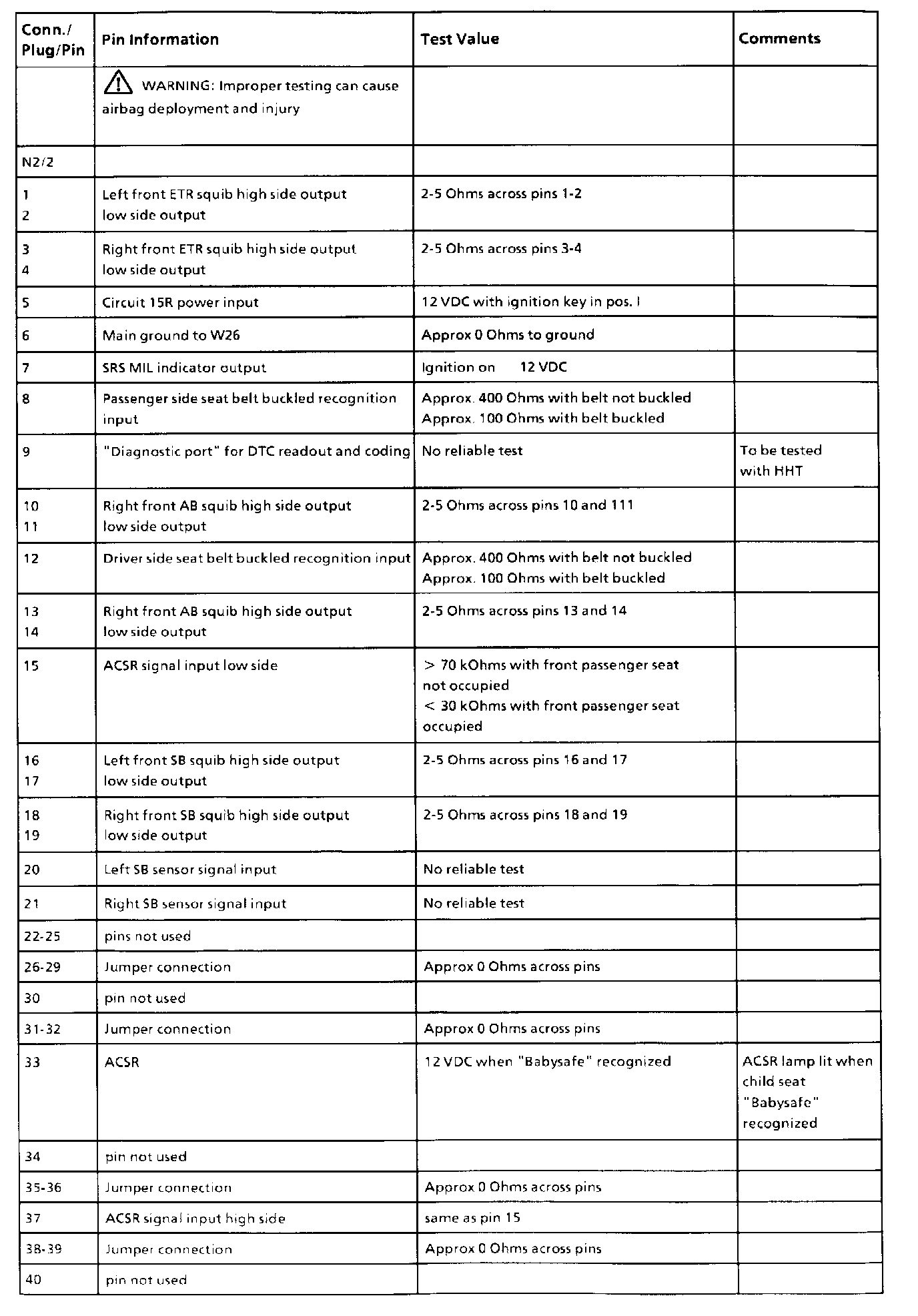

Pin Information, Part 1:
Pin Information, Part 2:
