Daytime Running Lamps PE82.10-U-2100YB (CANADA ONLY)
Daytime Running Lamps PE82.10-U-2100YB (CANADA ONLY)

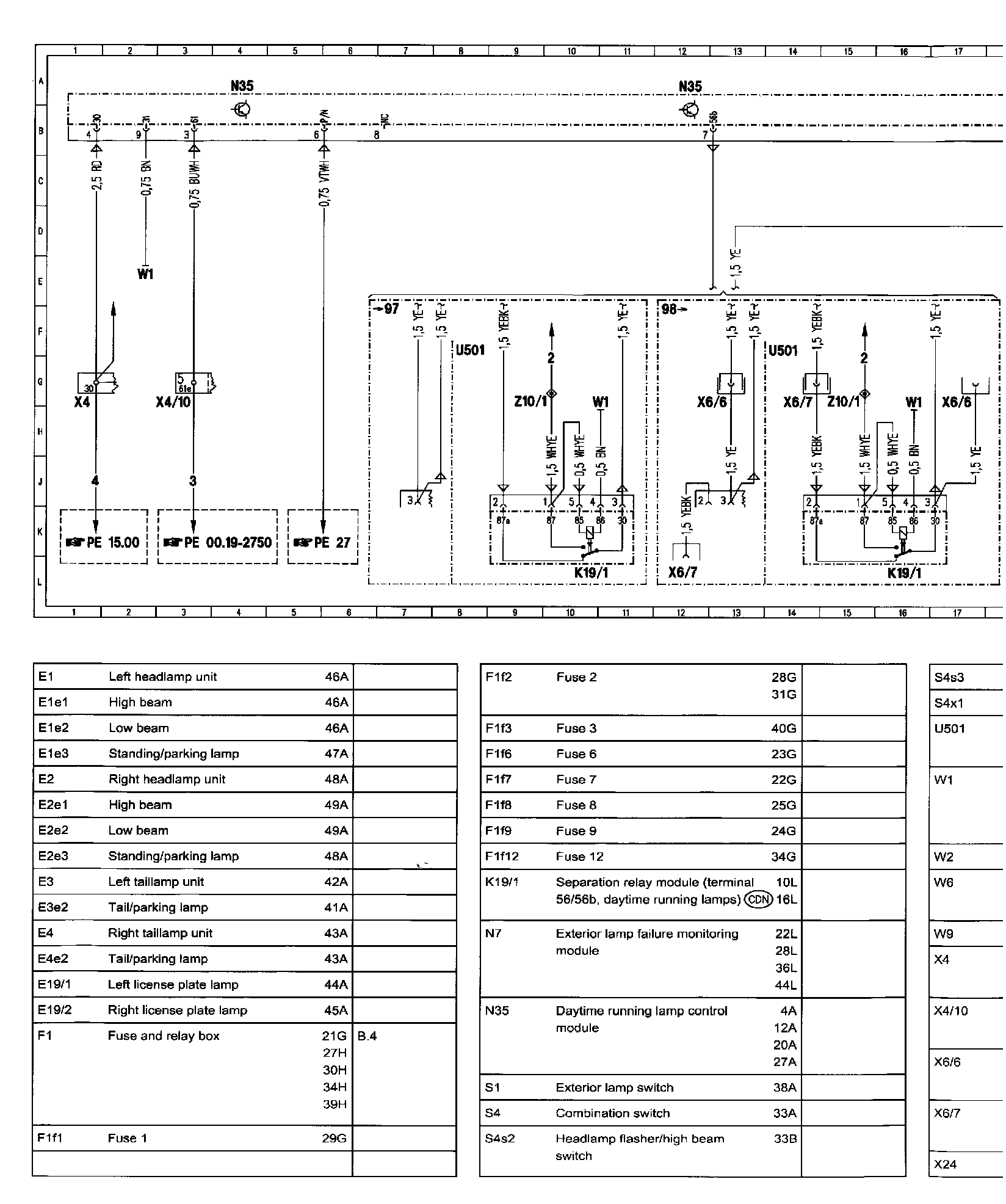

Daytime Running Lamps (Canada Only)
J�ZR Z�/ ZPE82.10-U-2100YB:

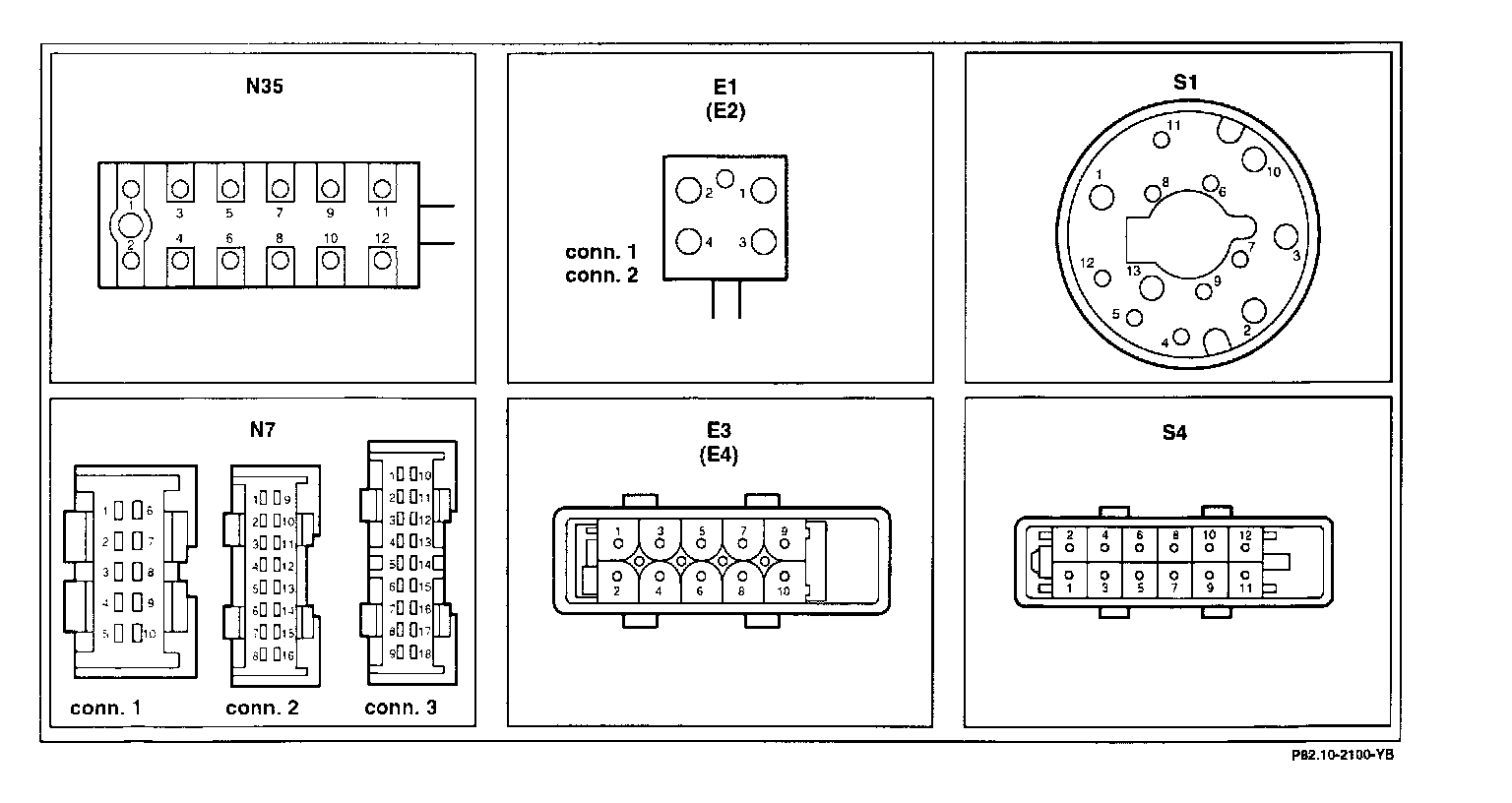

Connector Assignment:

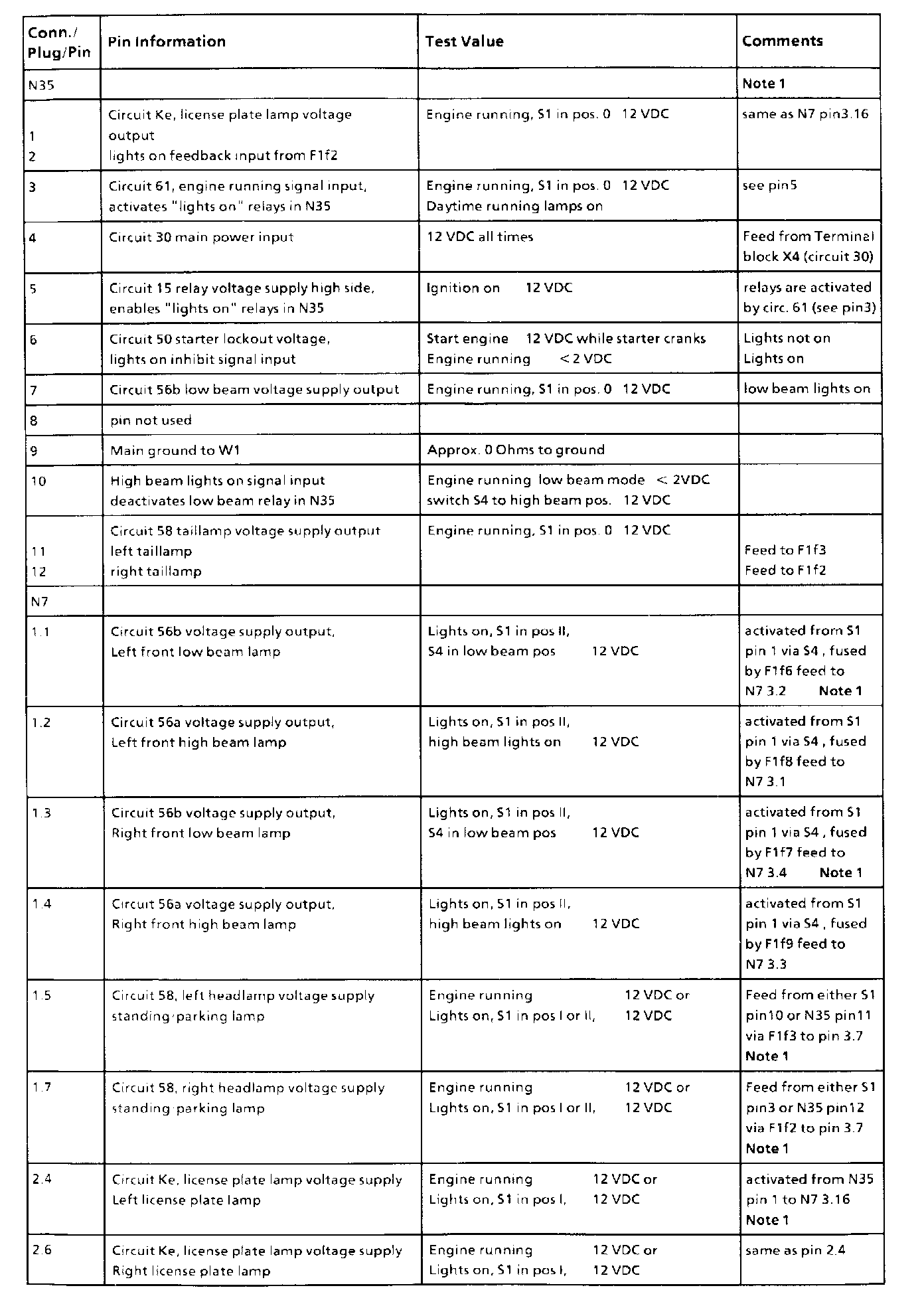

Pin Information, Part 1:
Pin Information, Part 2:
