Electronic Stability Program and SPS [13]

Electronic Stability Program (ESP) and Speed-Sensitive Power Steering (SPS)

Model 129 (with engine 113) as of MY 1999
Model 202, 208 as of MY 1998 (ESP, BAS and SPS)
Model 210 (with engine 112, 113, 606) as of MY 1998

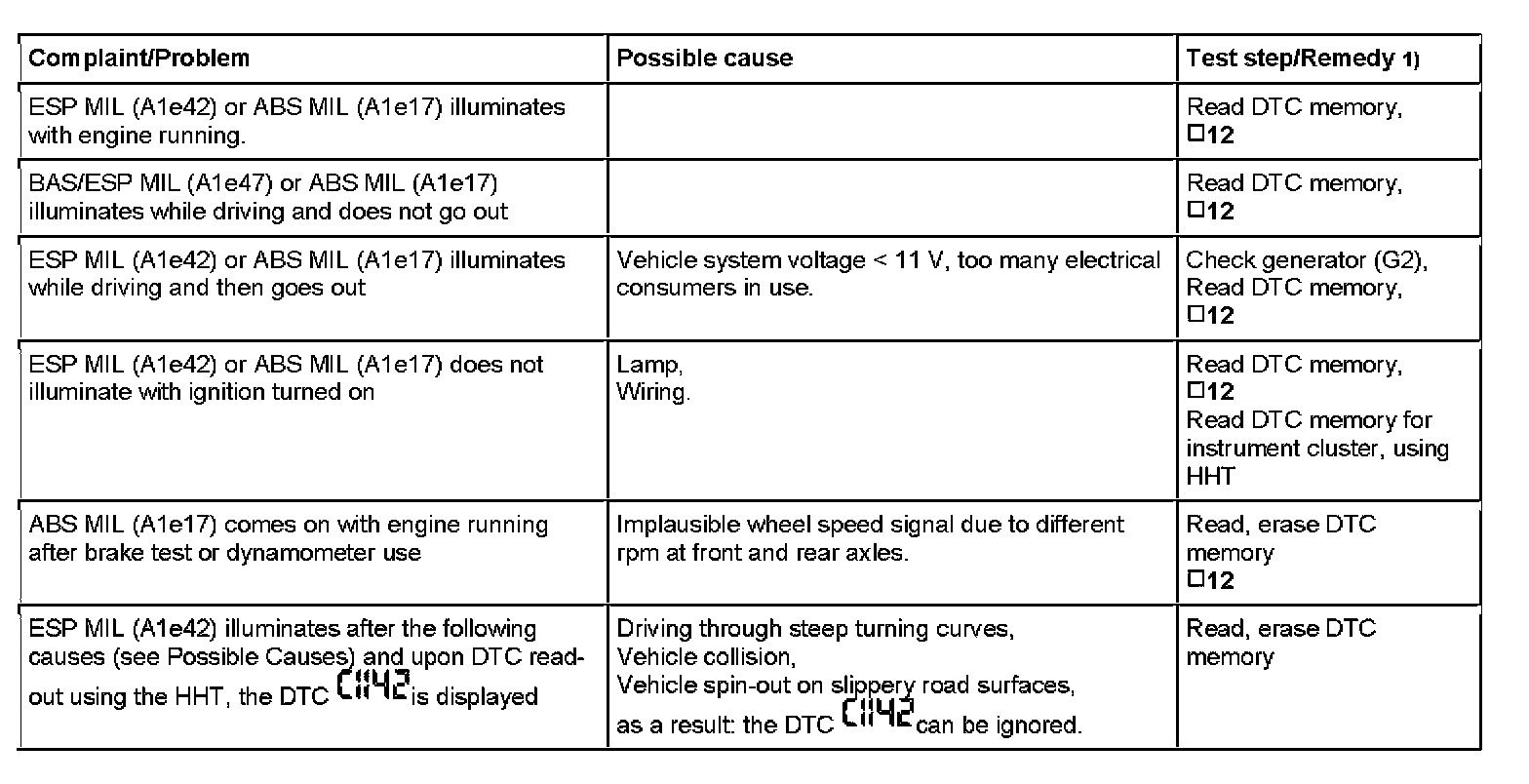

Complaint Related Diagnostic Chart [13]

Warning Life threatening injures possible due to vehicle slipping or toppling off while on lift. Prior to lift vehicle completely (wheels still in contact with floor), ensure that the vehicle is centered within the lift columns and lift arm supports are correctly placed unto the vehicle contact points.

Preparation for Test:
1. Review section [0], [13], [21], [22], [23]

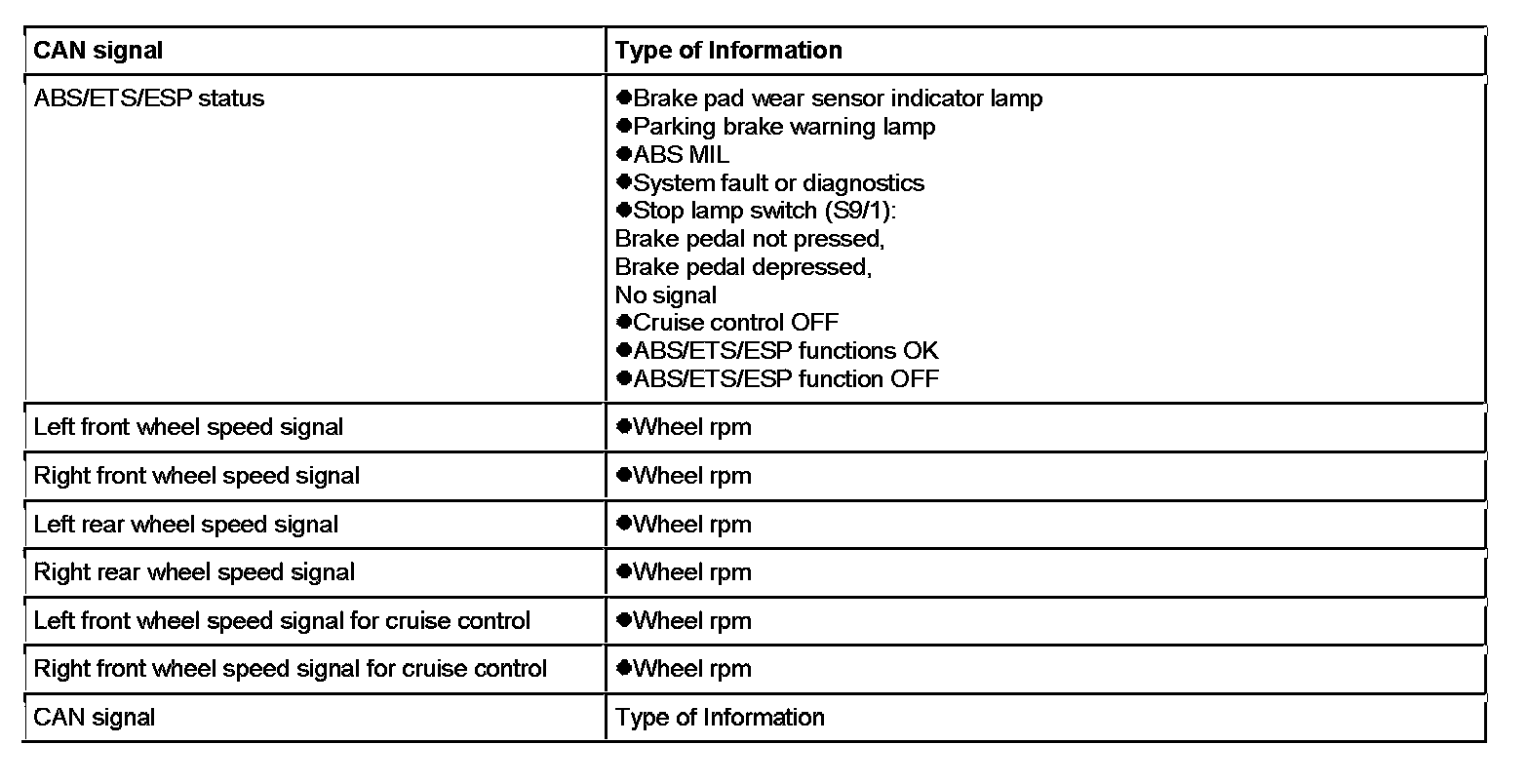

2. Review Important Data Charts below.
