77-415 Remove/Install, Adjust Limit Switch, Top Up (Differential Operation)

77-415 Removal, Installation And Adjustment Of Limit Switch, Top Up (differential Operation)

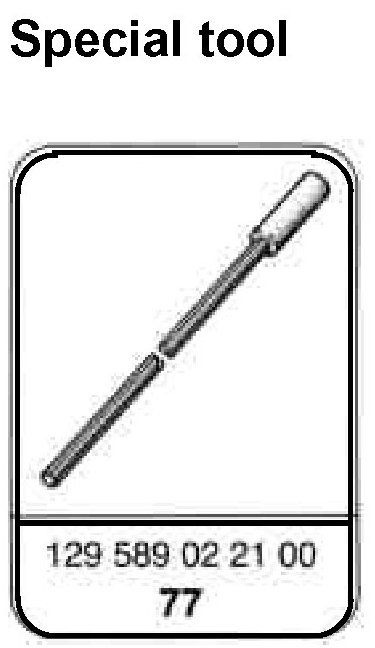

Special Tool:

Adjustment

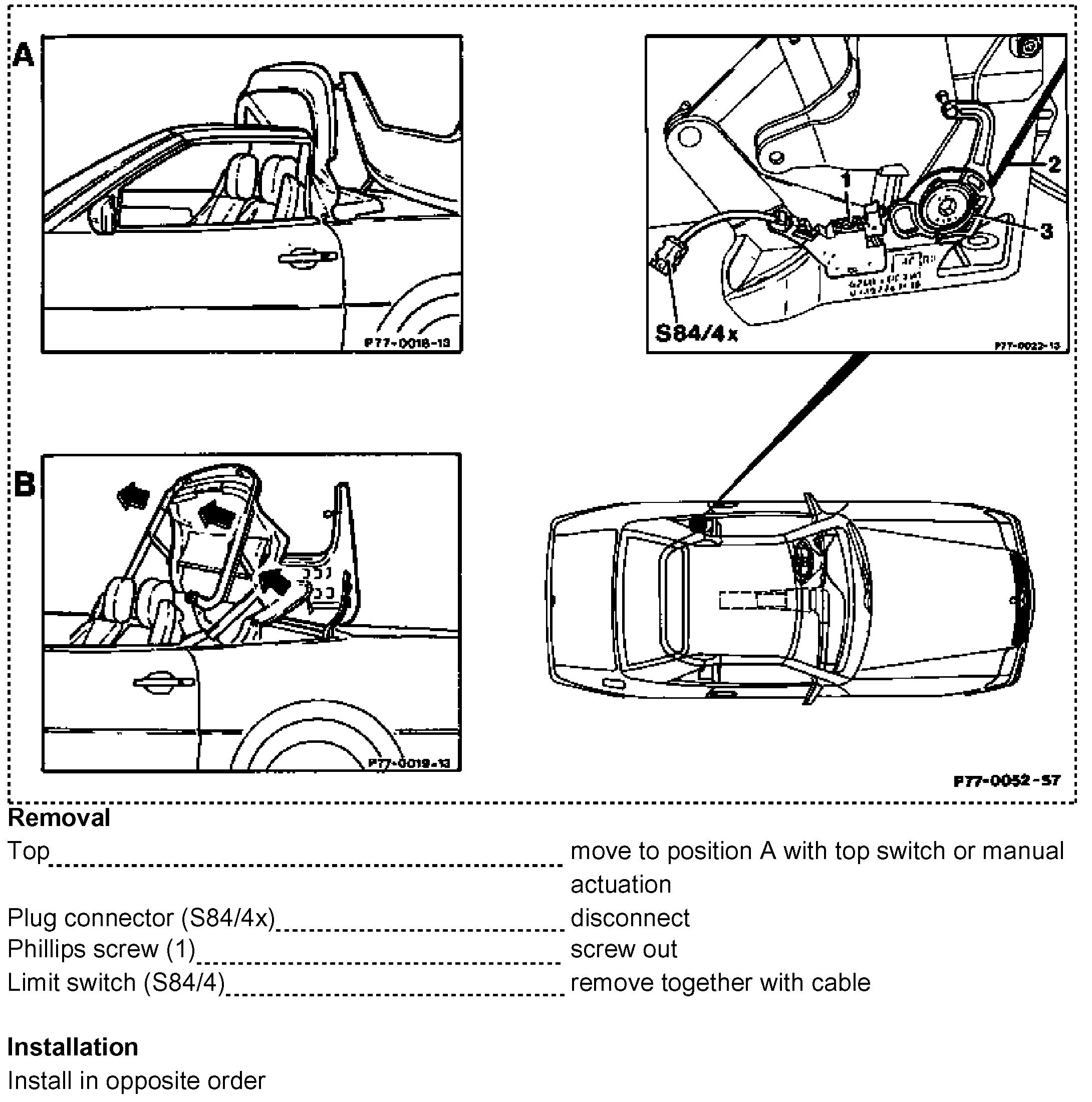

Move top to position B with top switch or manual actuation until screw (3) can be adjusted with special tool (2).
The top should switch over to differential operation (top moves more slowly), when the top frame has passed the highest point (approx. 500 mm in front of front locks).
Turn screw (3) to right:
Top switches over to differential operation later
Turn screw (3) to left:
Top switches over to differential operation earlier
