Home >> Mercedes Benz >> 2000 >> SL 500 (129.068) V8-5.0L (113.961) >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Component Tests and General Diagnostics >> Electrical Seat Adjustment (ESA) >> ETP - Electrical Test Program >> Test Steps >> Right Seat >> ETP Test Steps 7.0 and 8.0

ETP Test Steps 7.0 and 8.0

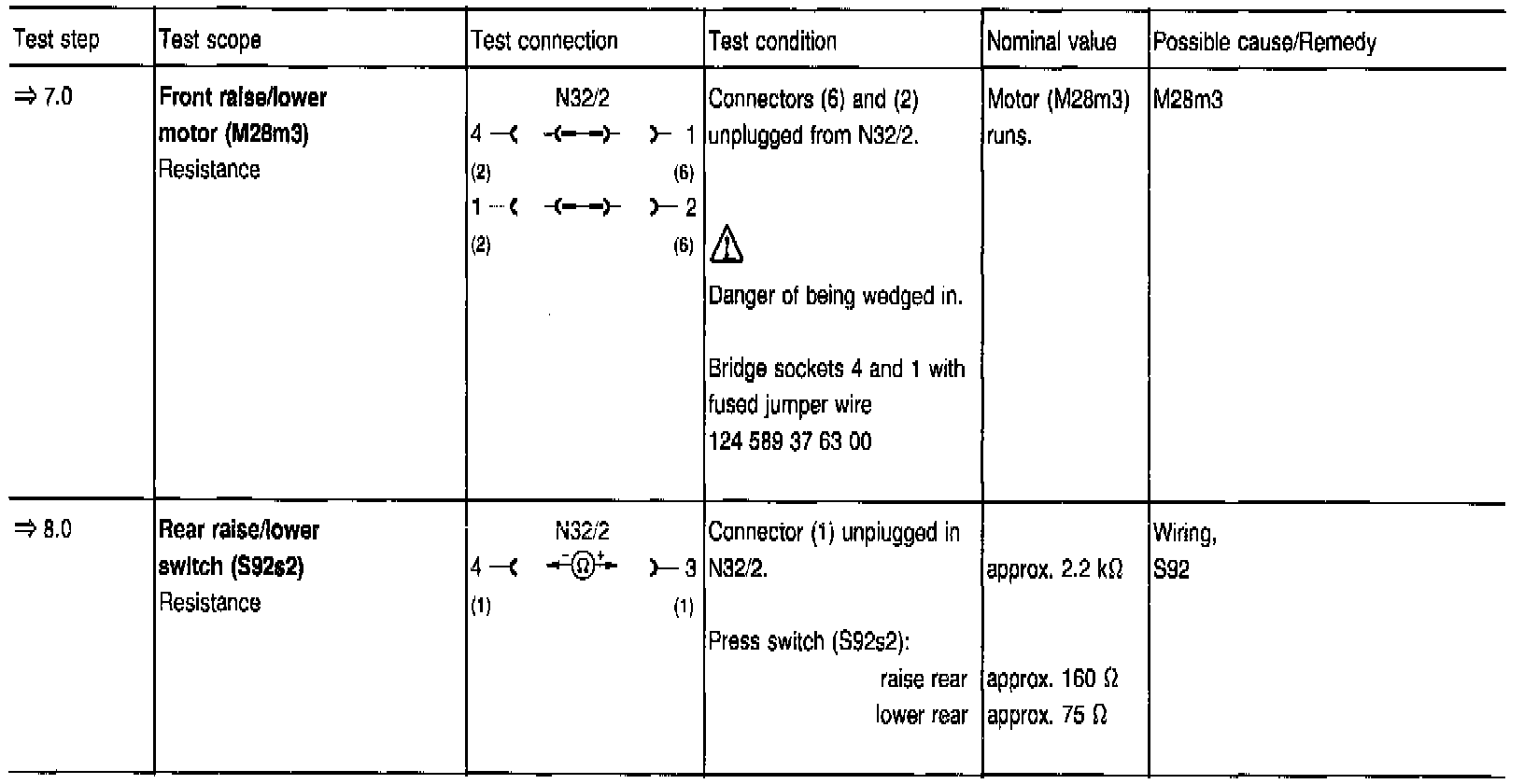

Steps 7.0 & 8.0:
