Home >> Mercedes Benz >> 2000 >> SL 500 (129.068) V8-5.0L (113.961) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Hard Top >> Service and Repair >> Removal and Replacement >> AR68.50-P-0200C Remove/Install Sun Shade on Glass Roof

AR68.50-P-0200C Remove/Install Sun Shade on Glass Roof



AR68.50-P-0200C Removing And Installing Sun Shade On Glass Roof
- with CODE (415a) Glass roof

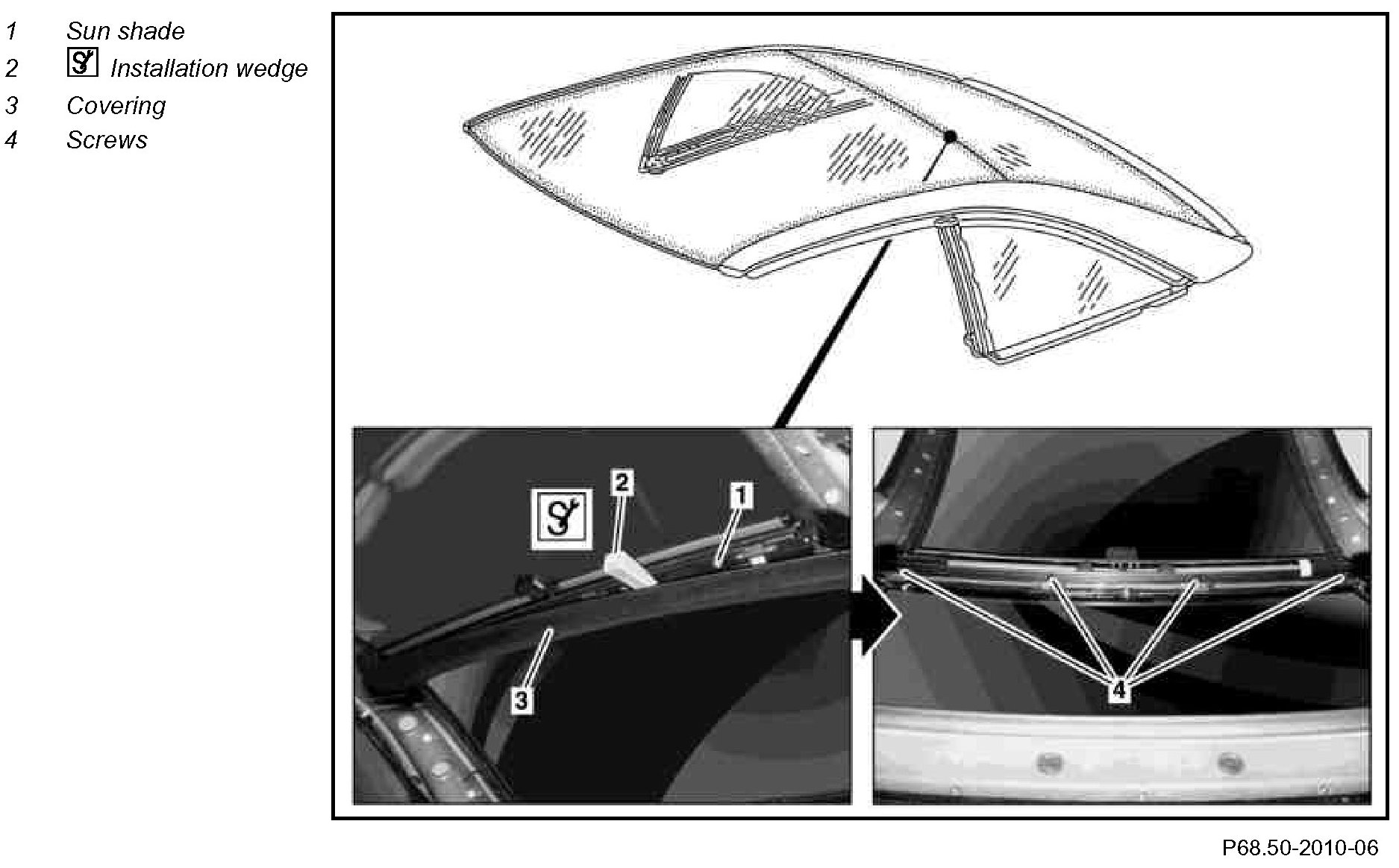

Component Identification:

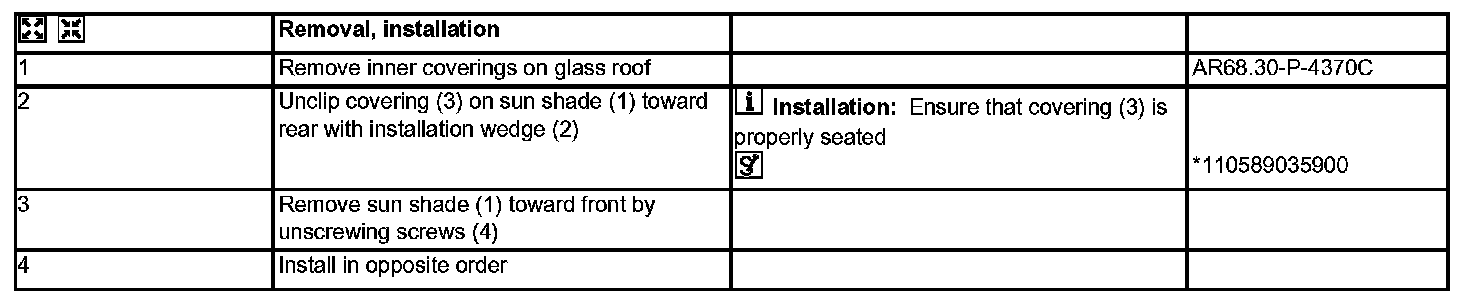

Steps 1 - 4:

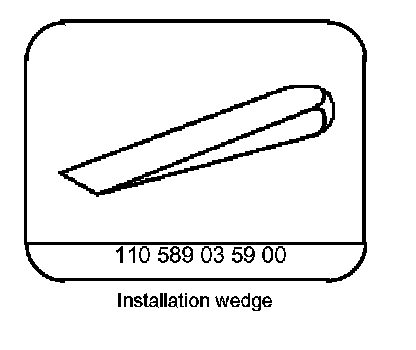

Special Tool:
