Removal & Installation of Hydraulic Cylinders For Rear Catches

Removal & Installation of Hydraulic Cylinders For Rear Catches

Preliminary jobs:
Remove catches Service and Repair

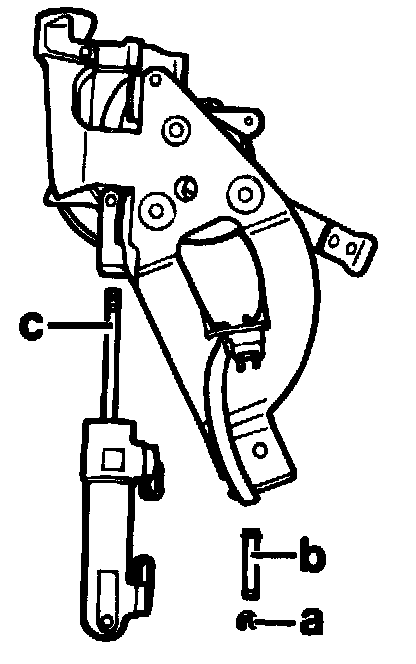

Retainer (a) press off with screwdriver
Bolt (b) pull out
Piston rod (c) screw out of catch

Install in opposite order.
Check for proper function and leakage.

NOTE: When installing the hydraulic cylinders screw securing agent must be used.
