Removal & Installation of Hydraulic Cylinders For Front Catches

Removal & Installation of Hydraulic Cylinders For Front Catches

Preliminary jobs:
Remove catches Service and Repair

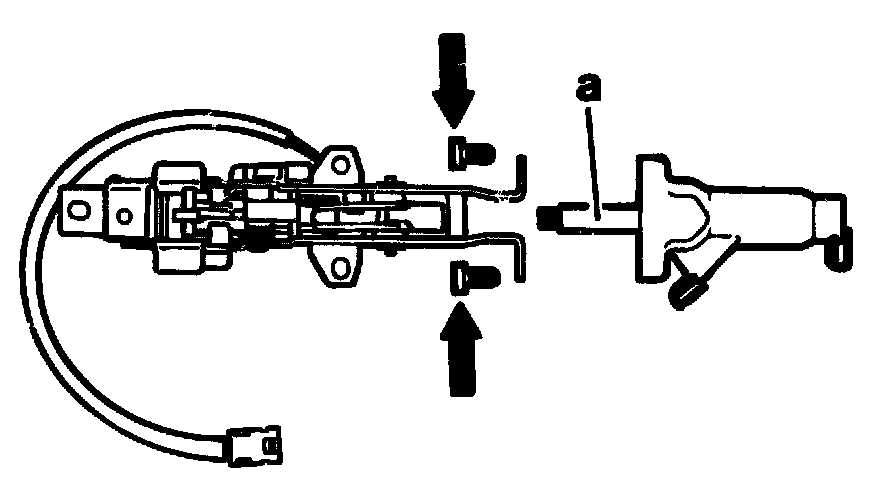

Screws (arrows, 2 each) screw out
Piston rod (a) screw out of catch

Install in opposite order.
Check for proper function and leakage.

NOTE: When installing the hydraulic cylinders screw-securing agent must be used.
