Function Test - Section 11
Function Test - Section 11
A. Multi-contour backrest
Preparation For Test:
1.
Ignition:
ON
2.
Battery voltage
11 - 14 V
,
3.
Check fuses OK.

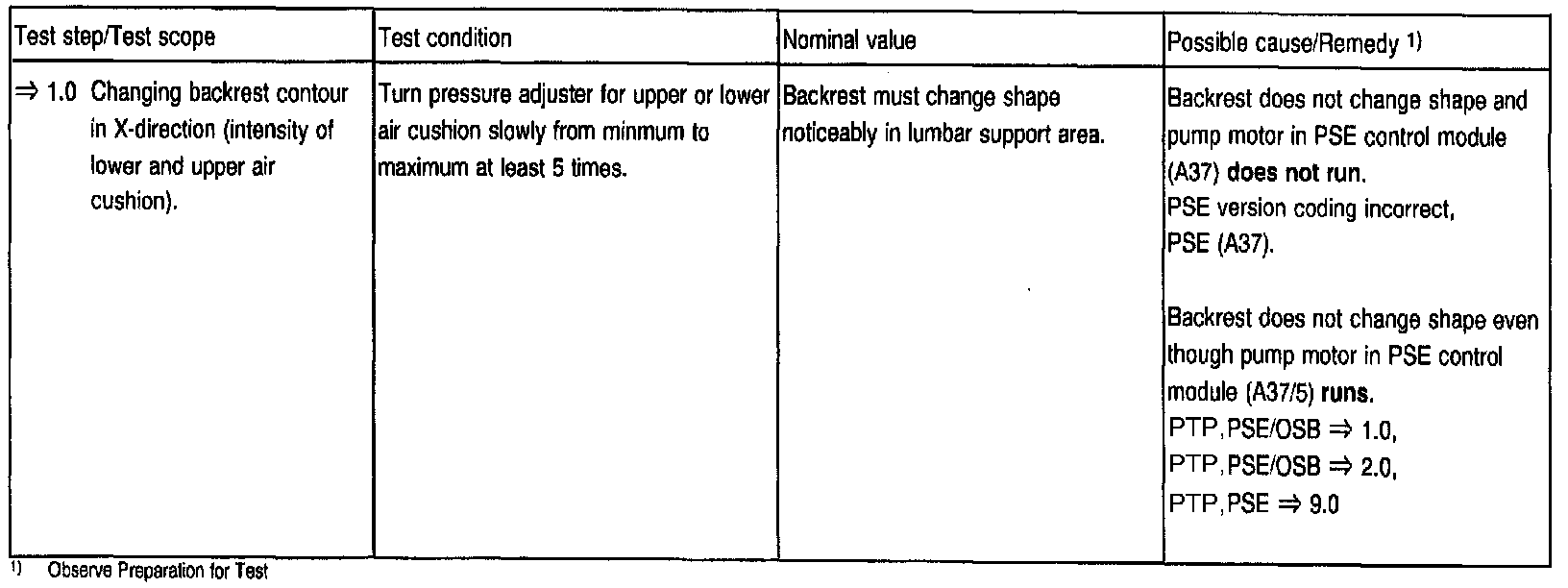

Test Step 1.0:
Test Steps 2.0 & 3.0:
