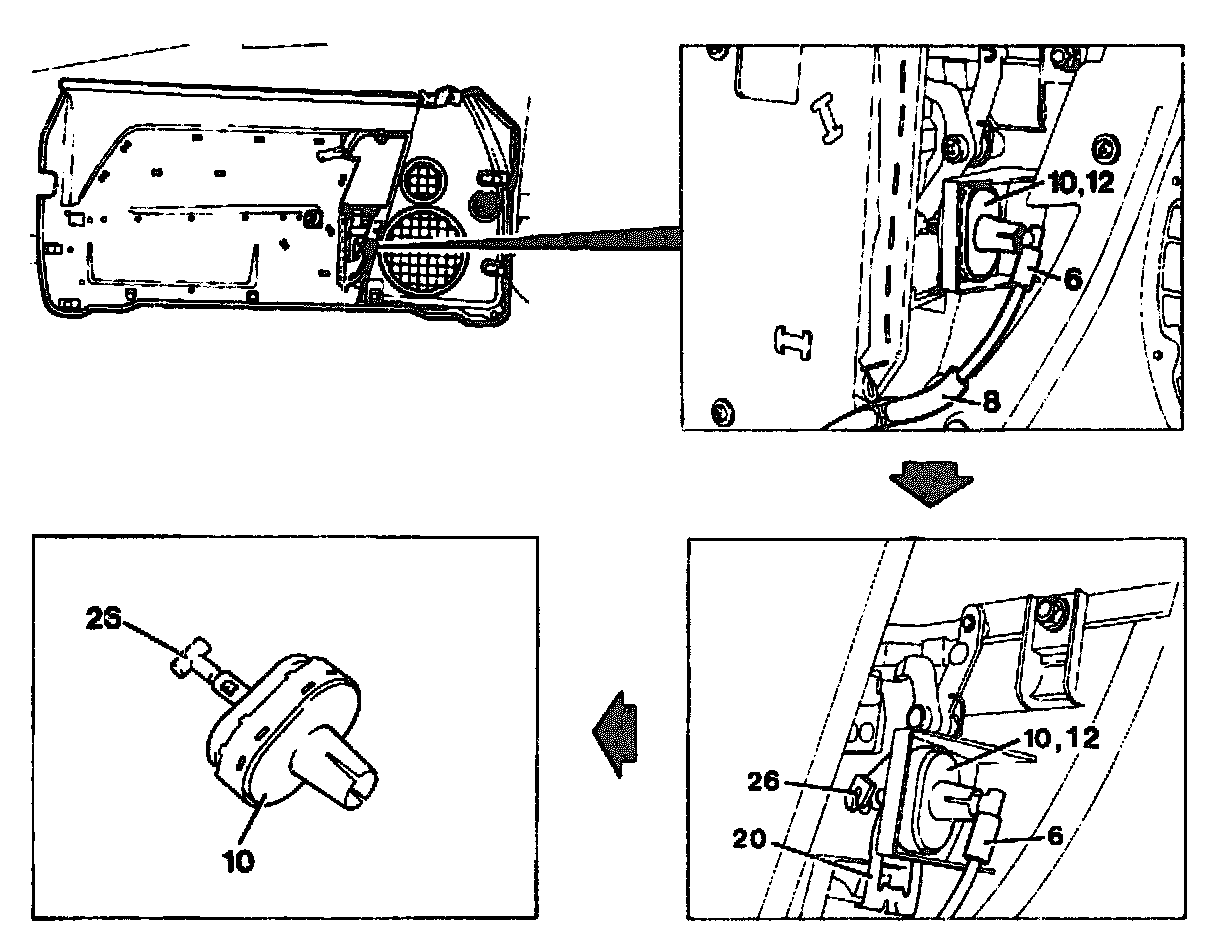

Front Pocket Actuator

Preliminary operation:
Checking the interior central locking for leaks.

NOTE: Front door pocket elements eliminated as of 09/95.






Door panelling
Remove. Removal and Replacement

Pneumatic line (6)
Lever off with open-end wrench (width between flats 7).

Spring clip (20)
Pull off downwards.

Connector (26)
Pull off.

Element (10 or 12)
Take out.

Pneumatic function of the element
Check. Testing and Inspection

In order to renew the link element (26)
Rebuild or renew.

Element
Install in reverse order.
