Cargo Cover Lock Actuator: Service and Repair

Preliminary operation:
Checking the interior central locking for leaks,

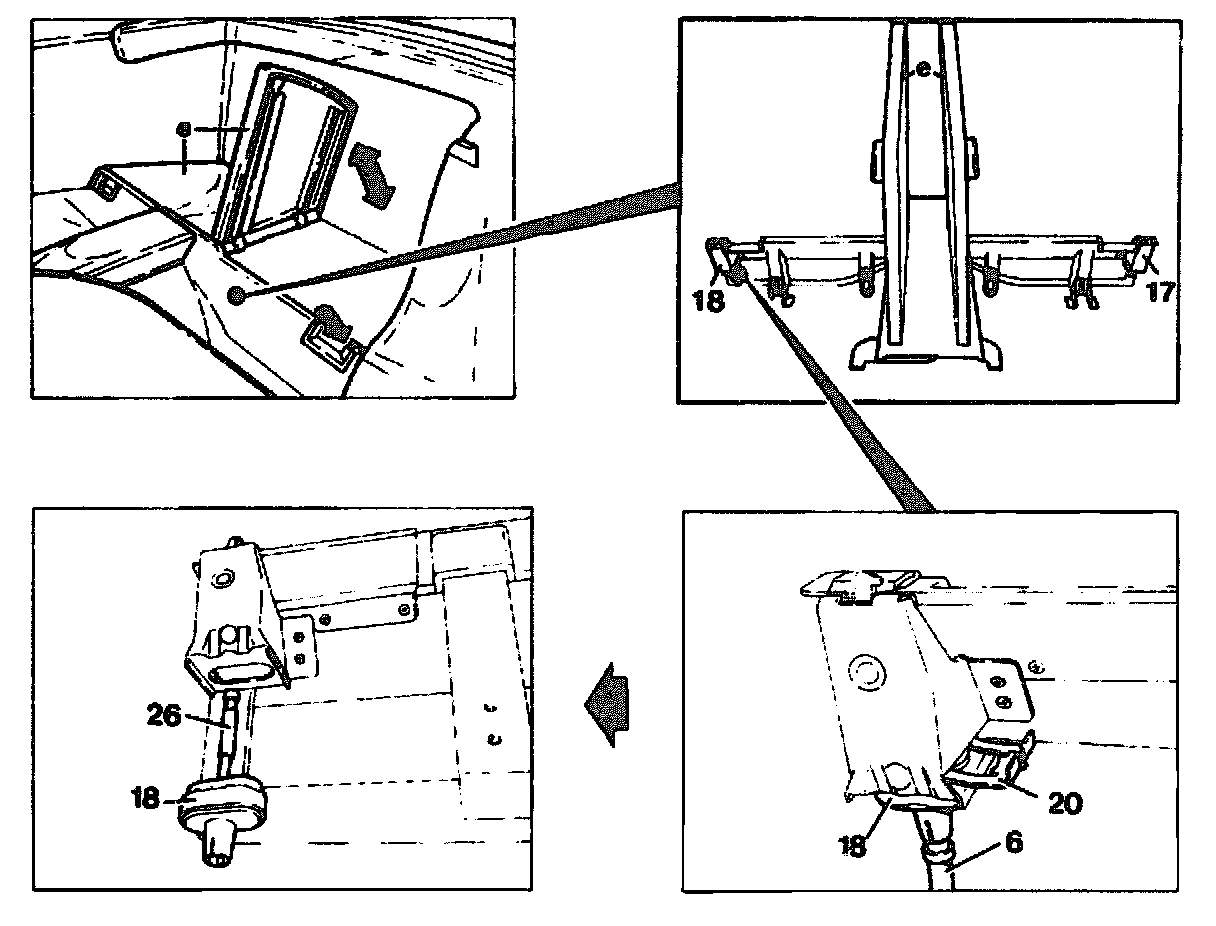

Rear luggage compartment lid (e)
Open.

Pneumatic line (6)
Lever off with open-end wrench (width between flats 7).

Spring clip (20)
Pull off.

Element (17 or 18)
Take out with connector (26).

Pneumatic function of the element (17, 18)
Check. Testing and Inspection

Element with connector
Install in the reverse sequence.
