Glove Box/Spectacles Compartment

Preliminary operation:
Check interior central locking for leaks. Testing and Inspection

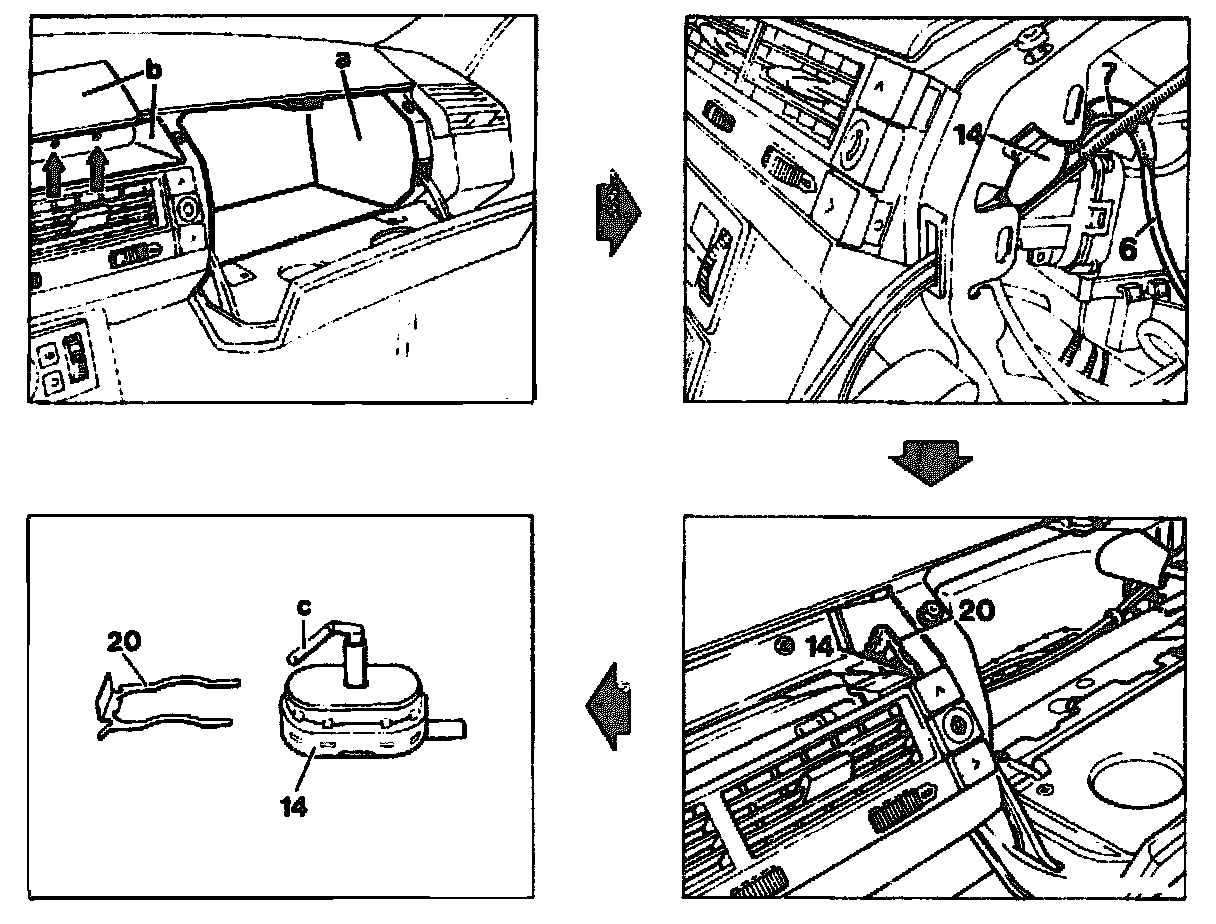

Spectacles compartment (b)
Remove complete (arrows).

Glove box insert (a)
Take out.

Pneumatic line (6)
Pull off.

Connector (7)
Check for damage.

Spring clip (20)
Pull off.

Element (14)
Take out.

Pneumatic function of element
Check. Testing and Inspection

Element
Install in reverse order, by securing the element carrier (c) in the cylinder lock eye.
