Trunk / Liftgate Motor: Service and Repair



AR88.50-P-5035C Removing And Installing Trunk Lid Remote Control

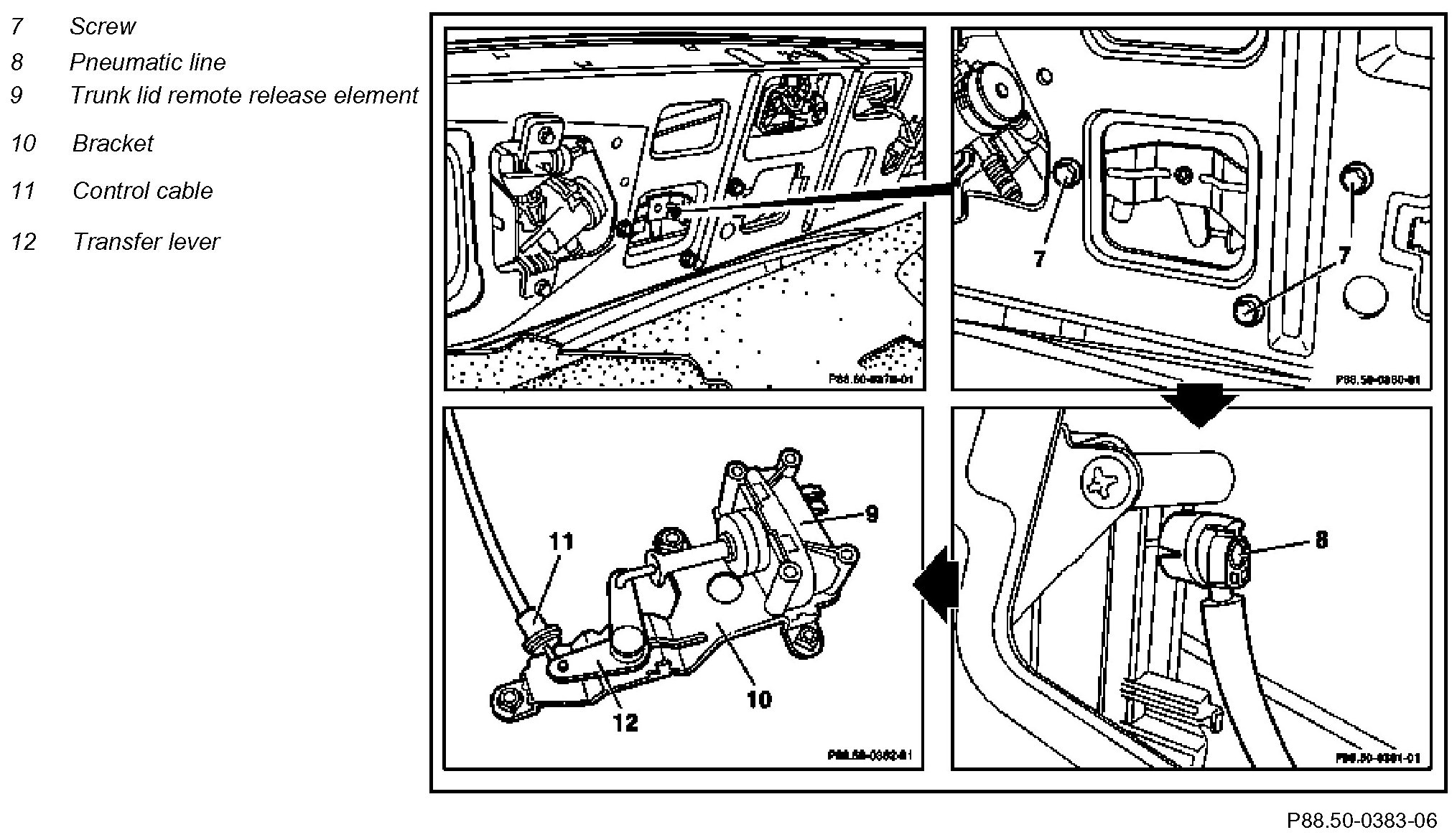

Component Identification:

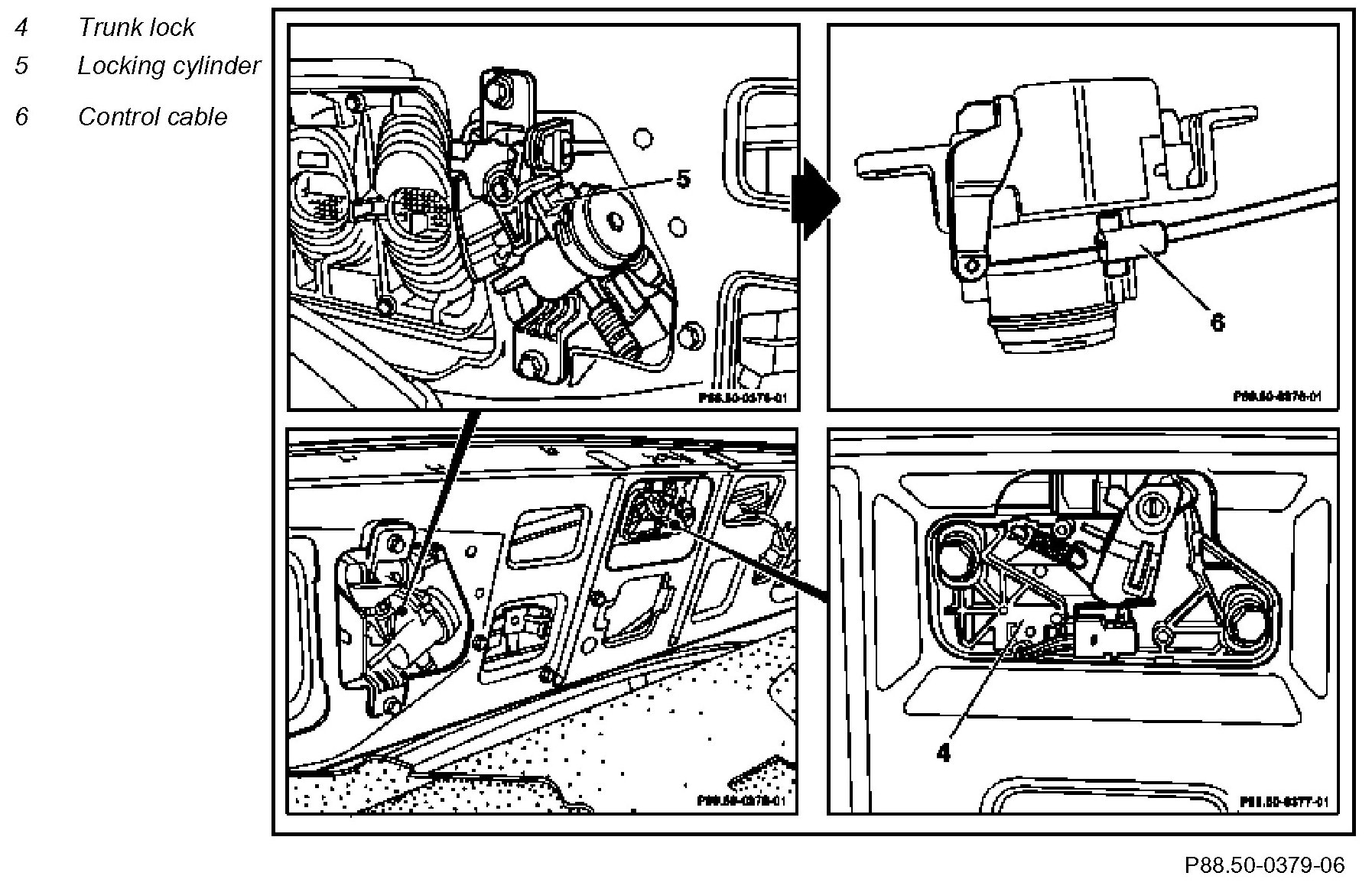

Component Identification:

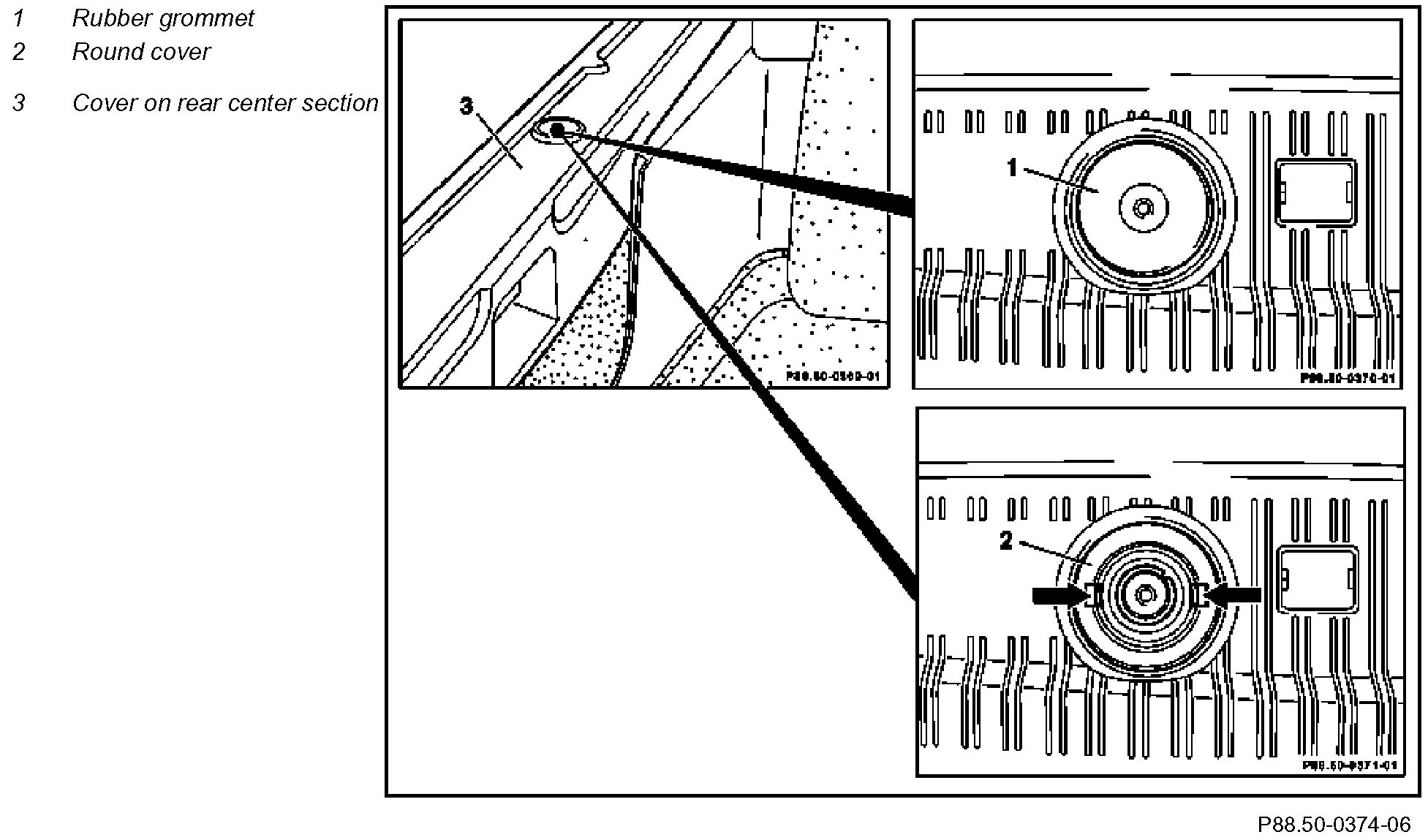

Component Identification:

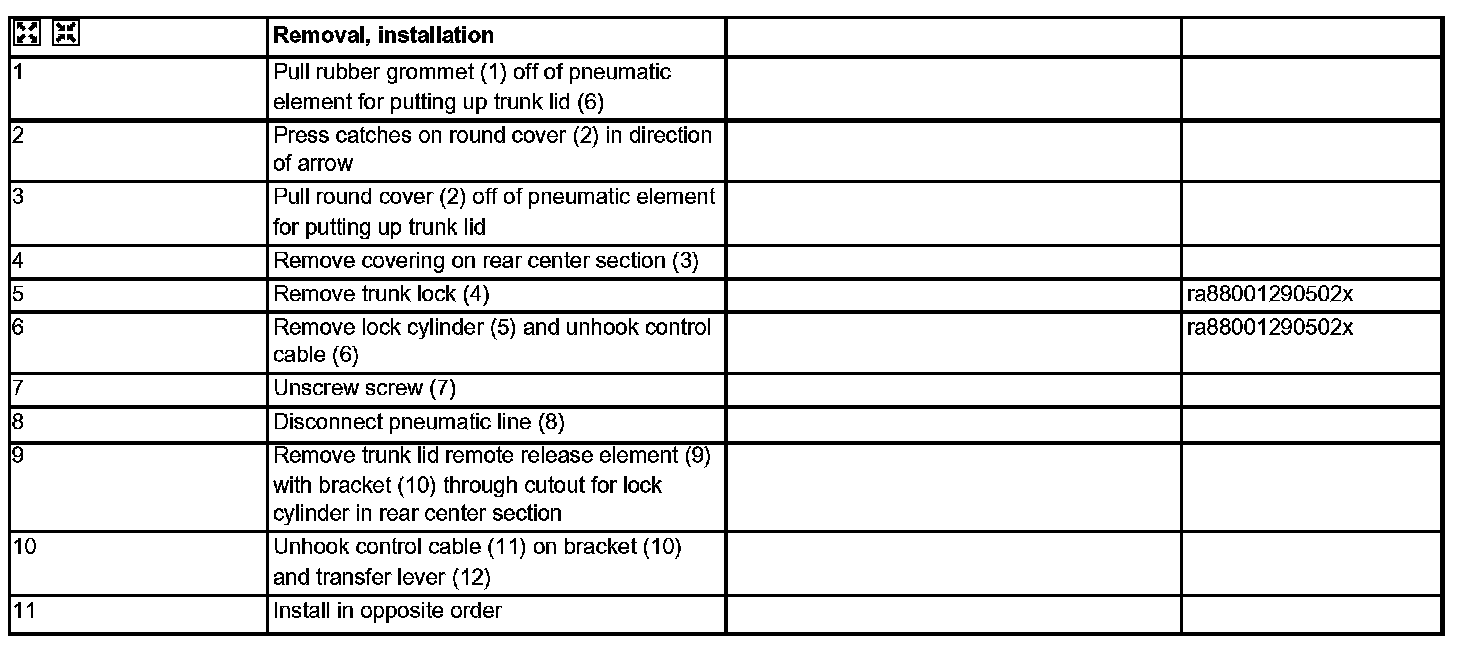

Steps 1 - 11:
