Front Door Latch: Service and Repair

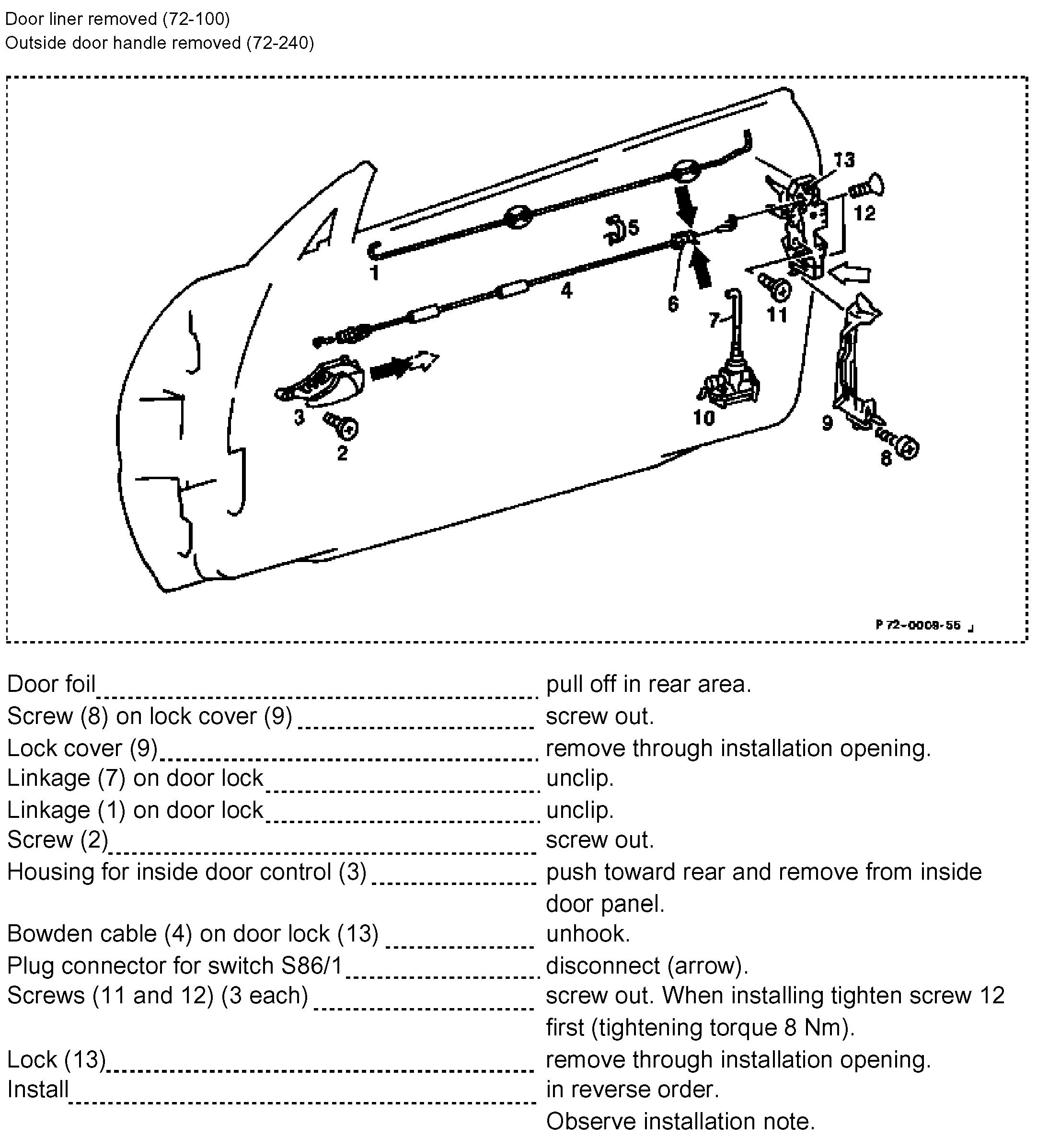

72-250 Removal And Installation Of Door Lock










Installation note

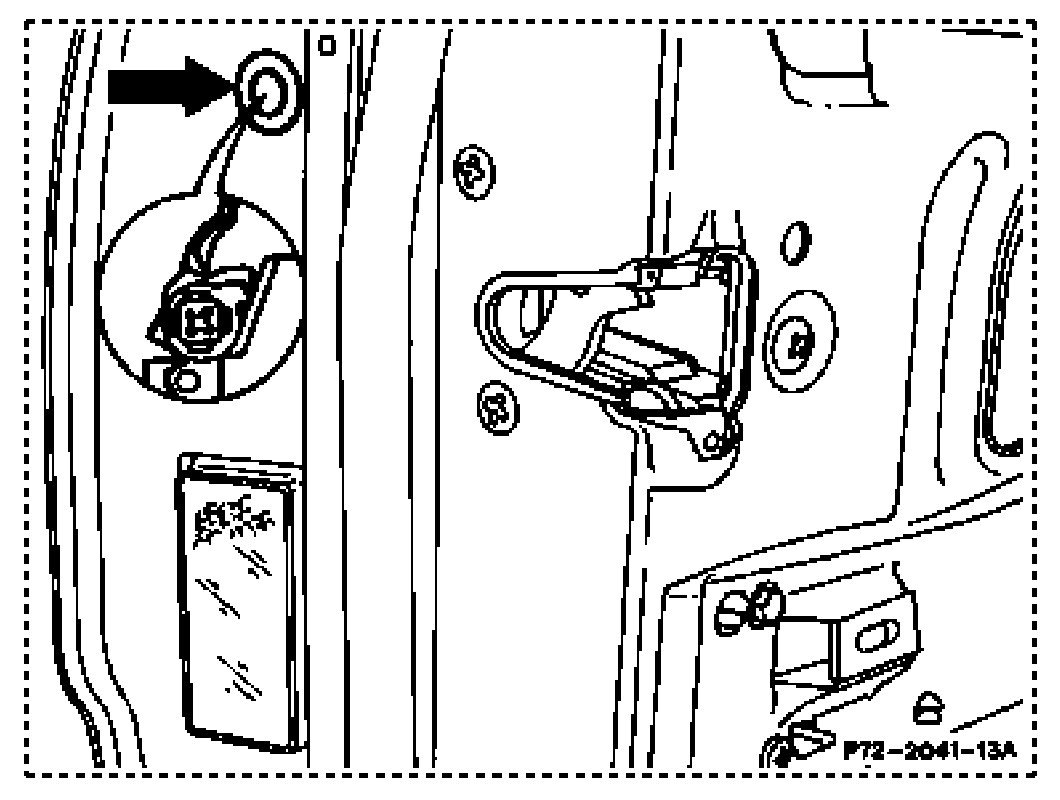

After installing outside door handle adjust the small clearance between door handle and actuating lever for door lock. For this purpose remove cover on end of door (arrow).

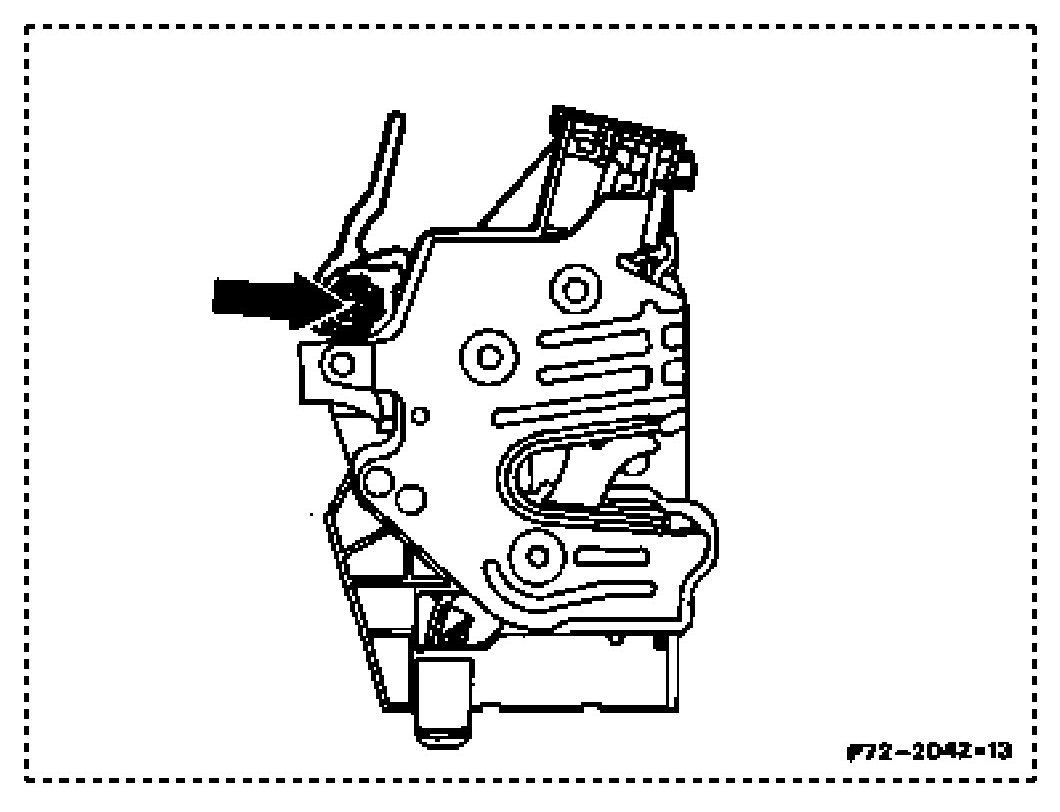

Adjust the small clearance by turning eccentric plastic screw on door lock (arrow).
Nominal value: 0 - 1 mm play at door handle
