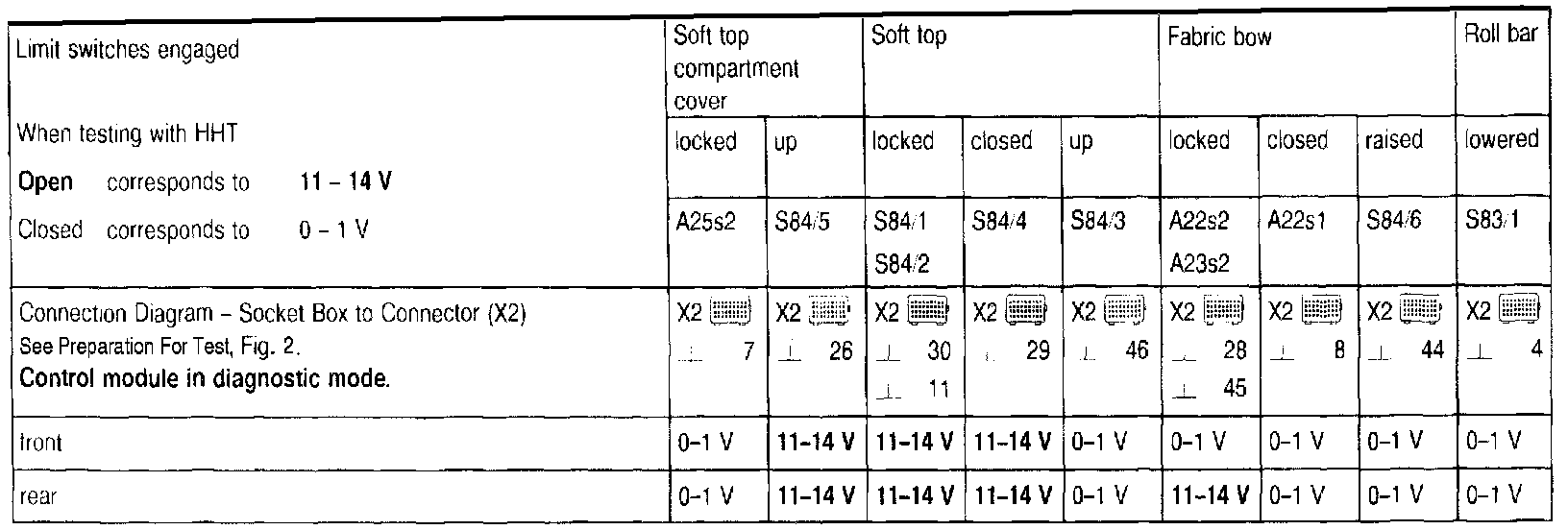

Survey of Electrical Limit Switch Signals

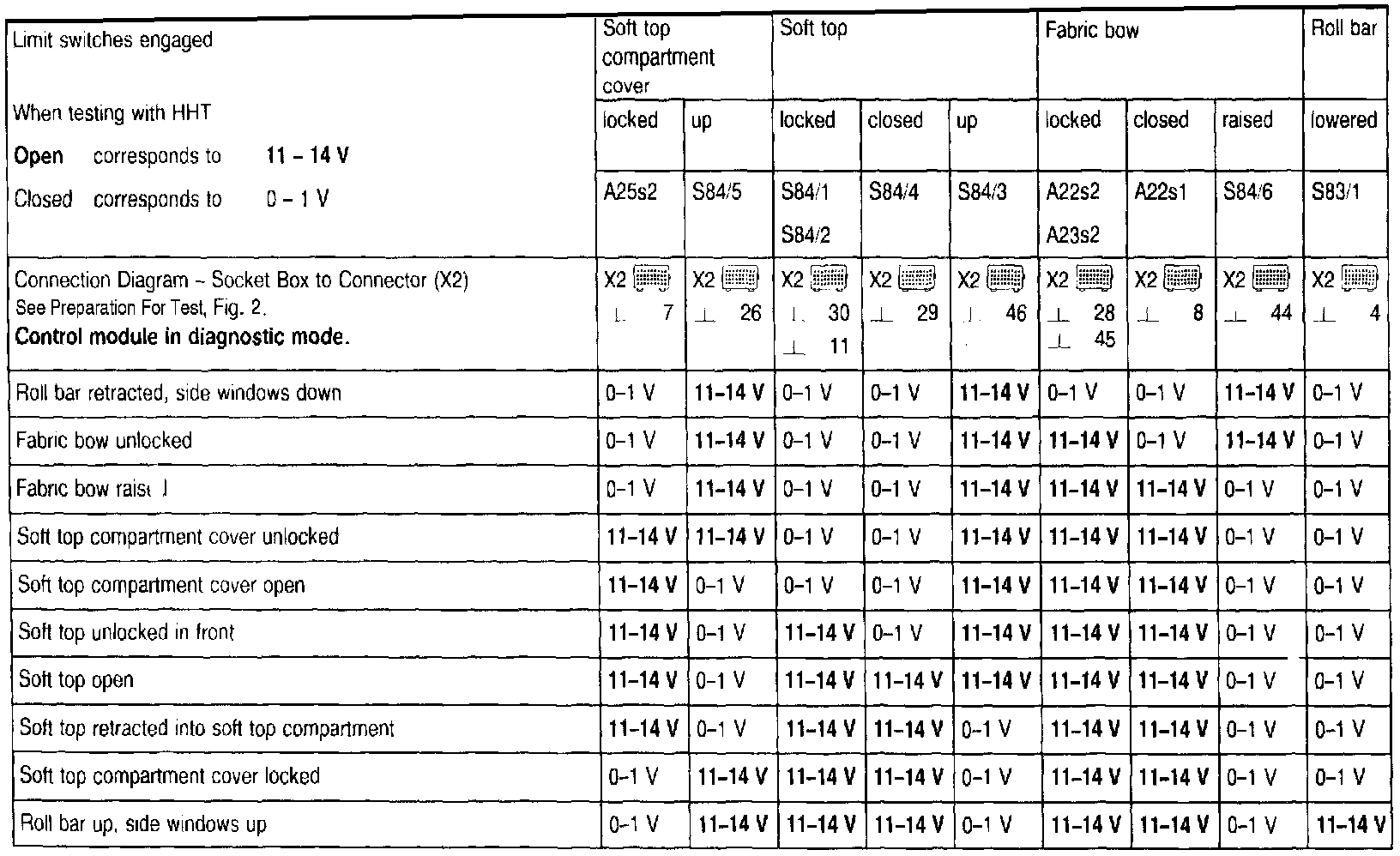

Operational Sequence, Opening Soft Top

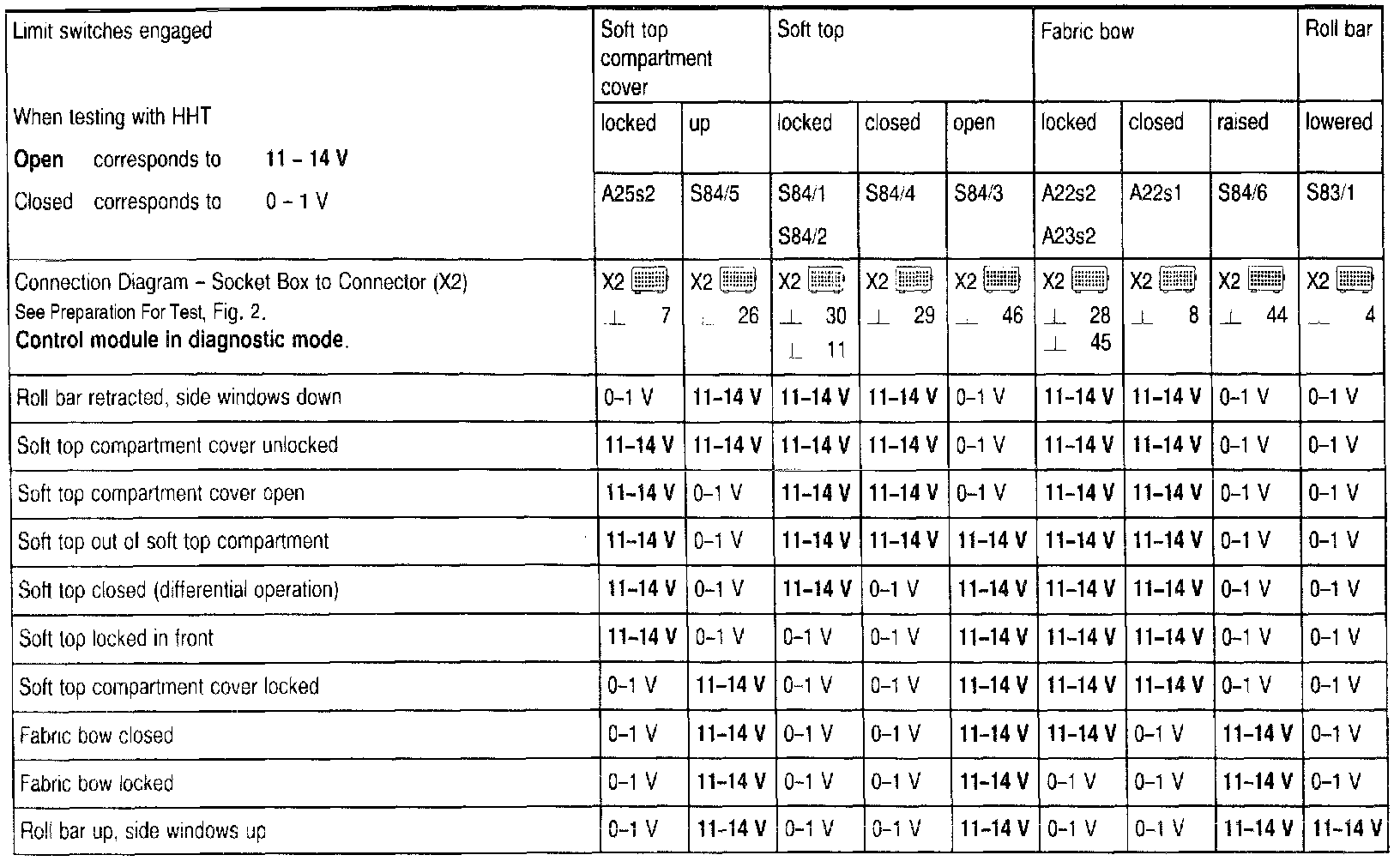

Operational Sequence, Closing Soft Top

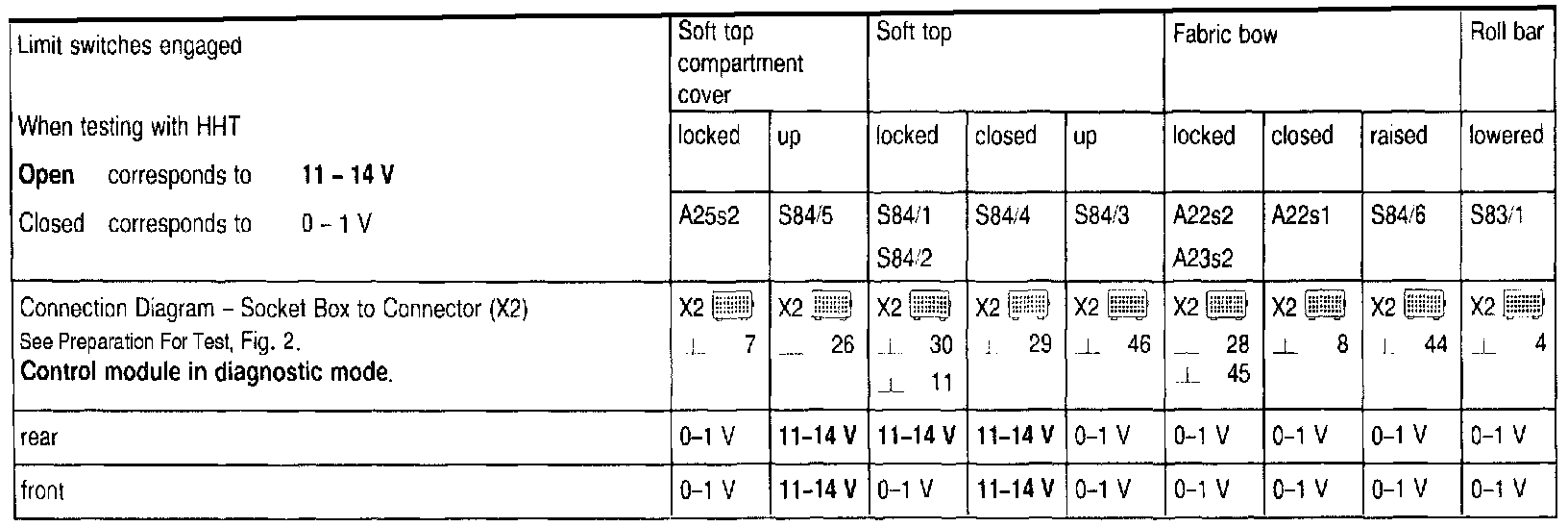

Operational Sequence, Hardtop Locking





Operational Sequence, Hardtop Unlocking
