Connector Locations

Electrical Connector Locations

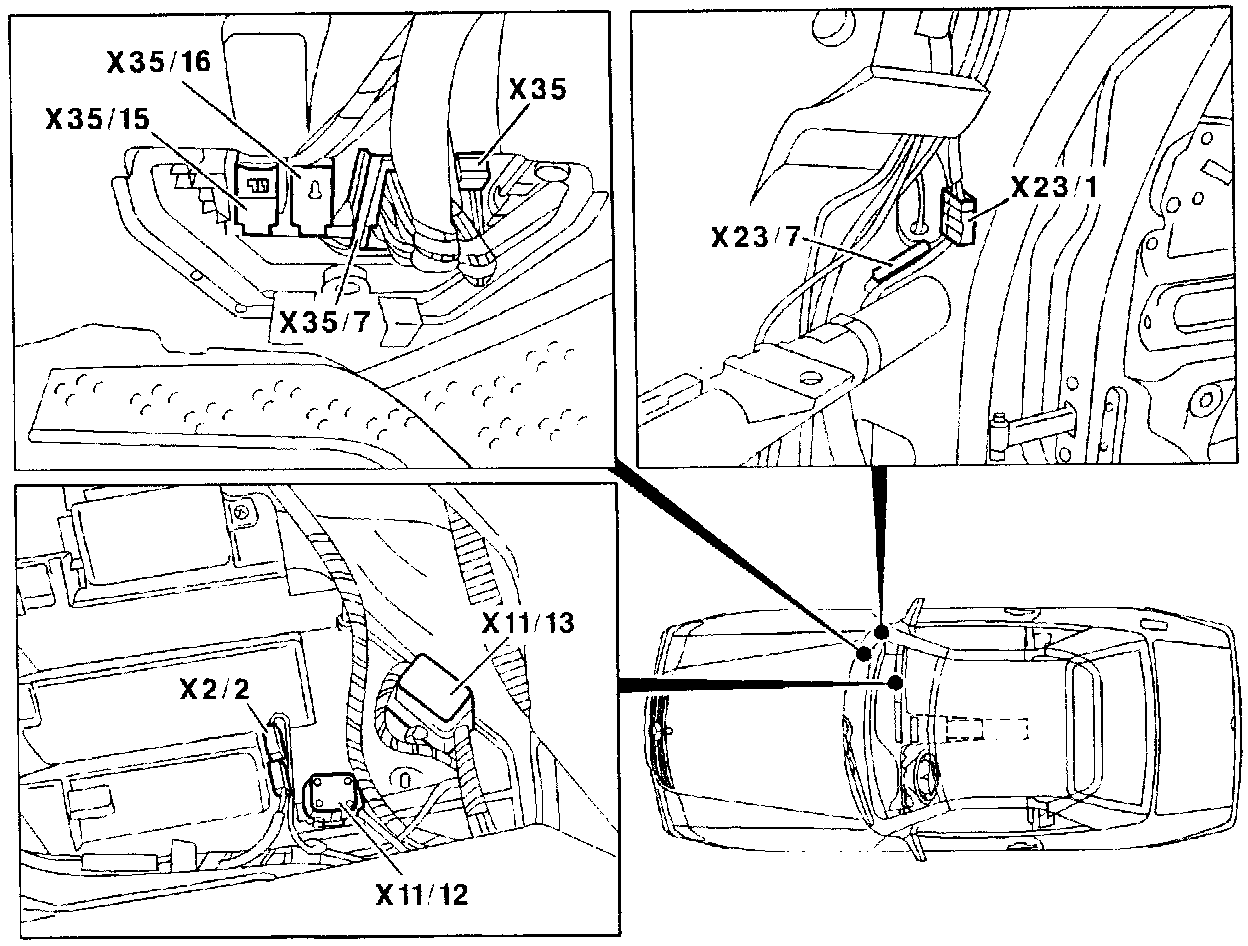

Figure 1:

X2/2 VSS connector (radio) (2-pole)
X11/12 Power soft top test connector (4-pole)
X23/1 Soft top/front locks connector (3-pole)
X23/7 Soft top connector (reed contact switch)
X35 Cockpit/module box separation point (12-pole)
X35/7 Cockpit/module box separation point (18-pole)
X35/15 Module box/taillamp harness separation point
X35/16 Module box/taillamp harness separation point (6 Pole)
