DTCM - Diagnostic Trouble Code Memory

Preliminary Work:
Diagnosis - Function Test. FT - Function Test

Prerequisite For Reading DTC Memory
1. Fuses in order
2. Battery voltage > 11 V.
3. Connect HHT according to connection diagram. Connecting Tester Or Scanner, Reading and Erasing DTC Memory

NOTE: Starting 9/95, the DTC memory can be read only with the HHT.

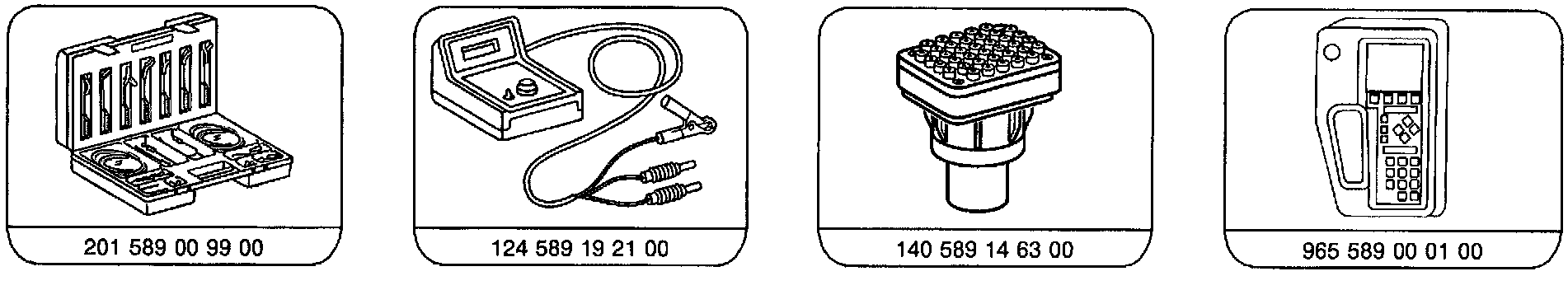

Special Tools:

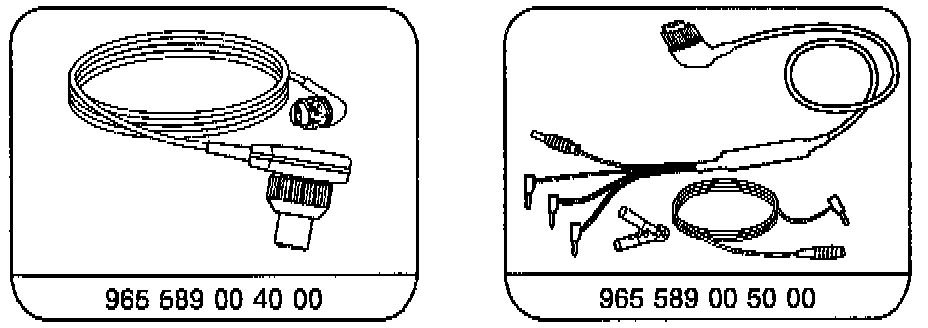

Special Tools:

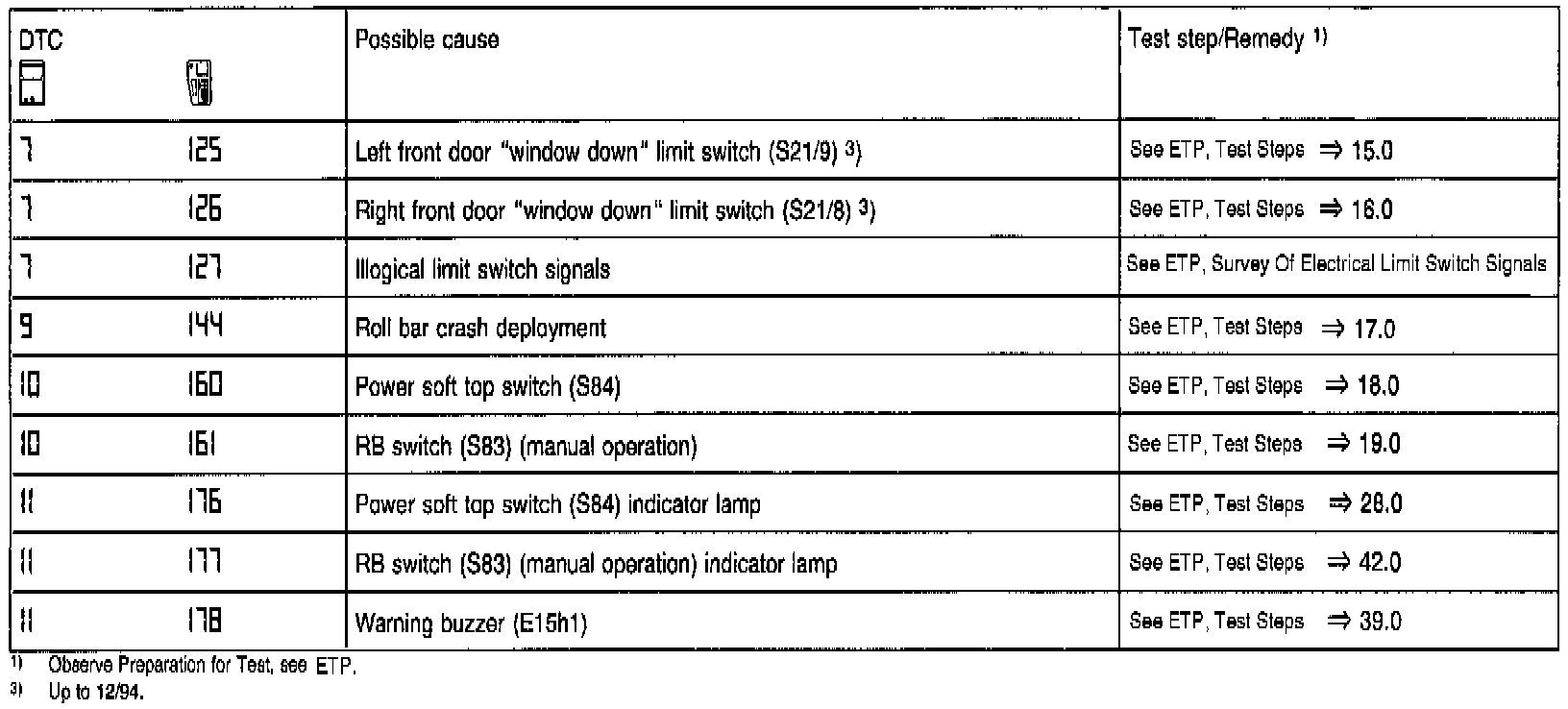

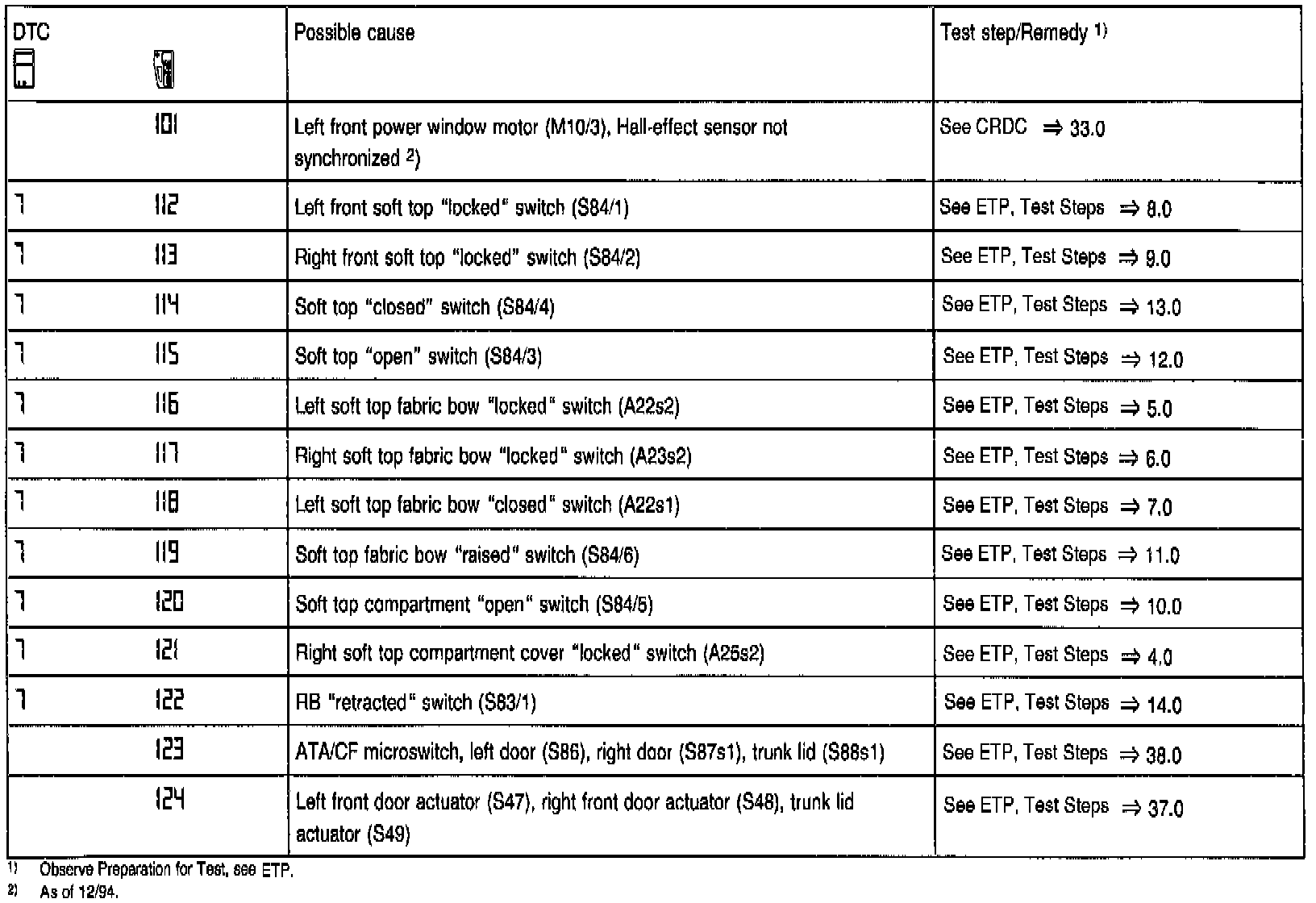

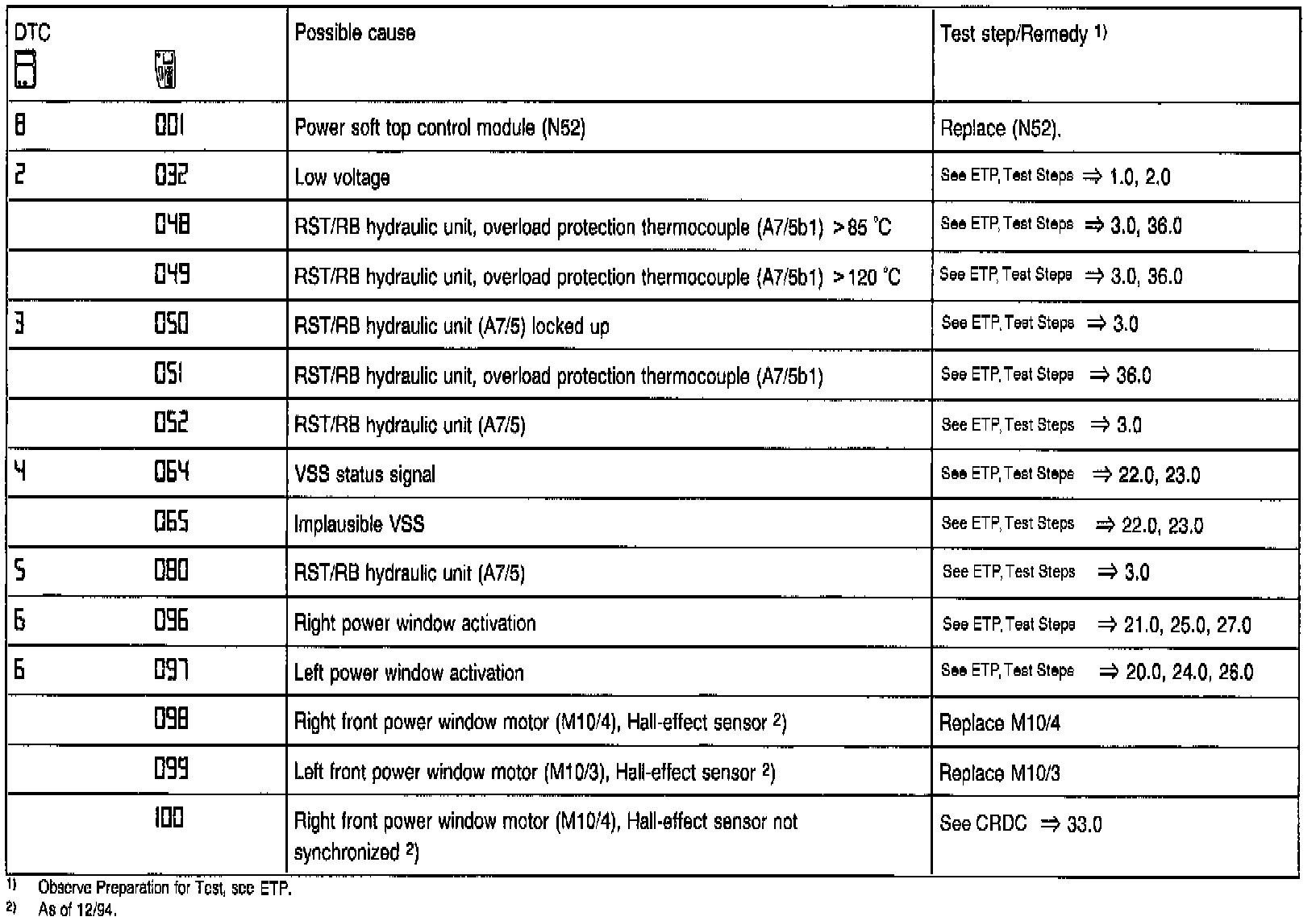

Diagnostic Trouble Code (DTC) Memory up to 9/95

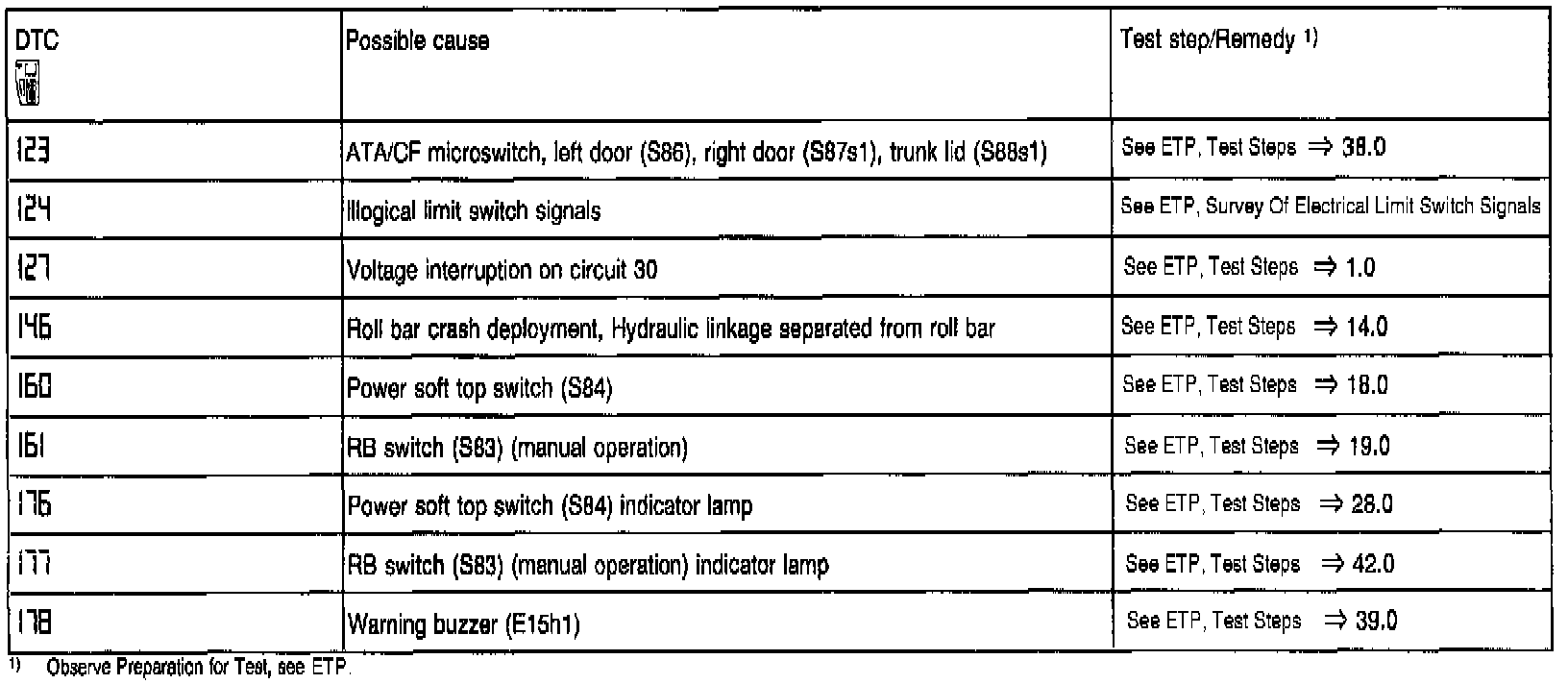

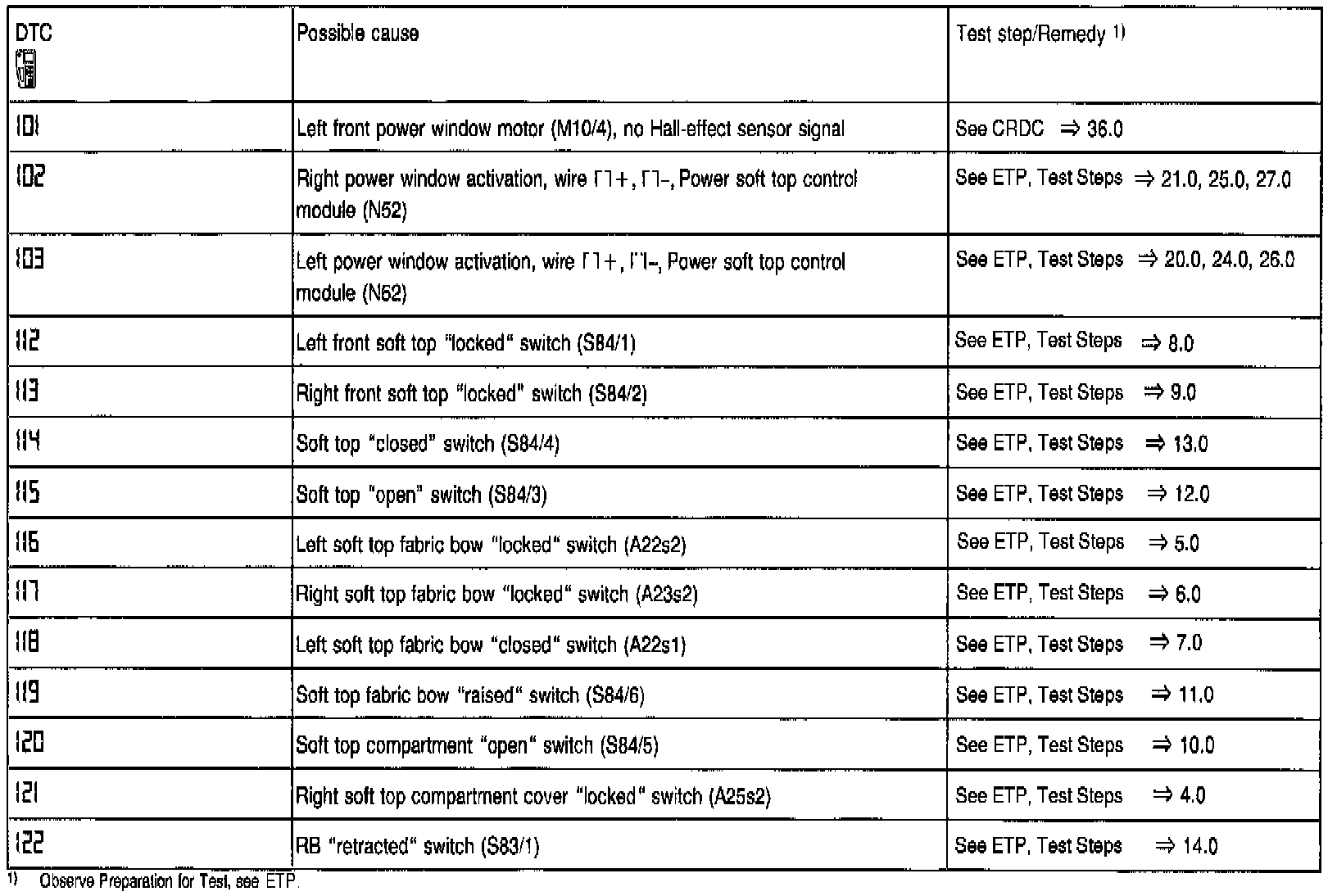

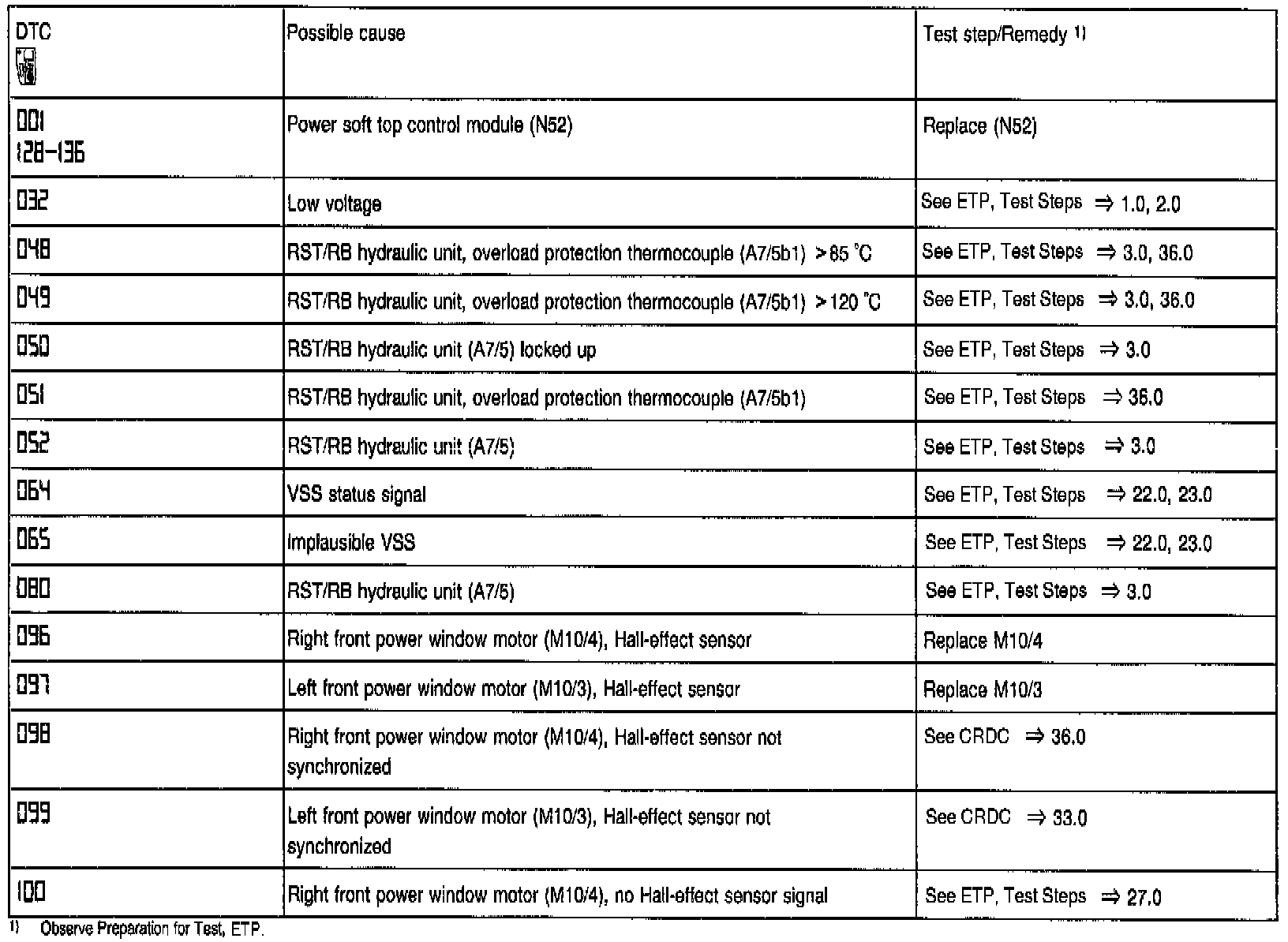

Diagnostic Trouble Code (DTC) Memory as of 9/95
