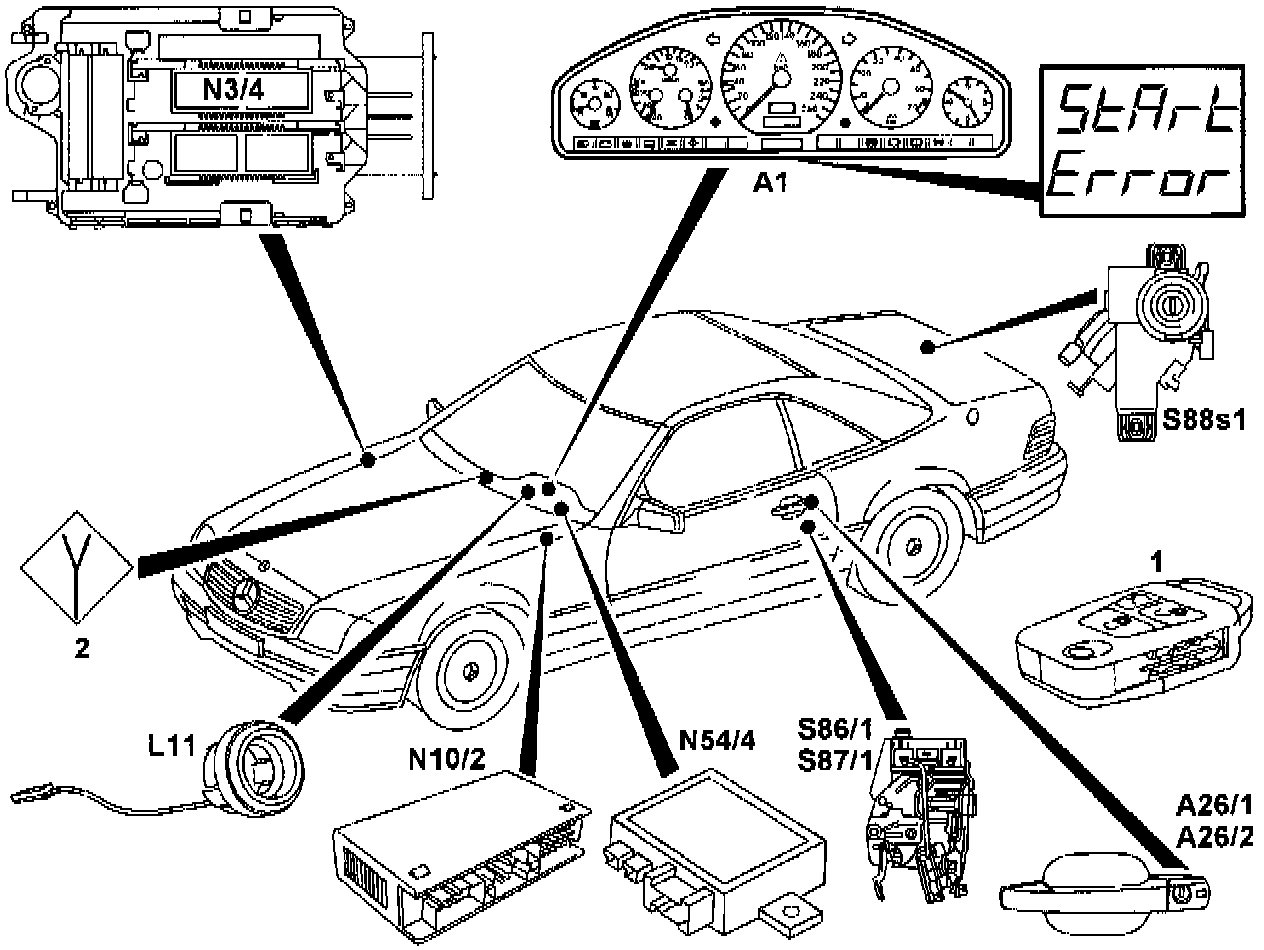

Component Locations

A1 Instrument cluster
A26/1 Left front door IR receiver
A26/2 Right front door IR receiver
L11 Transponder coil
N3/4 Engine control module (HFM-SFI)
N10/2 Combination relay module (turn signal with trailier coupling, rear window defroster, wiper motor, ATA)
N54/4 DAS radio frequency/infrared control module (located behind instrument cluster)
1 Transmitter key with transponder
2 Antenna
S86/1 Left front door lock switch (CF) (USA)
S87/1 Right front door lock switch (CF) (USA)
S88s1 ATA/CF microswitch (USA)
