Function Test - Section 11




Preparation for Test:
1. Review sections 21 and 22.
Section 21: Component Locations - Section 21
Section 22: Preparation For Test - Section 22
2. Review electrical diagrams
3. Review section 0, Connection and Use of Test Equipment - Section 0
4. Fuses are OK,
5. Battery voltage: 11 - 14 V
6. Ignition: ON

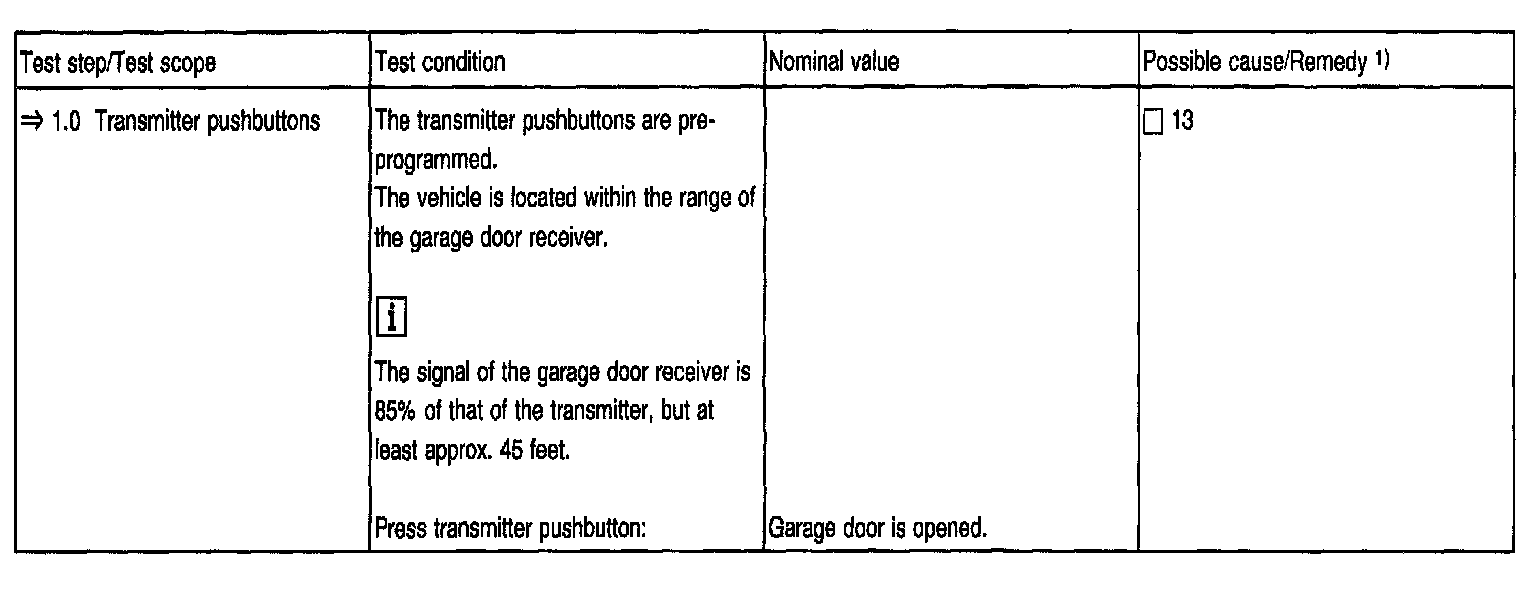

Step 1.0:
