Alternator: Service and Repair



AR15.40-P-5032ED Remove/Install Alternator

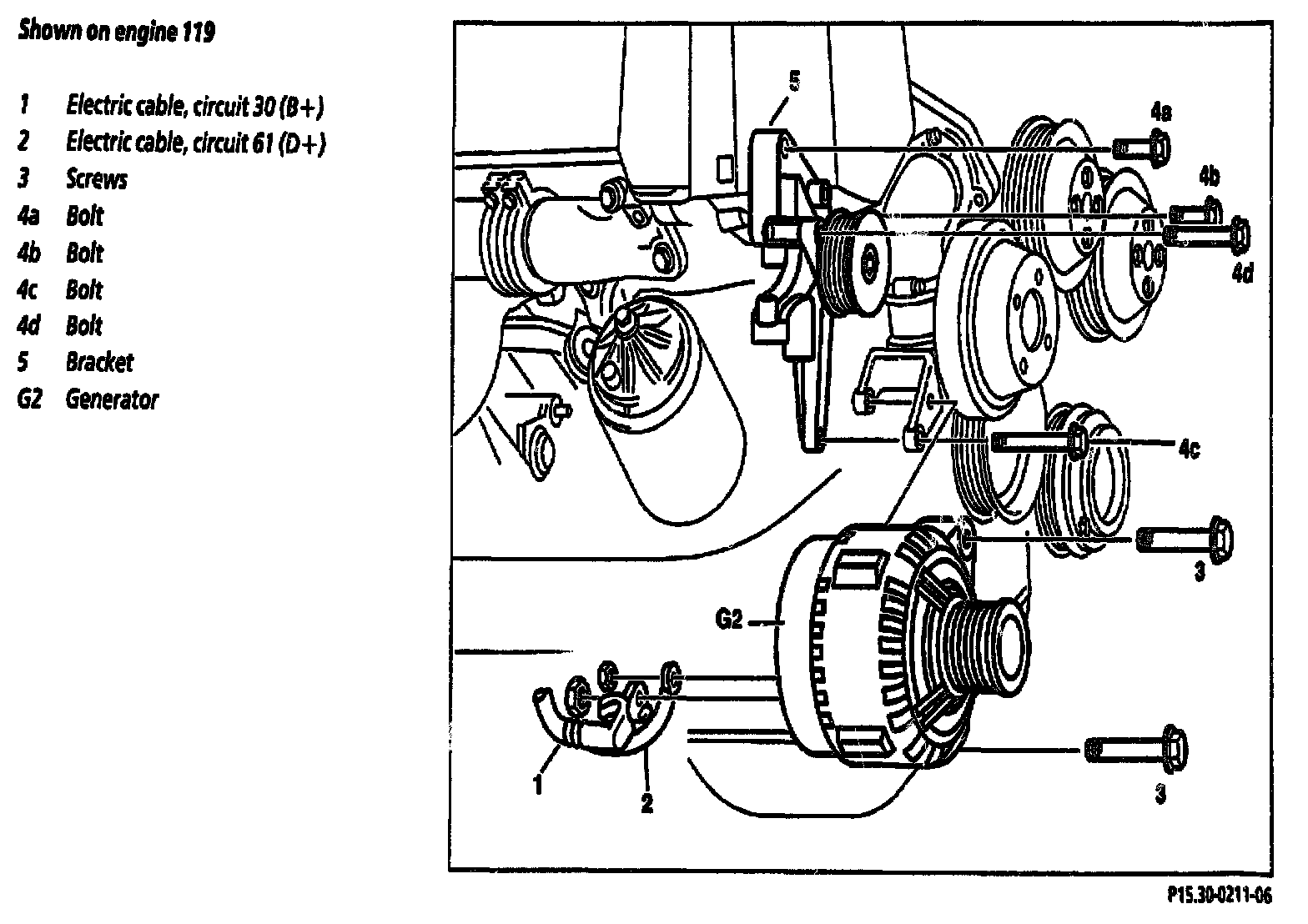

Shown On Engine 119:

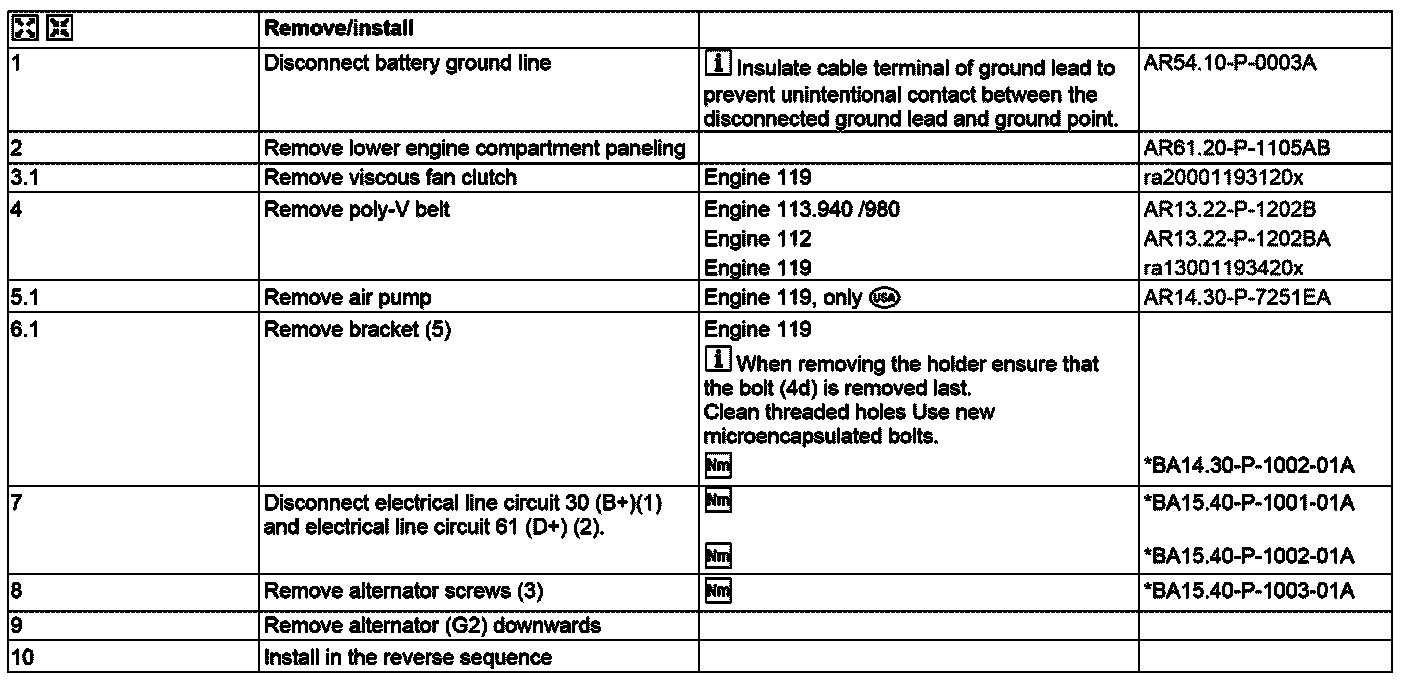

Steps 1 - 10:
