Home >> Mercedes Benz >> 2000 >> E 55 AMG (210.074) V8-5.5L (113.980) >> Repair and Diagnosis >> Restraints and Safety Systems >> Head Restraint System >> Head Rest >> Service and Repair >> AR91.16-P-1780E Remove/Install Rear Head Restraint Mechanism

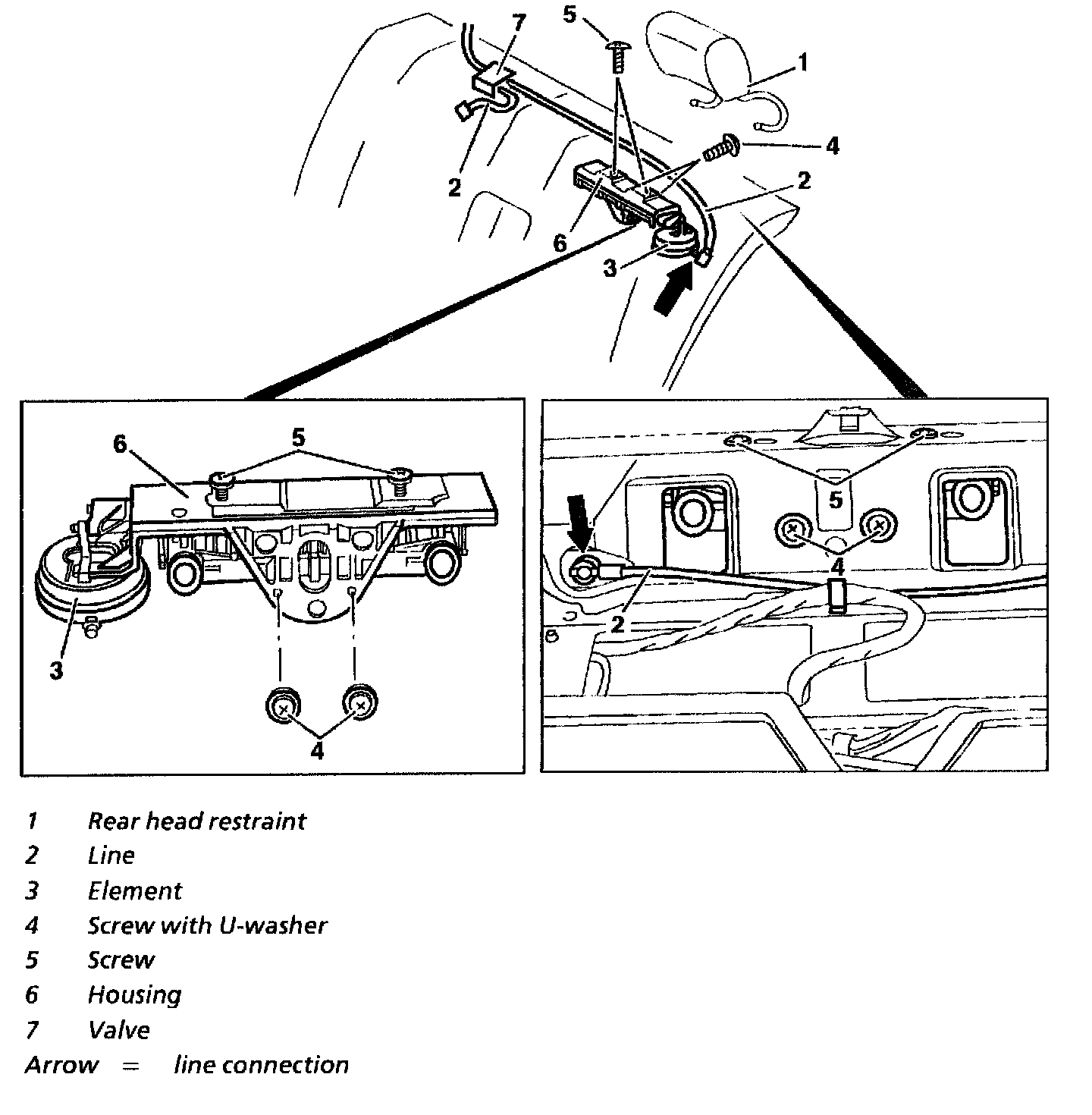

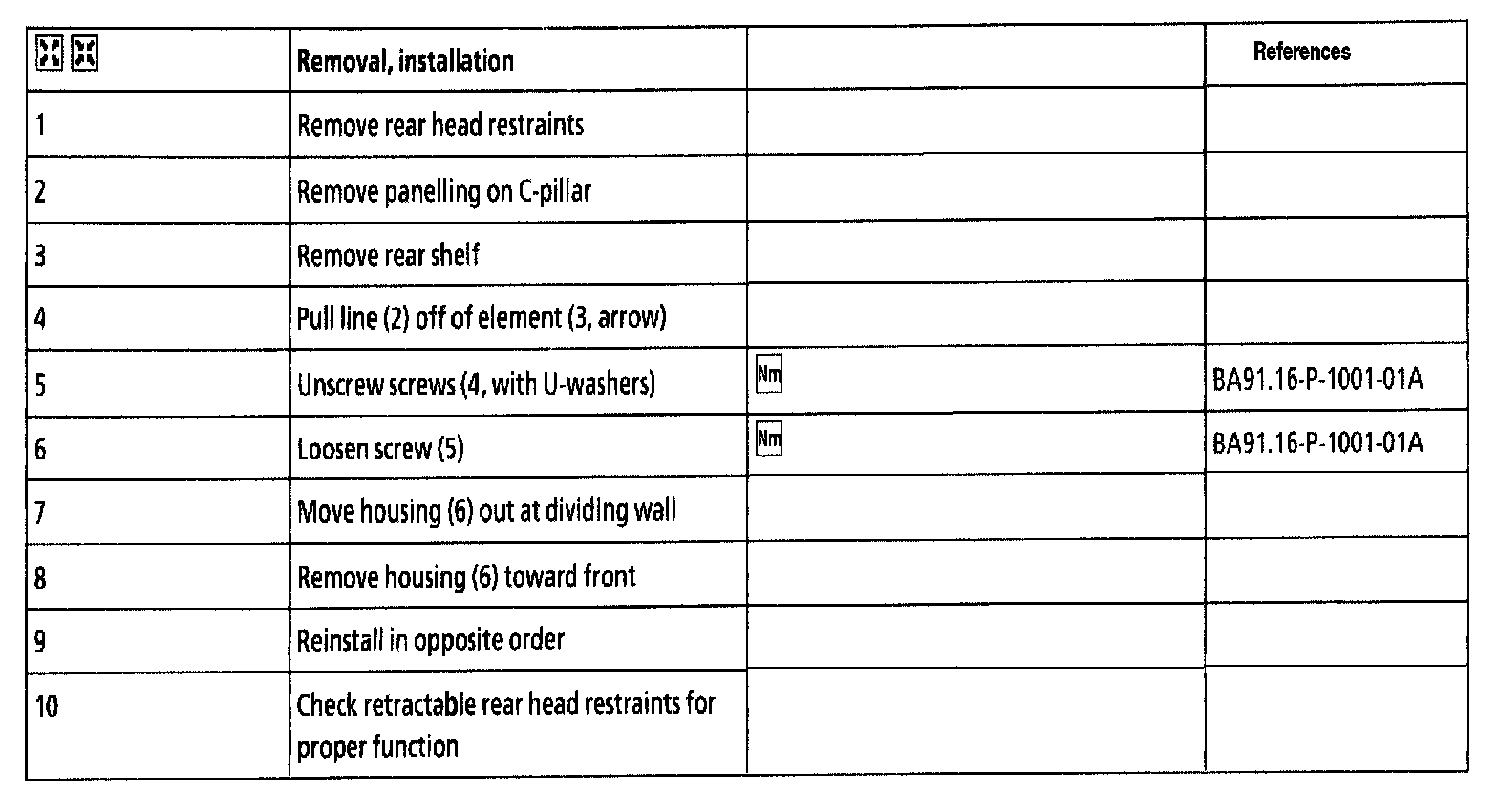

AR91.16-P-1780E Remove/Install Rear Head Restraint Mechanism



AR91.16-P-1780E Remove/Install Rear Head Restraint Mechanism
- with CODE (430a) Left and right rear head restraints
