Home >> Mercedes Benz >> 2000 >> E 55 AMG (210.074) V8-5.5L (113.980) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations >> Vehicles With ME-SFI >> Chassis/Body Mounted Components

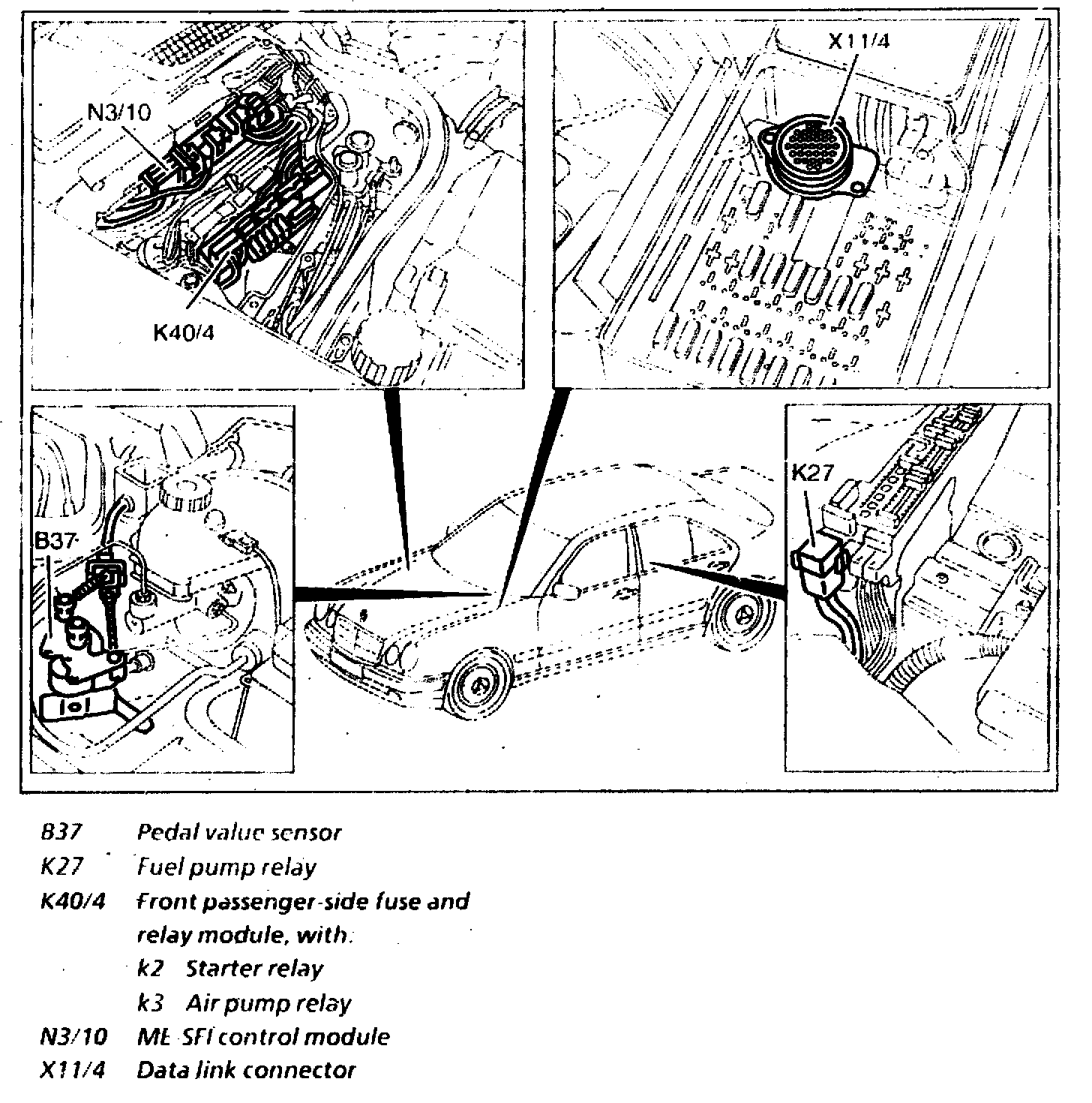

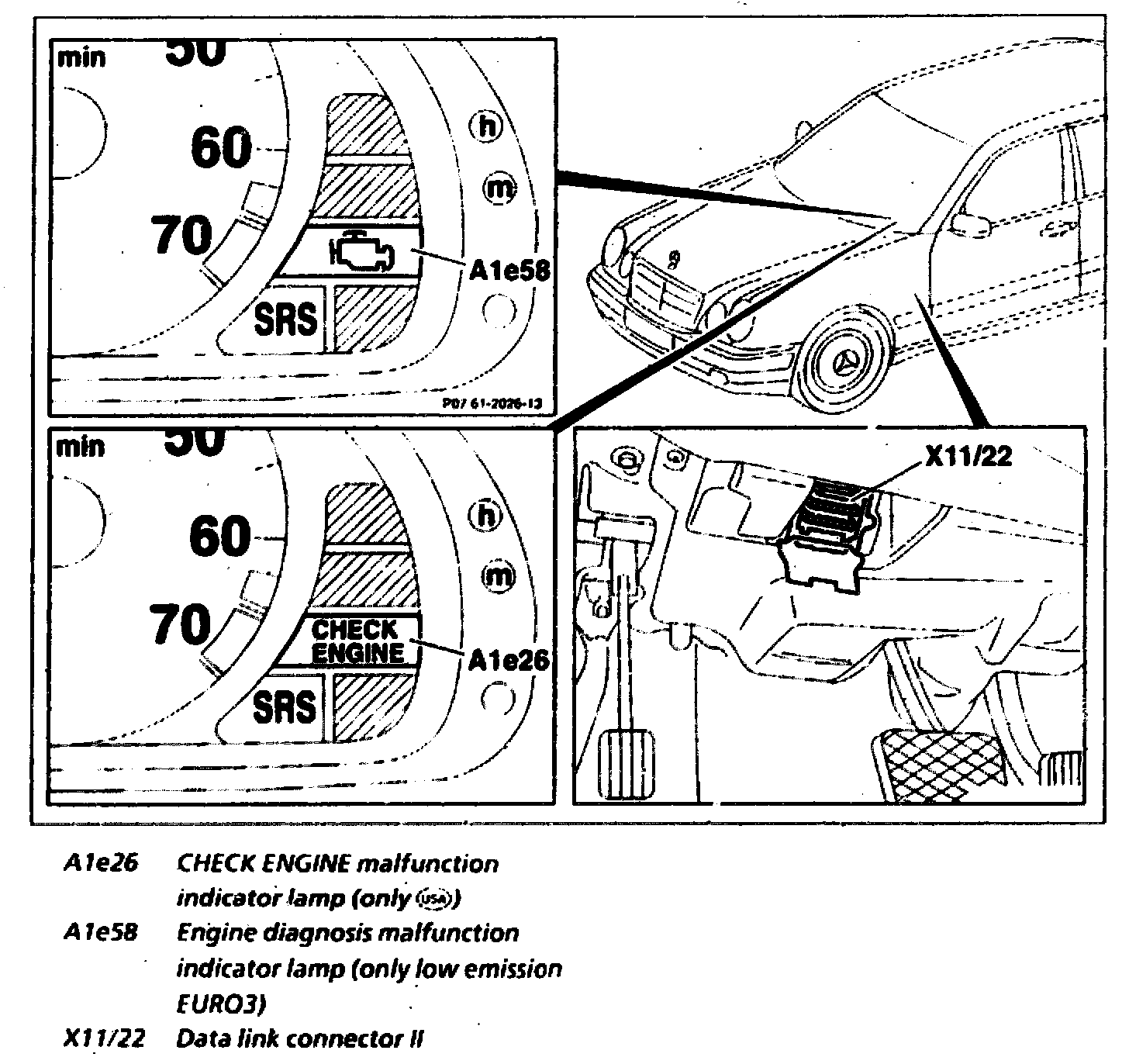

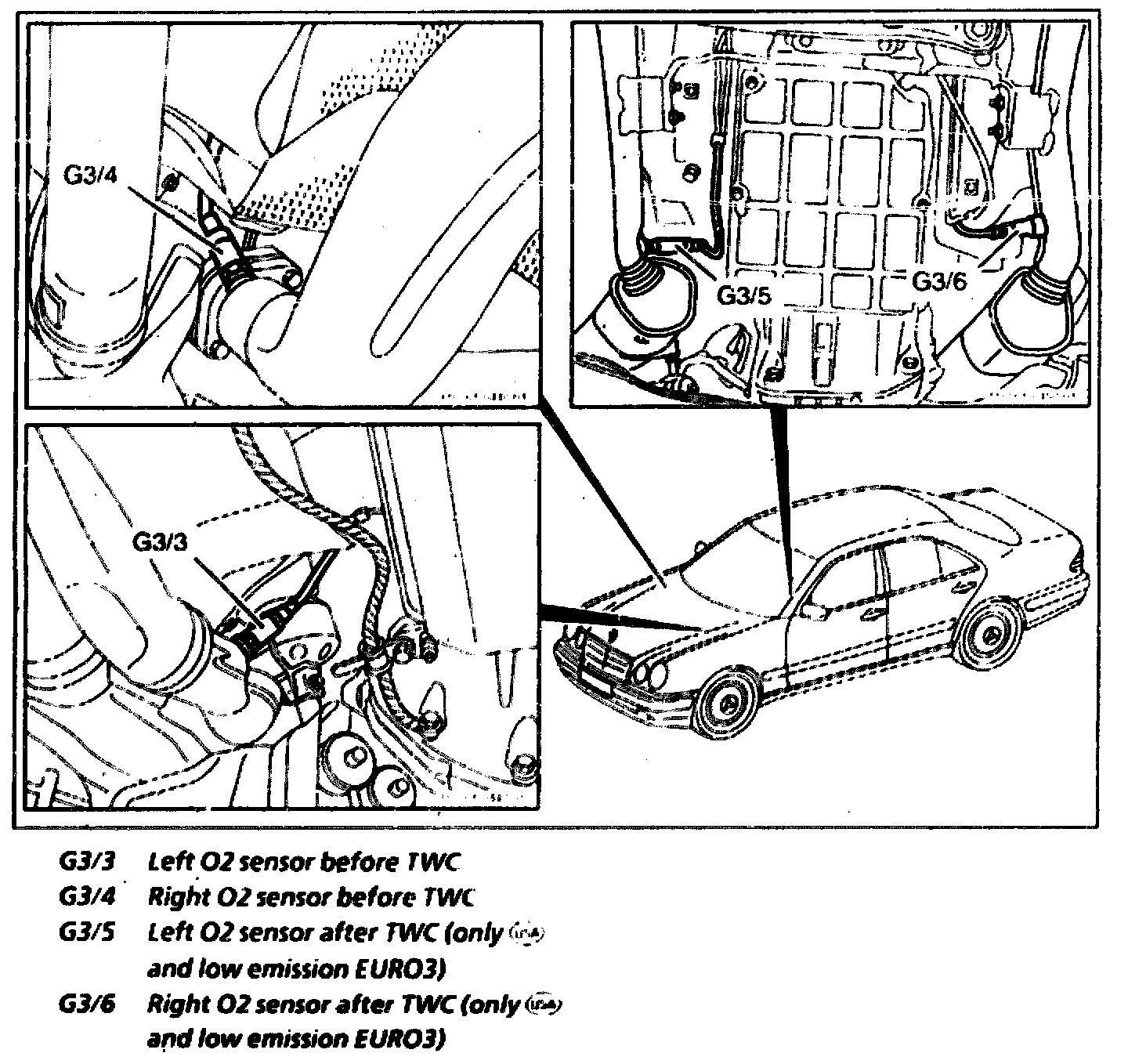

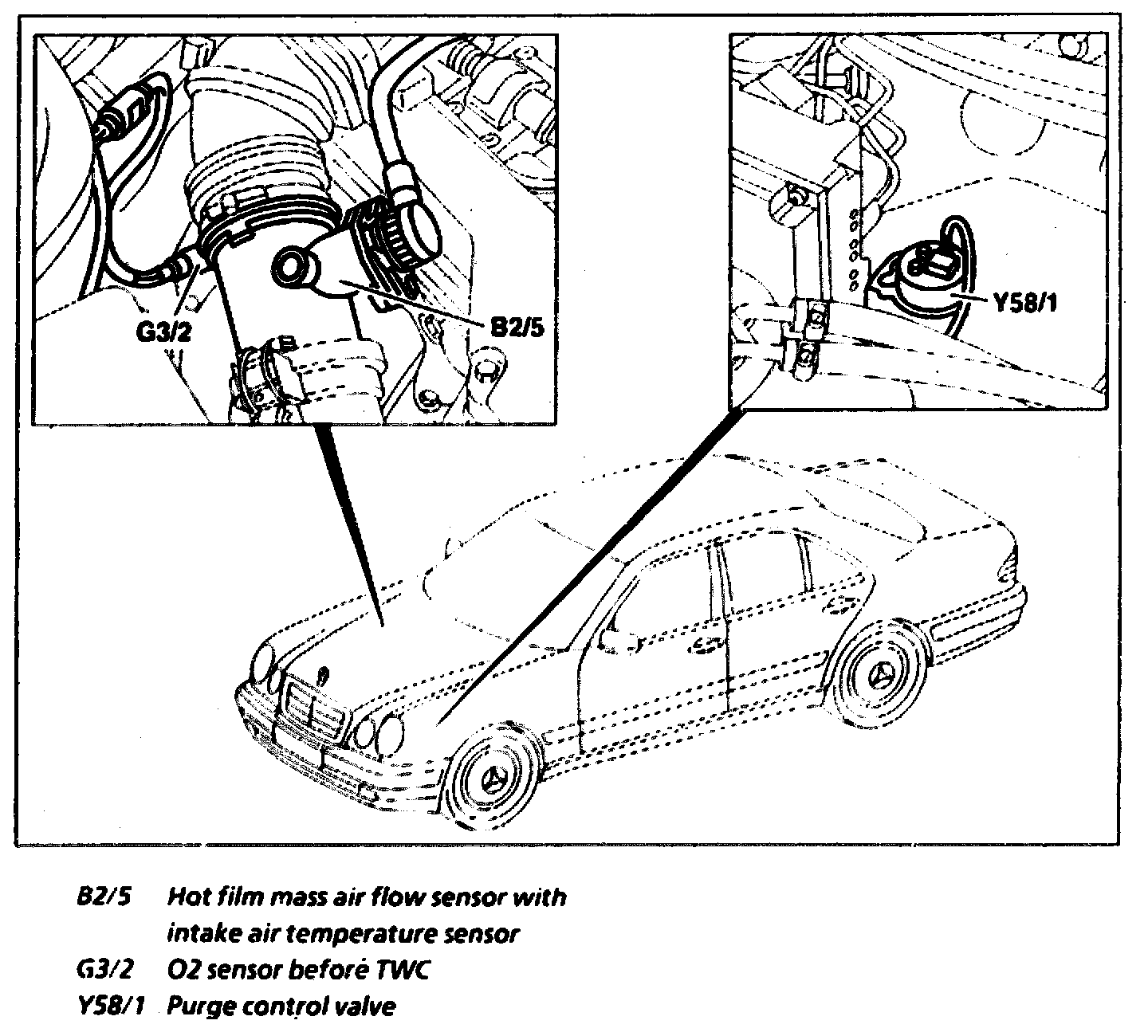

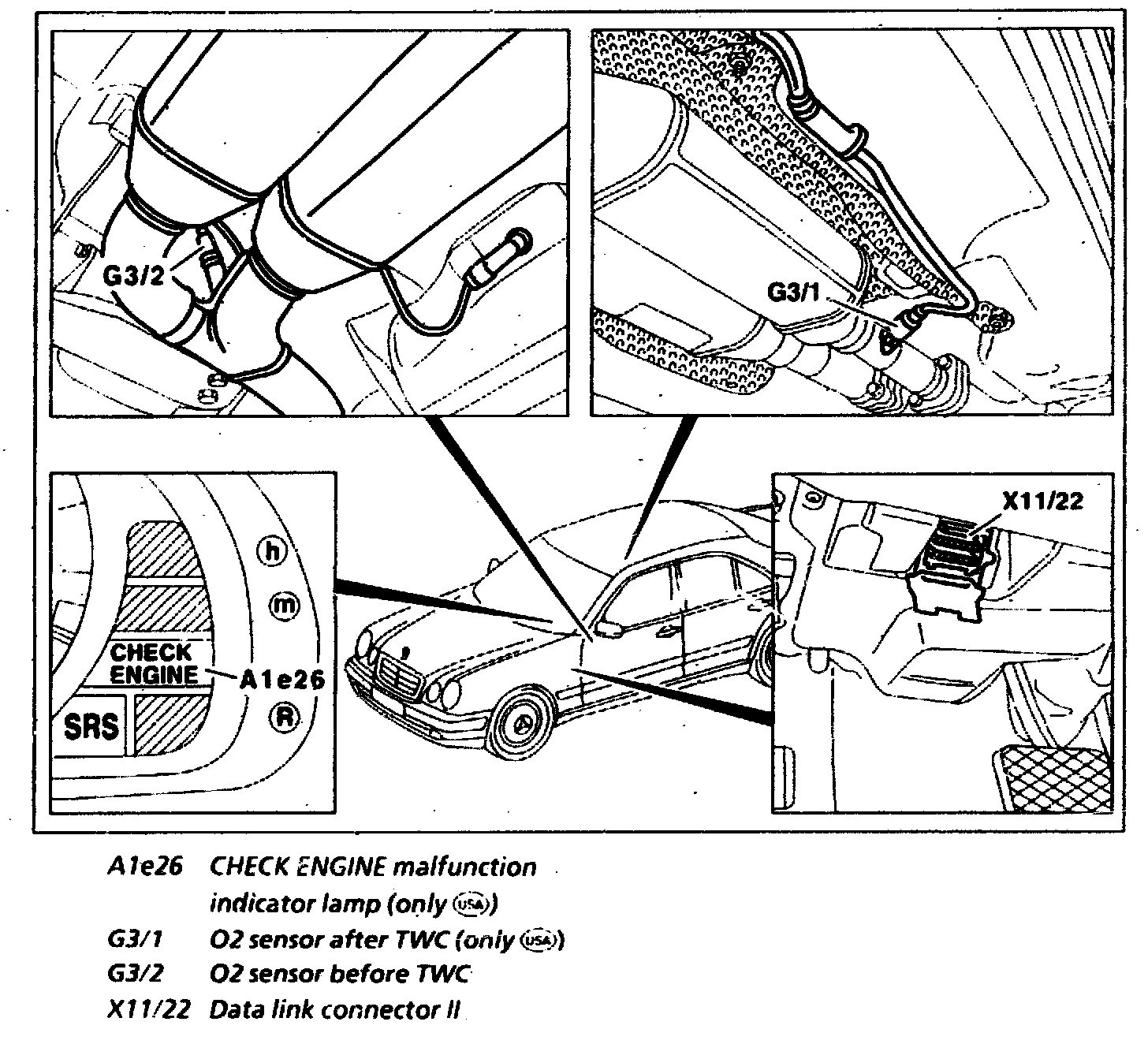

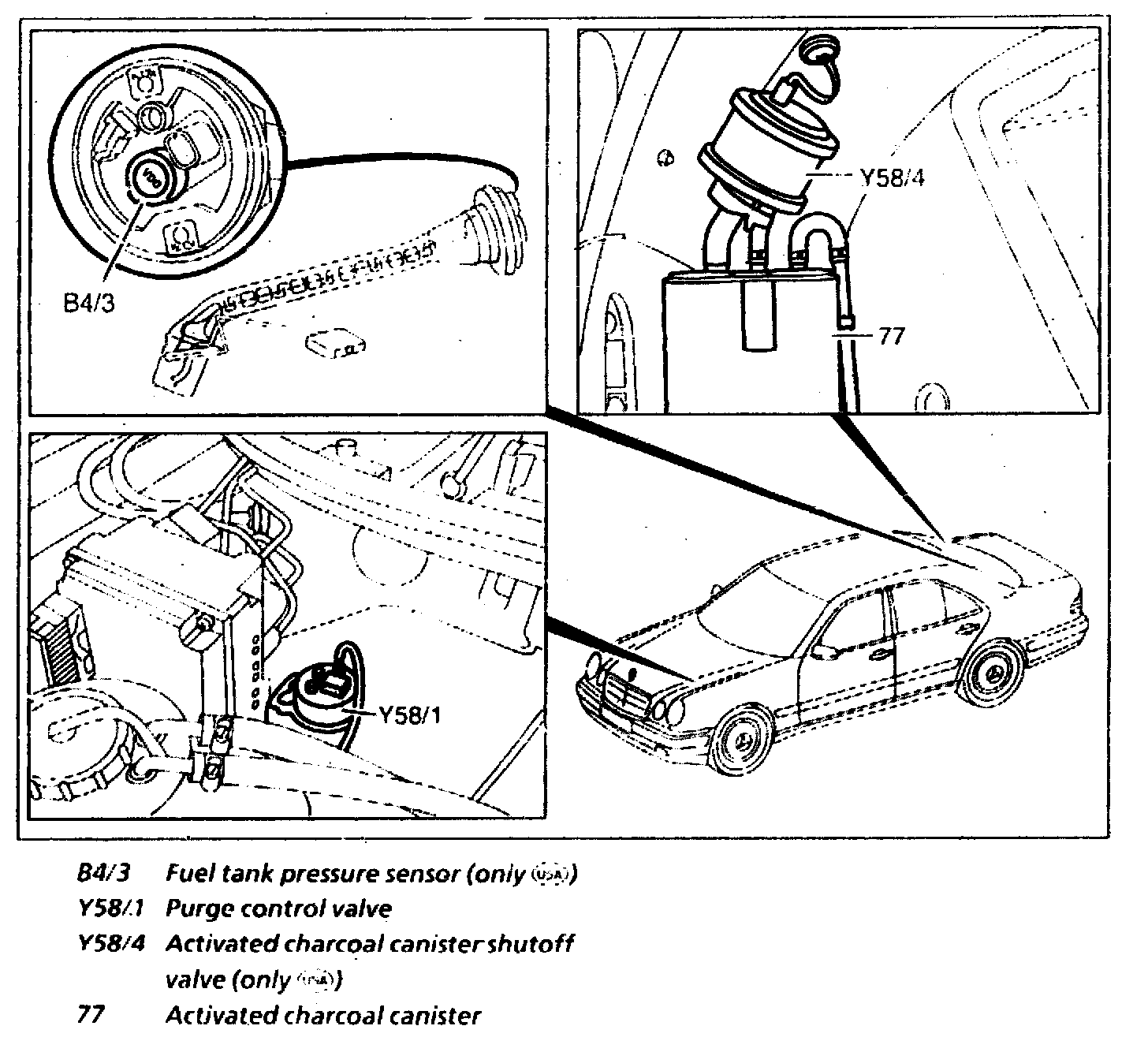

Chassis/Body Mounted Components



Model 210





















Engine 111






Engine 112, 113










Engine 104
