E 55 AMG (210.074) V8-5.5L (113.980)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Relays and Modules - Lighting and Horns
>>
Headlamp Alignment Control Module
>>
Locations
Headlamp Alignment Control Module: Locations

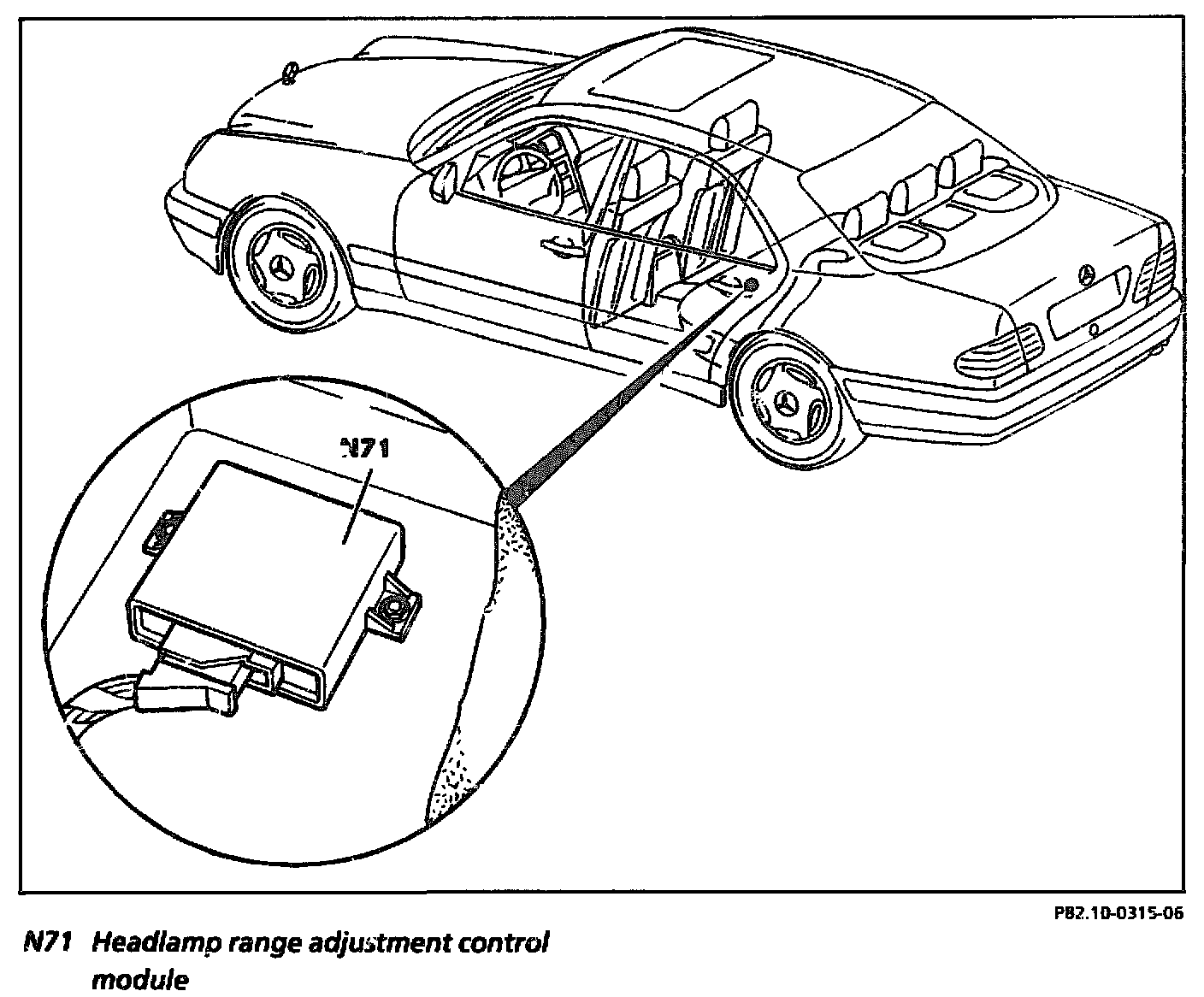

Component Identification:
Location
Below left rear seat. Fastened with two nuts
Interior, under left rear seat
