RF Fuse and Relay Module (K40/4) PE54.20-U-2200EA
RF Fuse and Relay Module (K40/4) PE54.20-U-2200EA

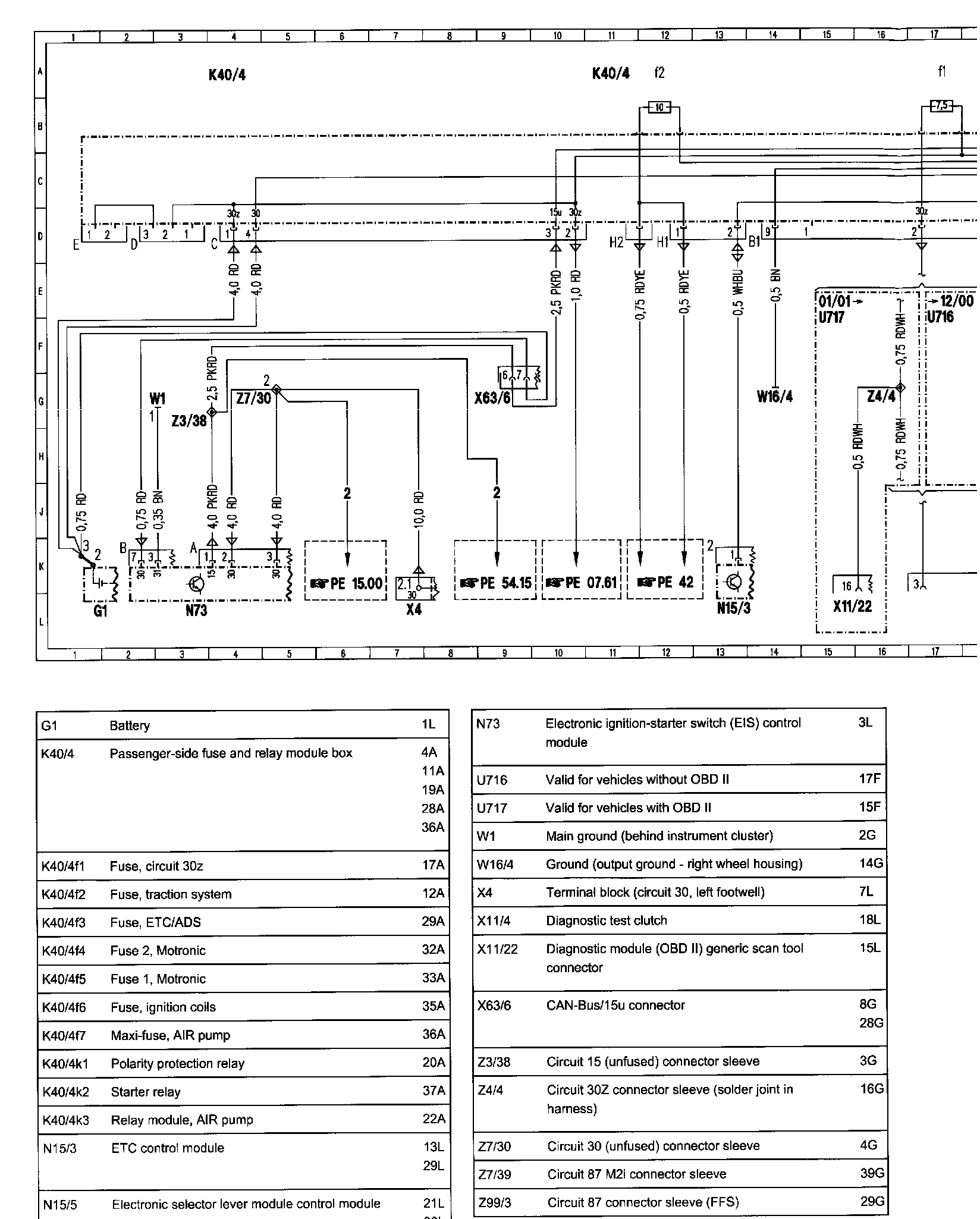

��N��N� O� O%$OWiring Diagram:

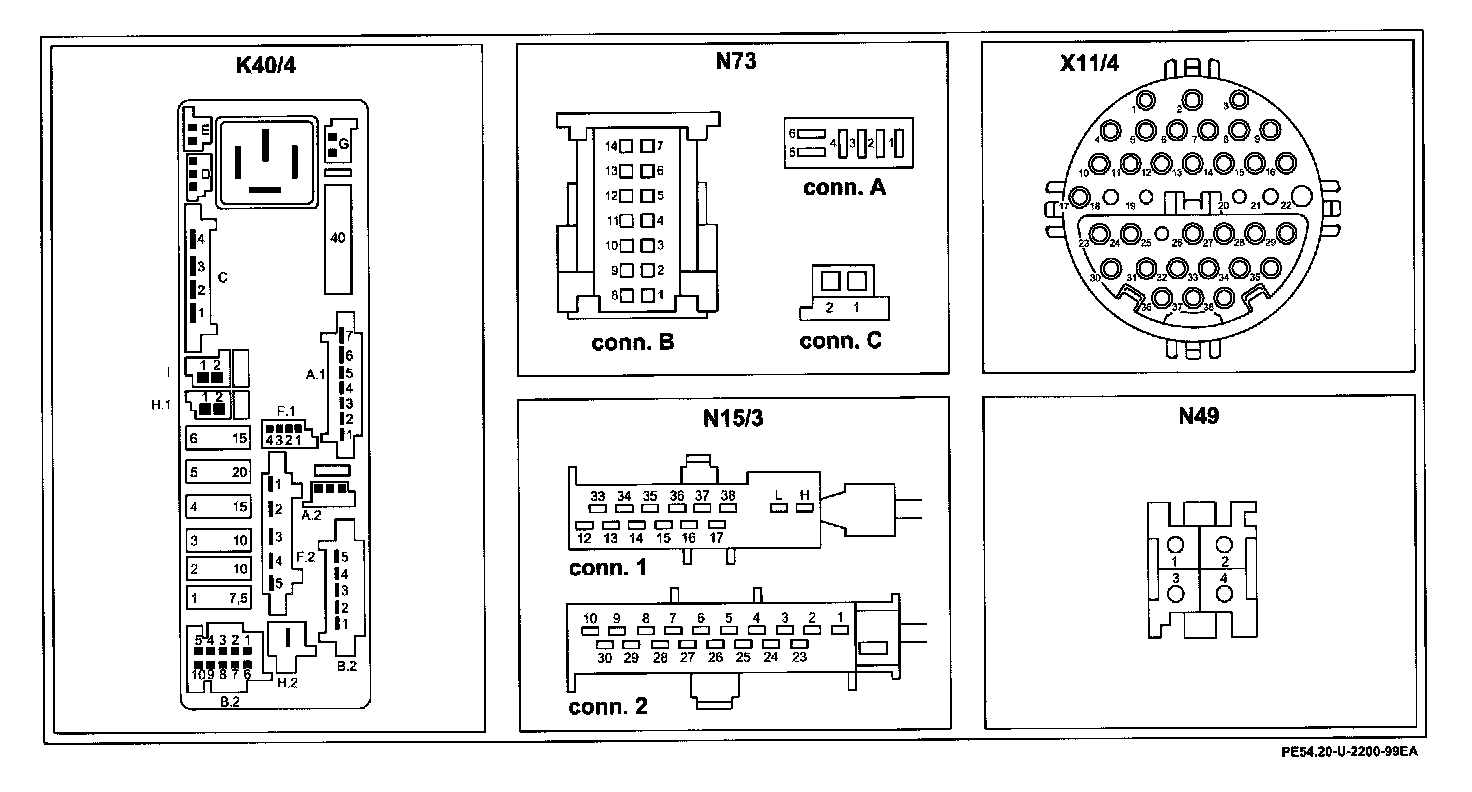

Connector Assignment:
