FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2000
>>
E 55 AMG (210.074) V8-5.5L (113.980)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>

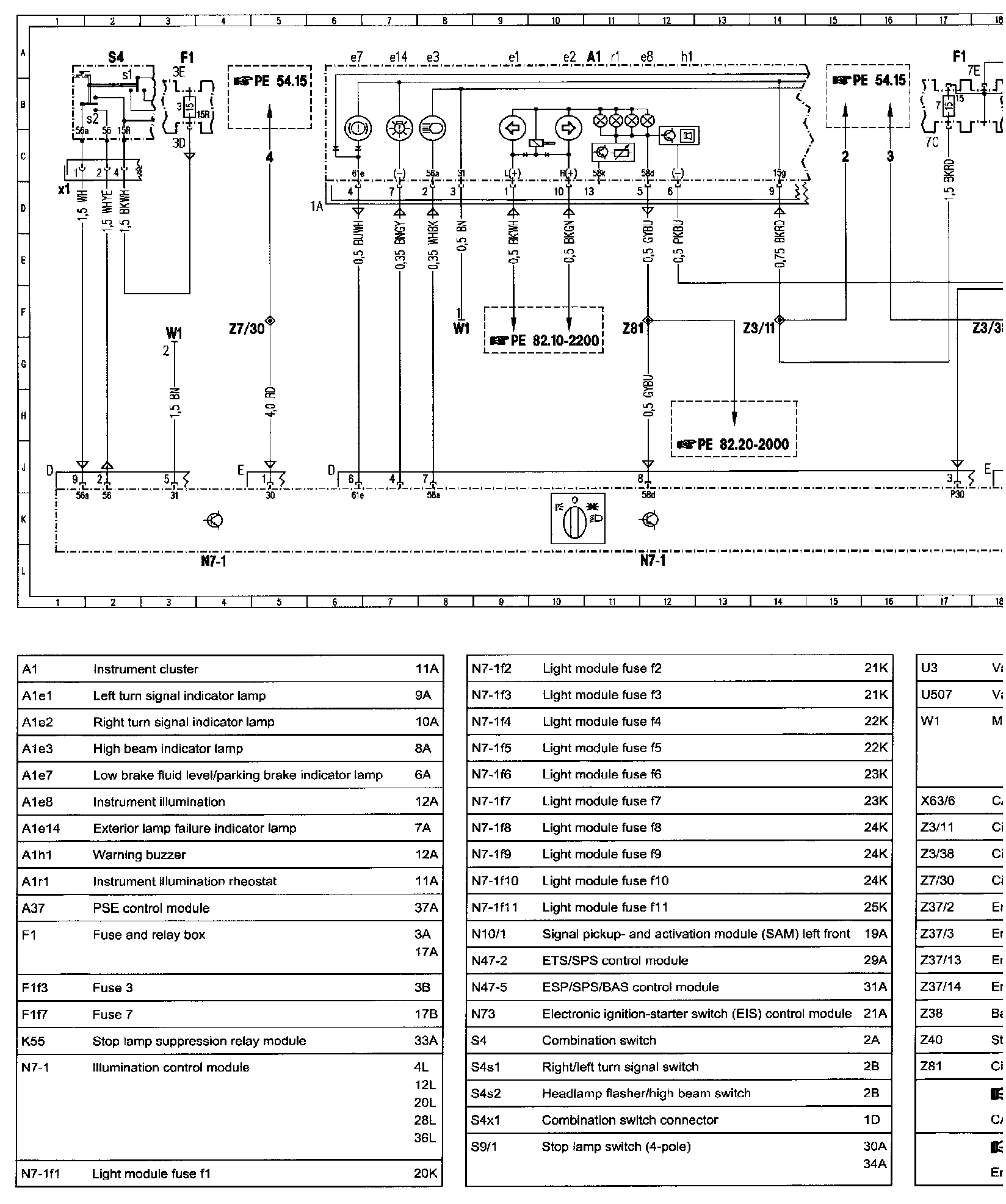

Exterior Lights W/O Xenon (Part 1) PE82.10-U-2000EA
Exterior Lights W/O Xenon (Part 1) PE82.10-U-2000EA
Part 1, Indicating Elements/Switches/Sensors
�+Z��+ZPE82.10-U-2000-99EA:
