Location/Purpose/Design

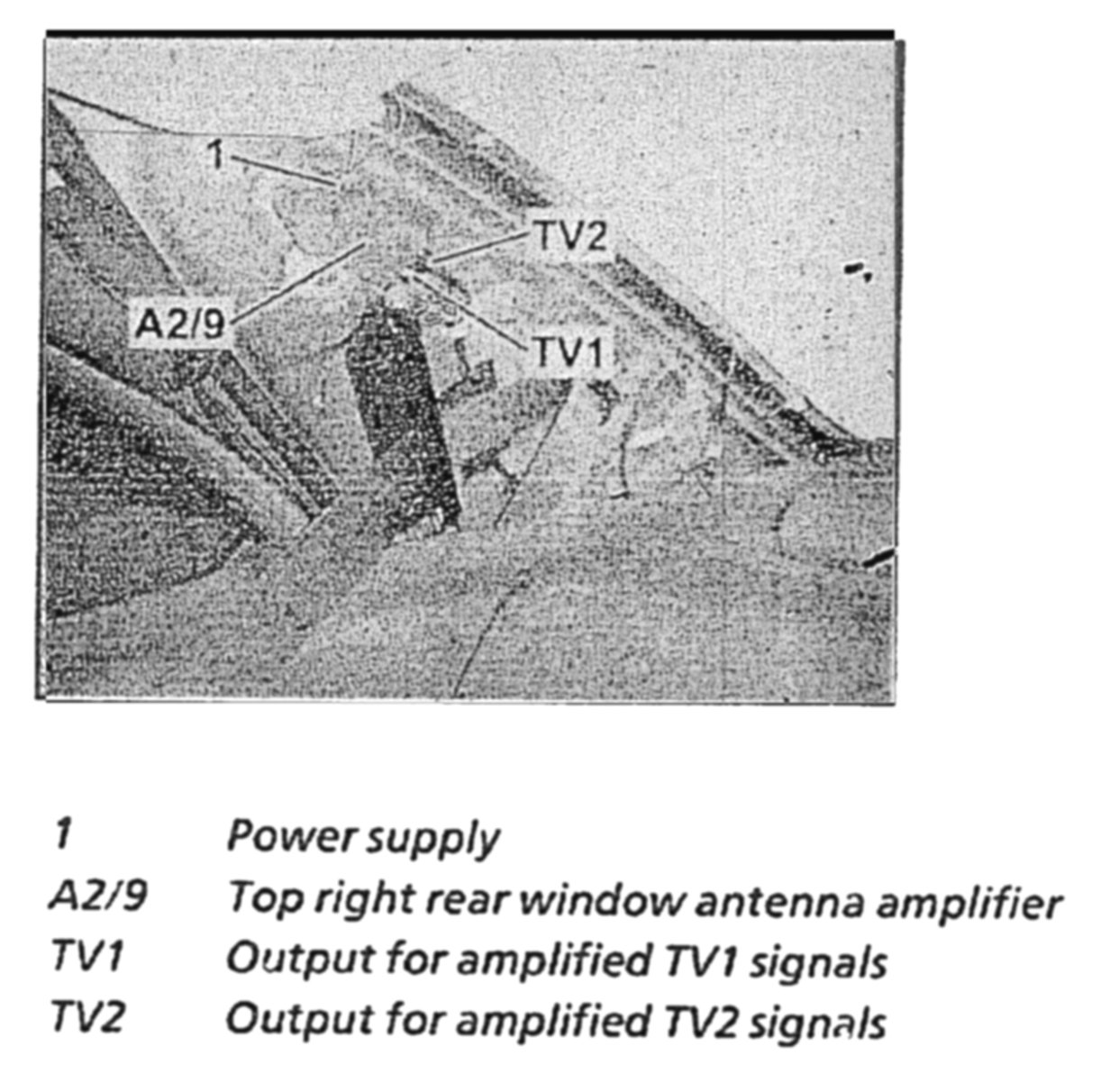

Illustrated on model 208

Audio/TV antenna amplifier

Location
Under panelling on right C-pillar.

Purpose
Amplifying and filtering signals of the following antennas:
- TV1, TV2.

Design
Inputs:
- TV1 and TV2 antenna signals and power supply
Outputs:
- Amplified TV1 and TV2 signals.
