F. Install Voice Recognition Push-to-Talk (Ptt) Lever

F. Installation of Voice Recognition Module Optional Push-To-Talk (PTT) Lever

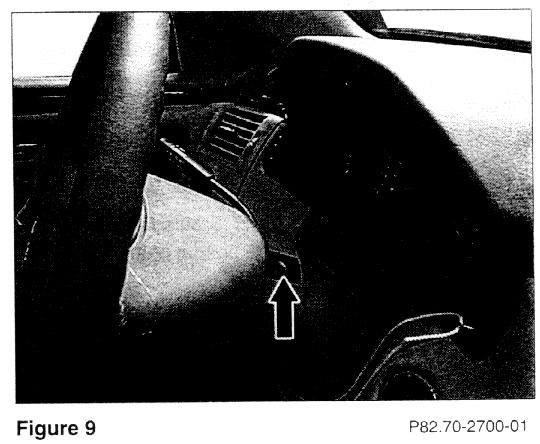

Figure 9:

1. Remove the plug covering the PTT mounting hole (Figure 9)

2. Install the PTT lever by fully inserting it pointing toward the roof, then rotating down until it "clicks" into place.

Figure 10:

3. Apply a slight upward rotating pressure on the lever to verify that it is locked into place (Figure 10).

4. Proceed to:

^ Section G if installing the CD changer.

^ Section H if NOT installing the CD changer.
