Home >> Mercedes Benz >> 2000 >> E 55 AMG (210.074) V8-5.5L (113.980) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Cellular Phone >> Diagrams >> Electrical Diagrams >> Cellular Telephone (CTEL) PE82.70-U-2000EA

Cellular Telephone (CTEL) PE82.70-U-2000EA

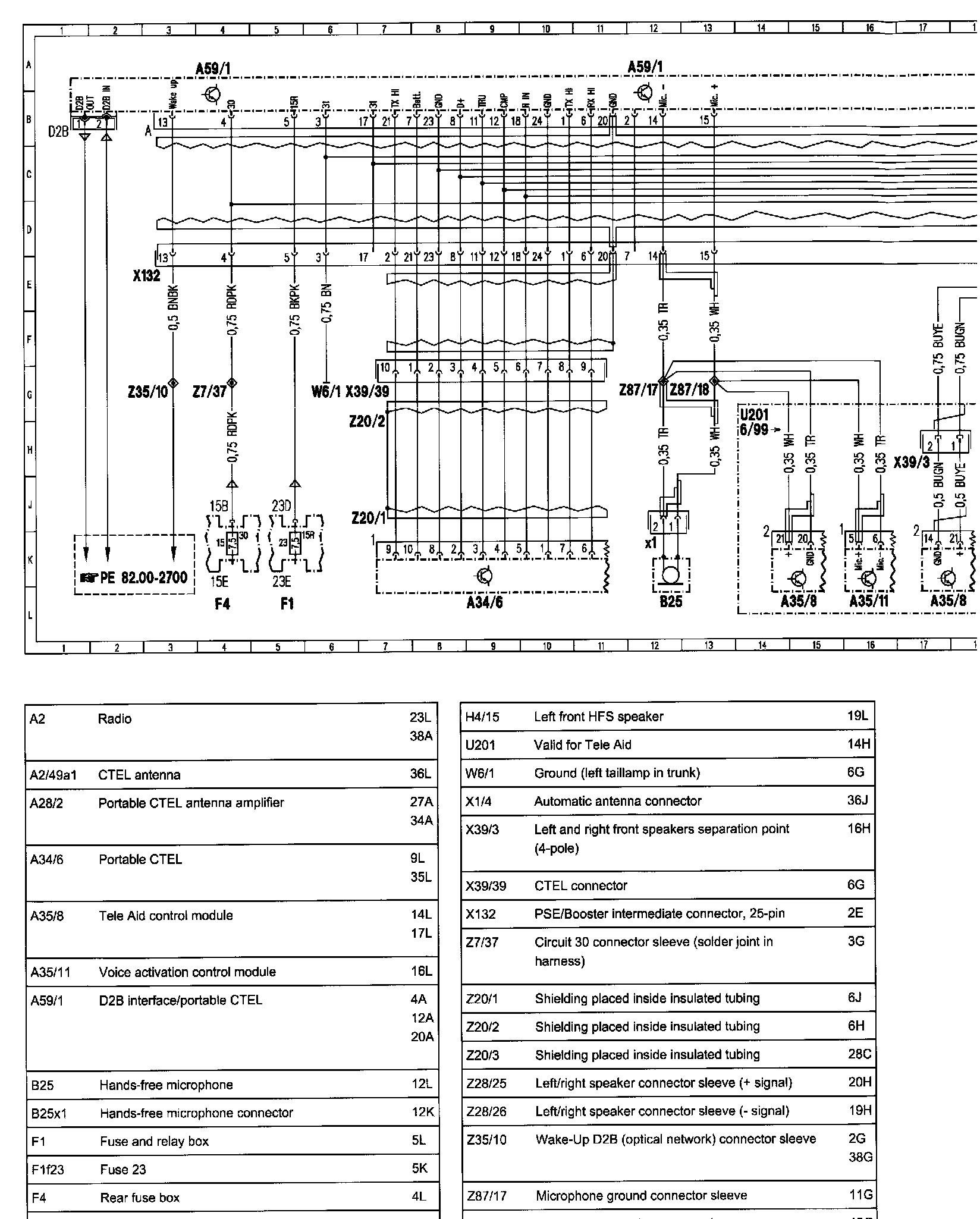

��8��84A�8IA�8O�8Wiring Diagram:

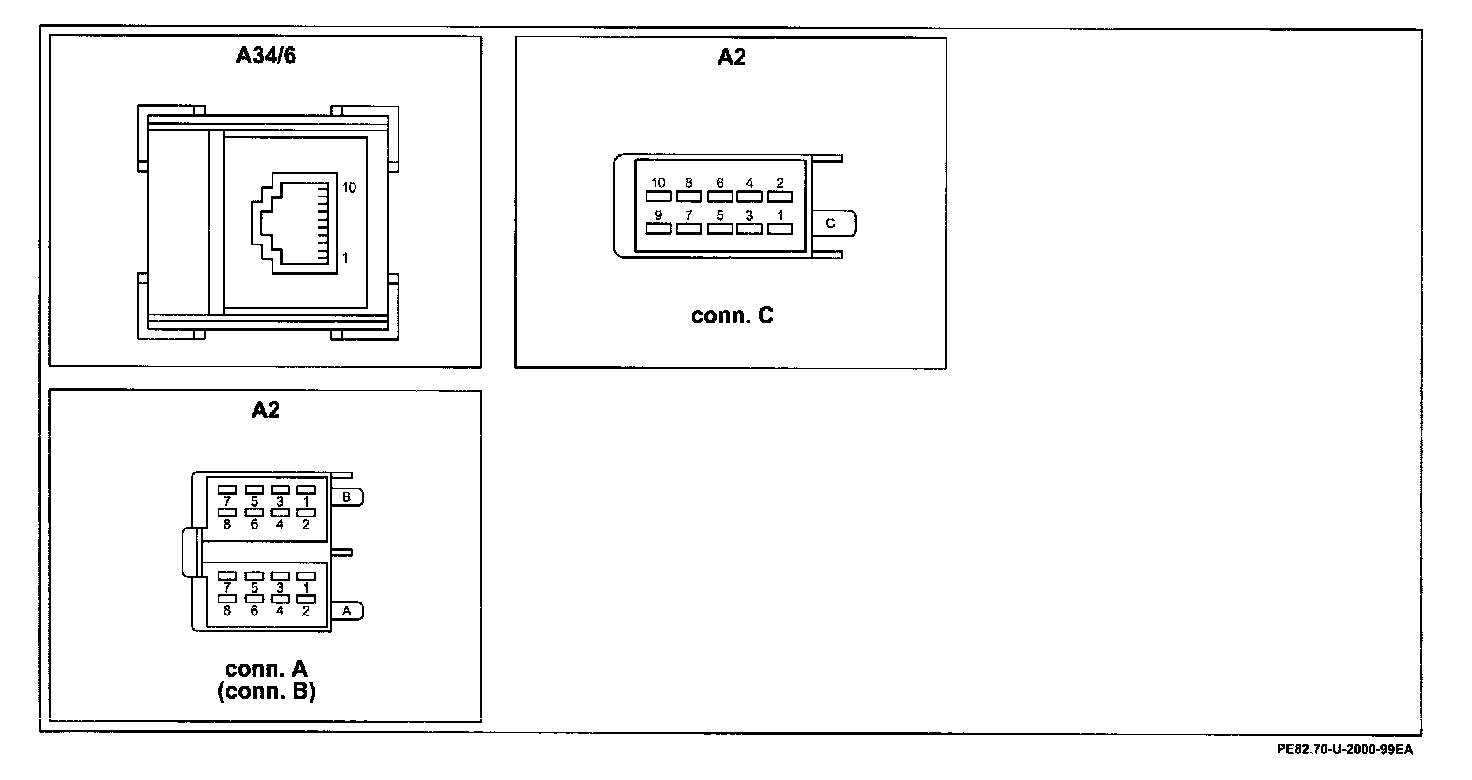

Connector Assignment:
