Component Locations - Section 21

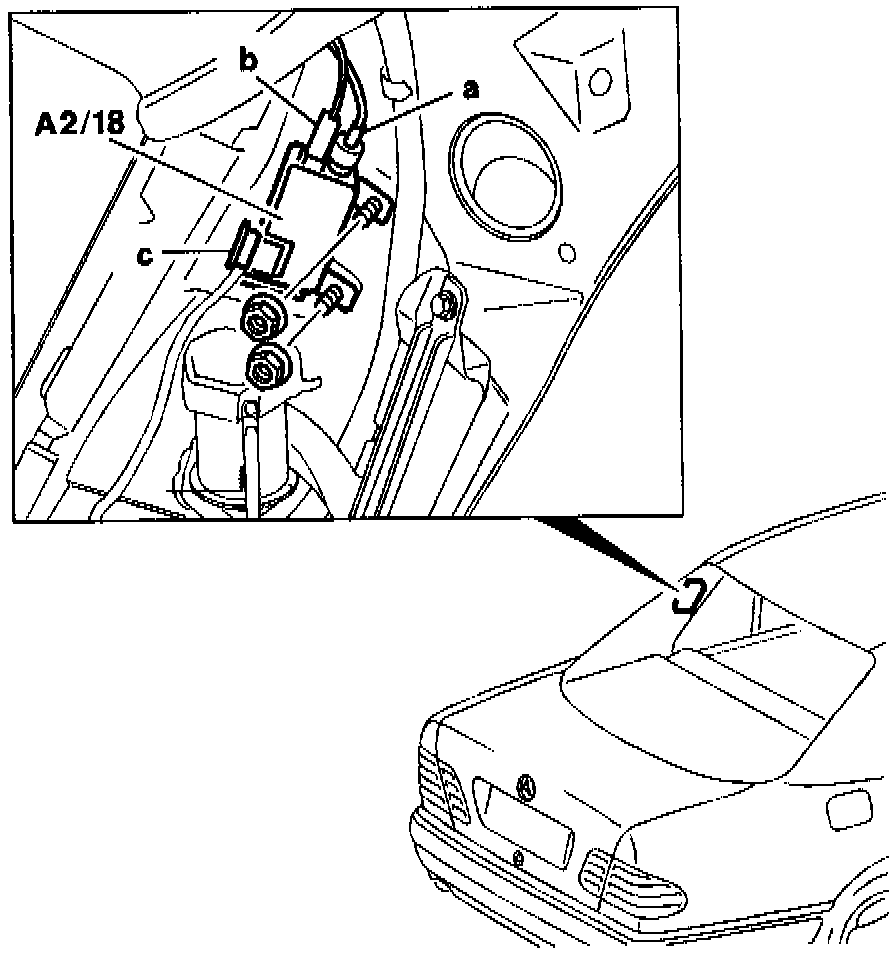

A2/18 FM/AM rear window antenna amplifier
a High frequency connection wire to radio
b Automatic antenna control wire from radio
c Signal wire from rear window antenna

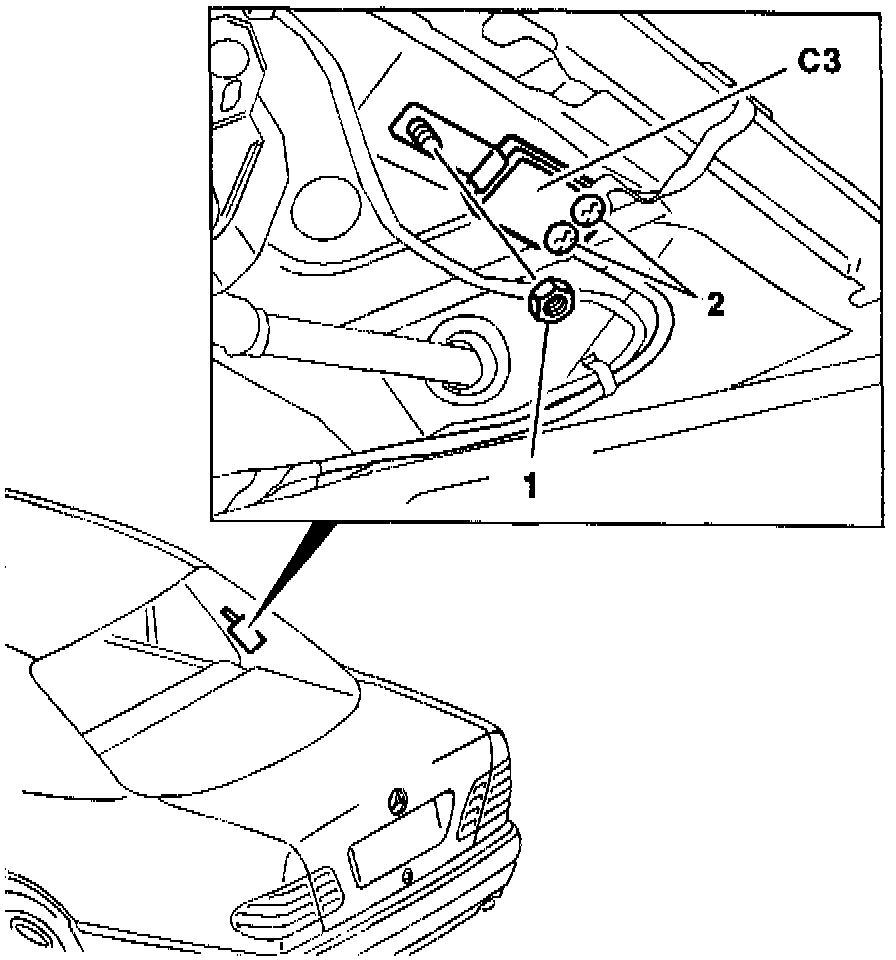

C3 Electrolytic capacitor (rear glass noise suppressor) (right C-pillar)
