Front Door Window Motor: Service and Repair

Removing And Installing Power Window Motor In Front Door

1 Remove door liner on front door
2 Partially pull foil off of door liner

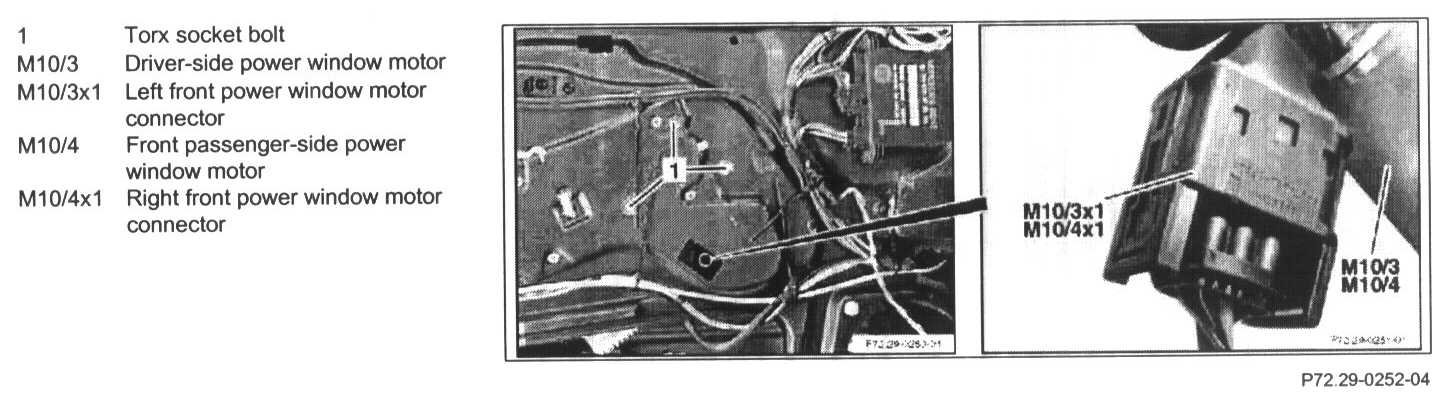

NOTE: Until socket bolt (1) is visible

3 Disconnect left front power window motor connector (M10/3x1) or right front power window motor connector (M10/4x1) from driver-side power window motor (M10/3) or front passenger-side power window motor (M10/4).
4 Unscrew Torx socket bolts (1)

CAUTION: Secure motor so that it does not fall

See "Special Tools" given below.

Screw for power window motor in front door - 13 N.m

5 Remove driver-side power window motor (M10/3) or front passenger-side power window motor (M10/4) from door

CAUTION: Before installing grease gear on motor lightly

NOTE: Installation: When installing observe hole pattern for mounting

6 Reinstall in opposite order

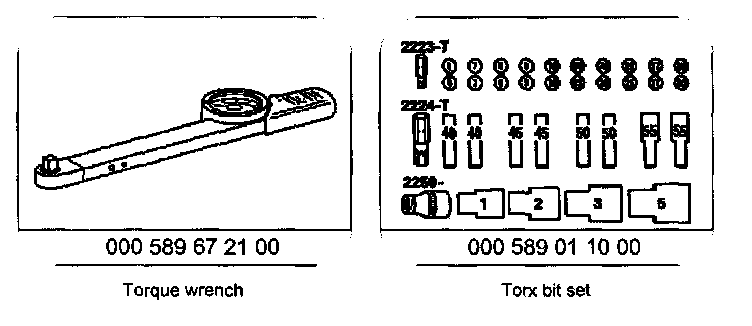

Special Tools

Front Door Window Motor: Service and Repair

Special Tools:
