Home >> Mercedes Benz >> 2000 >> CLK 320 (208.365) V6-3.2L (112.940) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Cooling System >> System Specifications

System Specifications



BE20.10-P-1000-02A Coolant thermostat

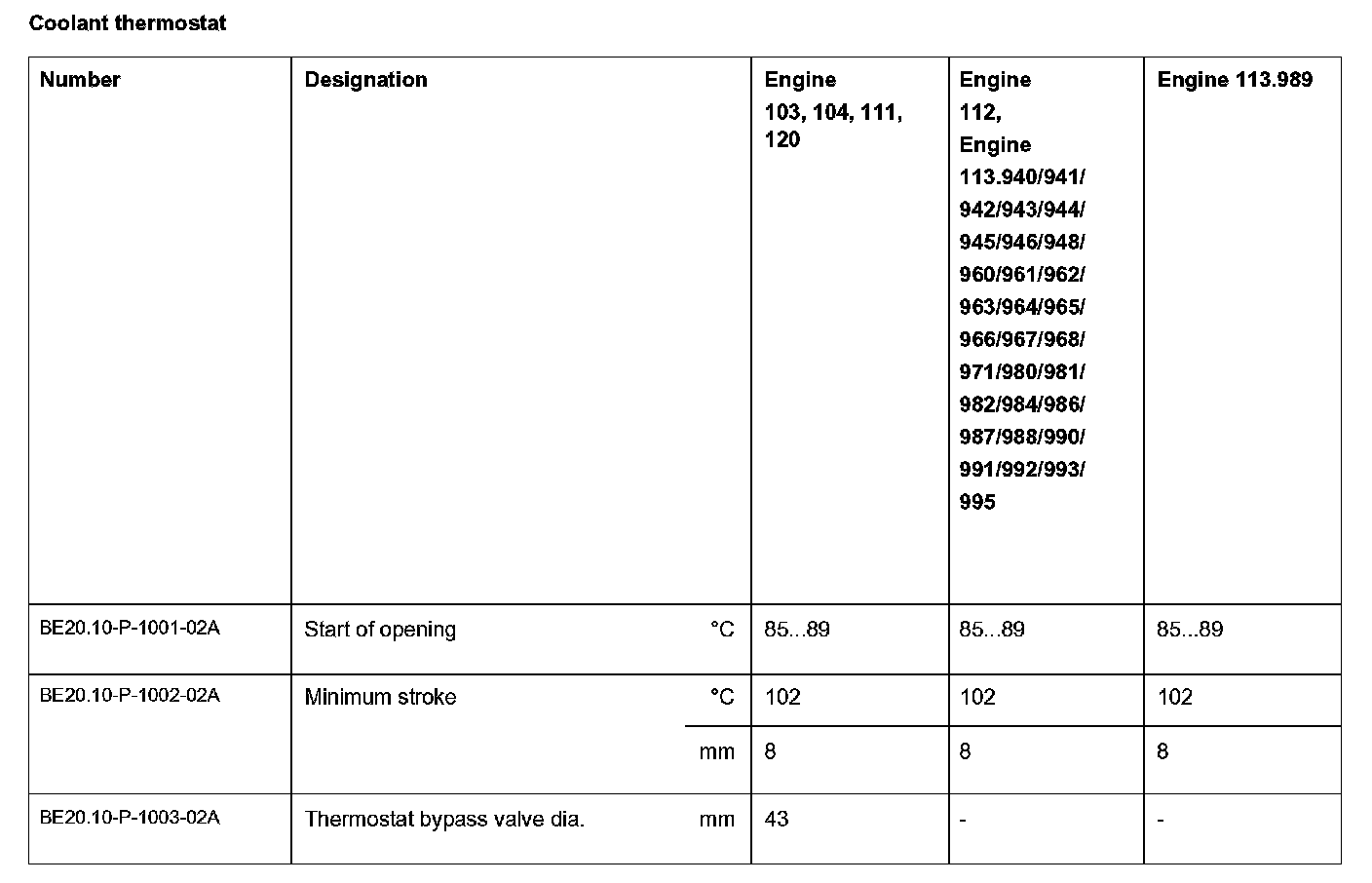

Coolant thermostat:

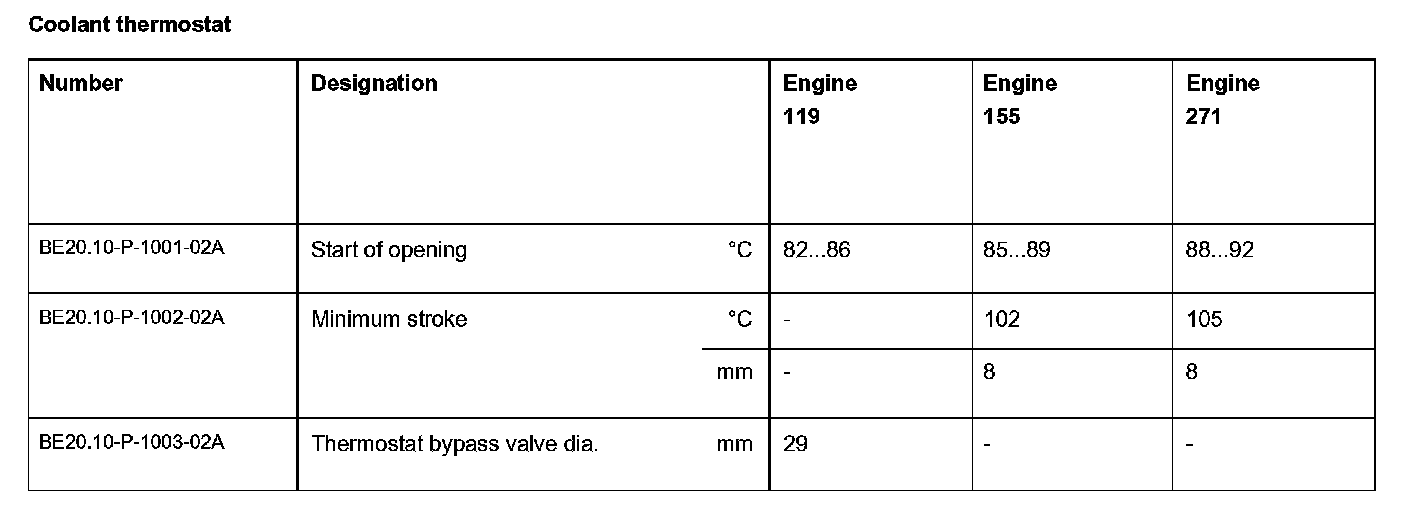

Coolant thermostat:
