Cabin Temperature Sensor / Switch: Locations
In-Car Temp Sensor With Aspirator Blower

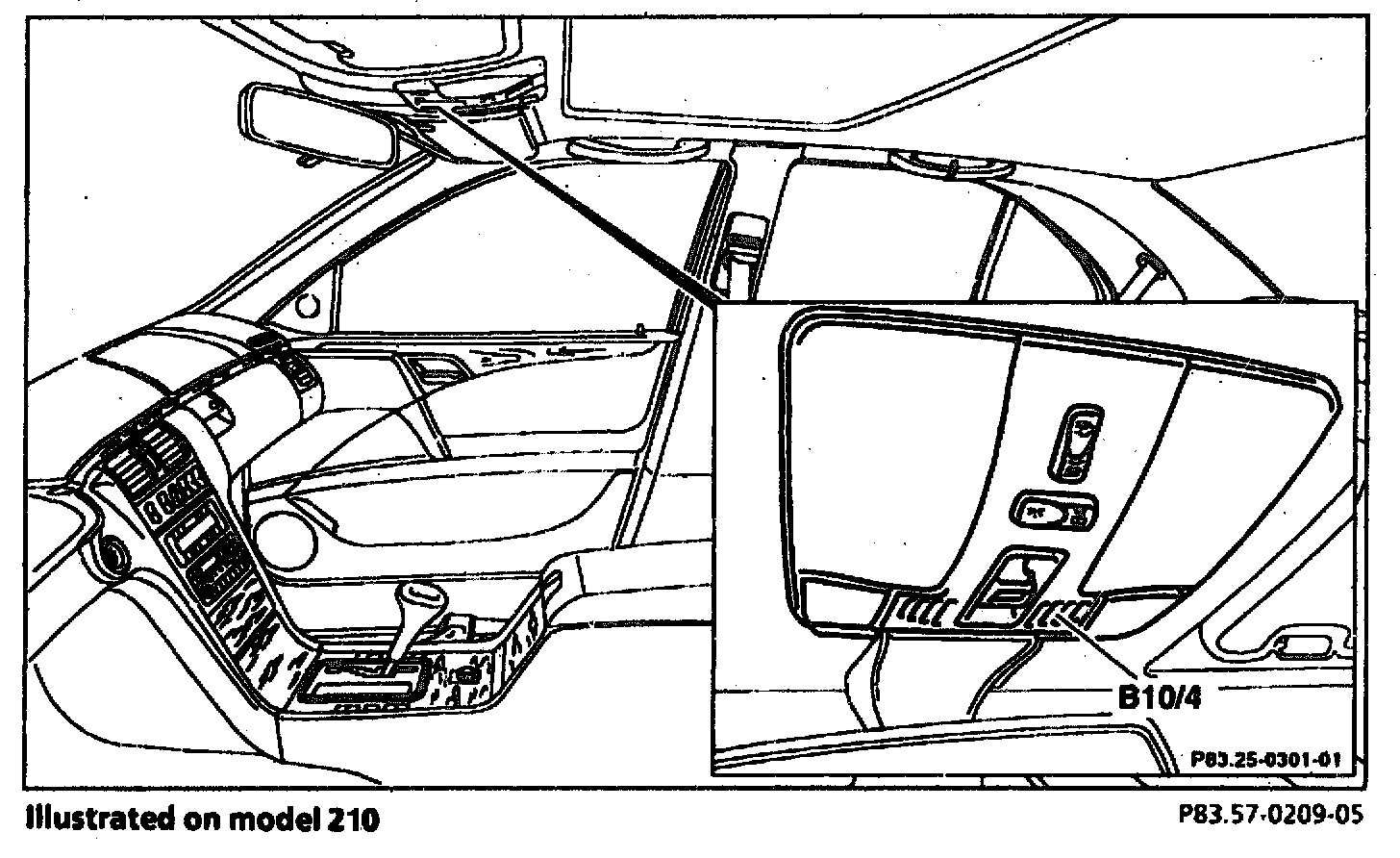

Illustrated On Model 210:
The in-car temperature sensor with aspirator blower (B10/4) is located in the dome light on the vehicle headliner.
In-Car Temp Sensor With Aspirator Blower
The in-car temperature sensor with aspirator blower (B10/4) is located in the dome light on the vehicle headliner.
