Remove/Install Front Head Restraint Motor - AR91.29-P-1432K

Removing And Installing Front Head Restraint Motor







1 Fold front seat forward

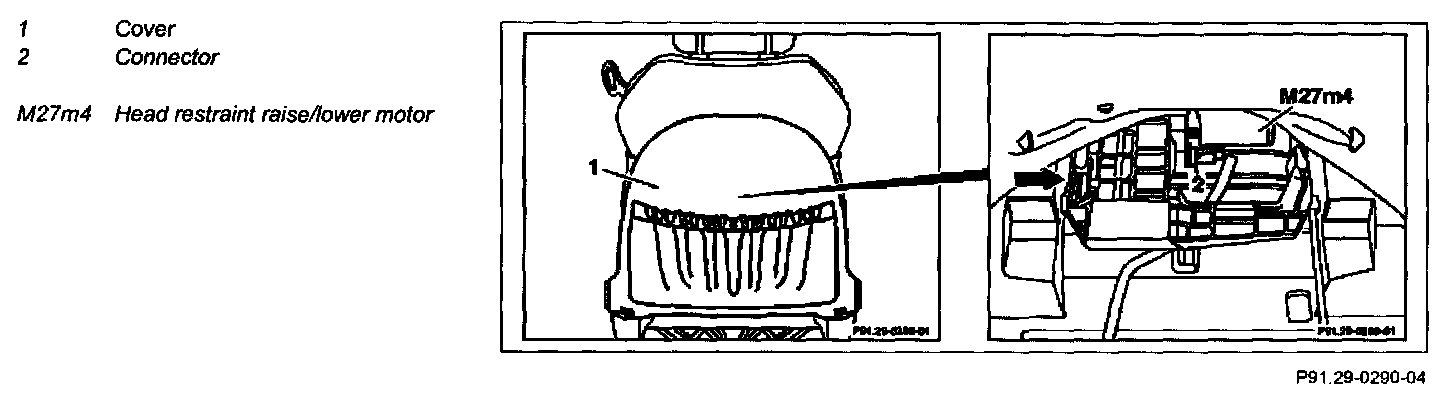

2 Remove cover (1) on front seat

NOTE: Two screws in lower area of cover

3 Remove head restraint from front seat

NOTE: Installation: Ensure that head restraint catches in head restraint holder

4 Disconnect connector (2)
5 Press head restraint raise/lower motor (M27m4) to right (arrow) and remove downward
6 Reinstall in opposite order
7 Check for proper function
