GF42.30-P-4500-02A Design of ABS Control Module

GF42.30-P-4500-02A Design Of ABS Control Module
- with CODE (470a) Anti-lock braking system (ABS)










There are several versions of the ABS control module, recognized by the shape of the housing (e.g. LK55):

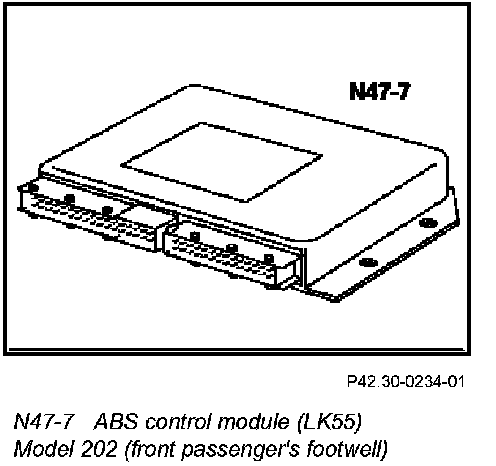

- Shape of LK55 housing
Model 202 up to 08/95

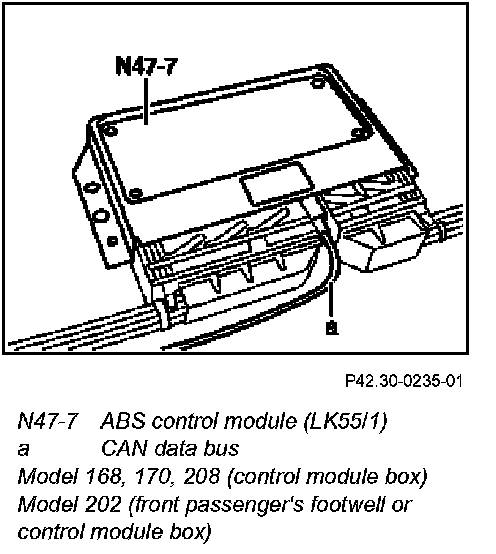

- Shape of LK55/1 housing
Model 202 as of 09/95
Models 168, 170, 208 as of start of production
