Parking Assist Control Module: Service and Repair

Removing And Installing Parktronic System (PTS) Control Module







1 Disconnect ground lead from battery
2 Fold back floor covering in passenger footwell

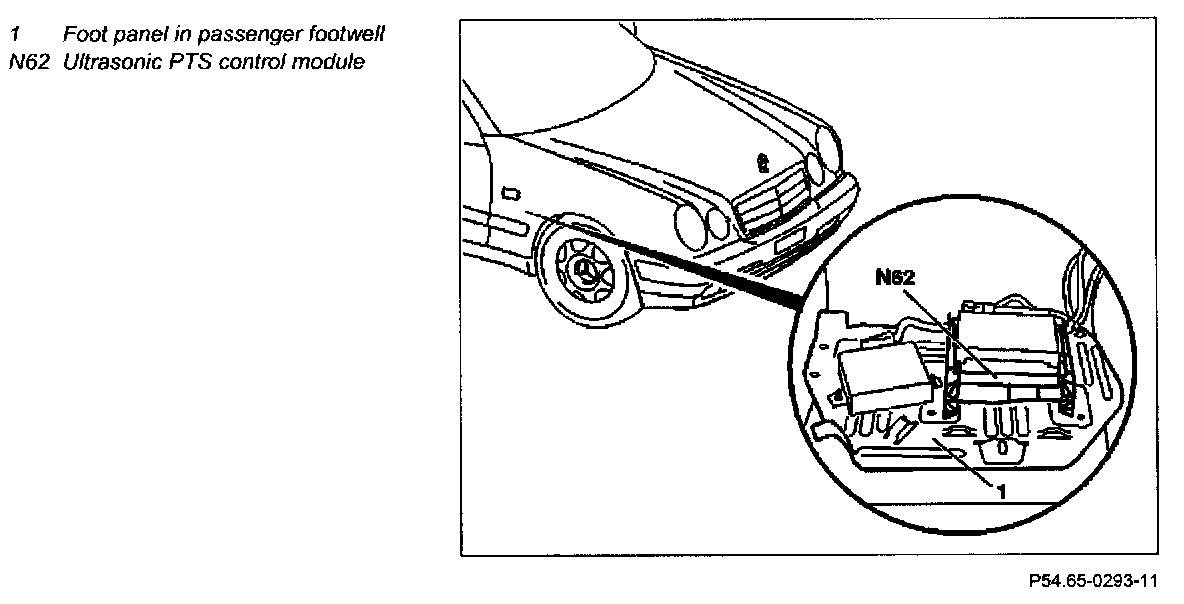

3 Remove foot plate in passenger footwell (1) from vehicle floor
4 Disconnect connector on PTS control module
5 Unclip PTS control module (N62) and remove from guide
6 Reinstall in opposite order
