Rear Axle Speed Signal (VSS) PE00.19-U-2100MF
Rear Axle Speed Signal (VSS) PE00.19-U-2100MF
Rear Axle Speed Signal (
VSS
)
Rear Axle Speed Signal (VSS) PE00.19-U-2100MF:

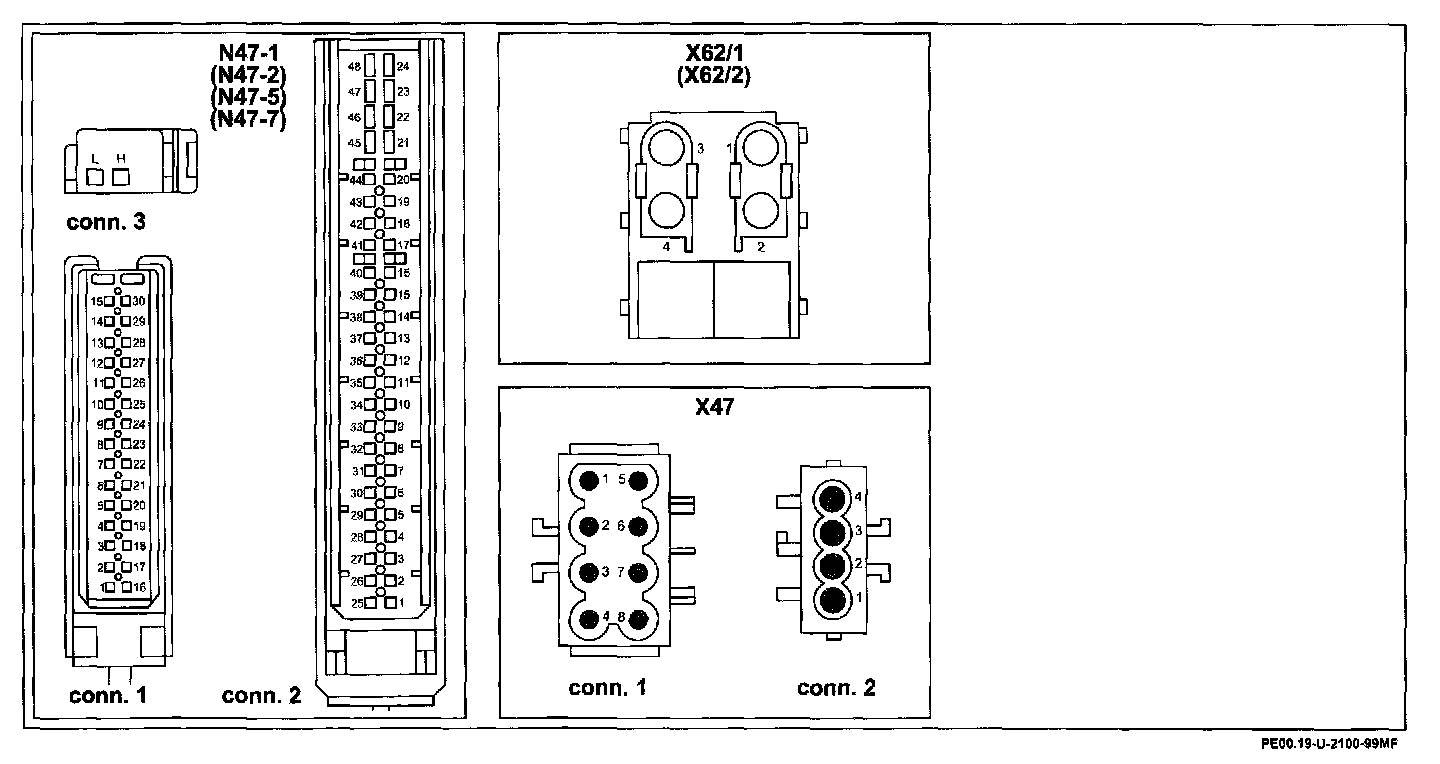

Connector Assignment:

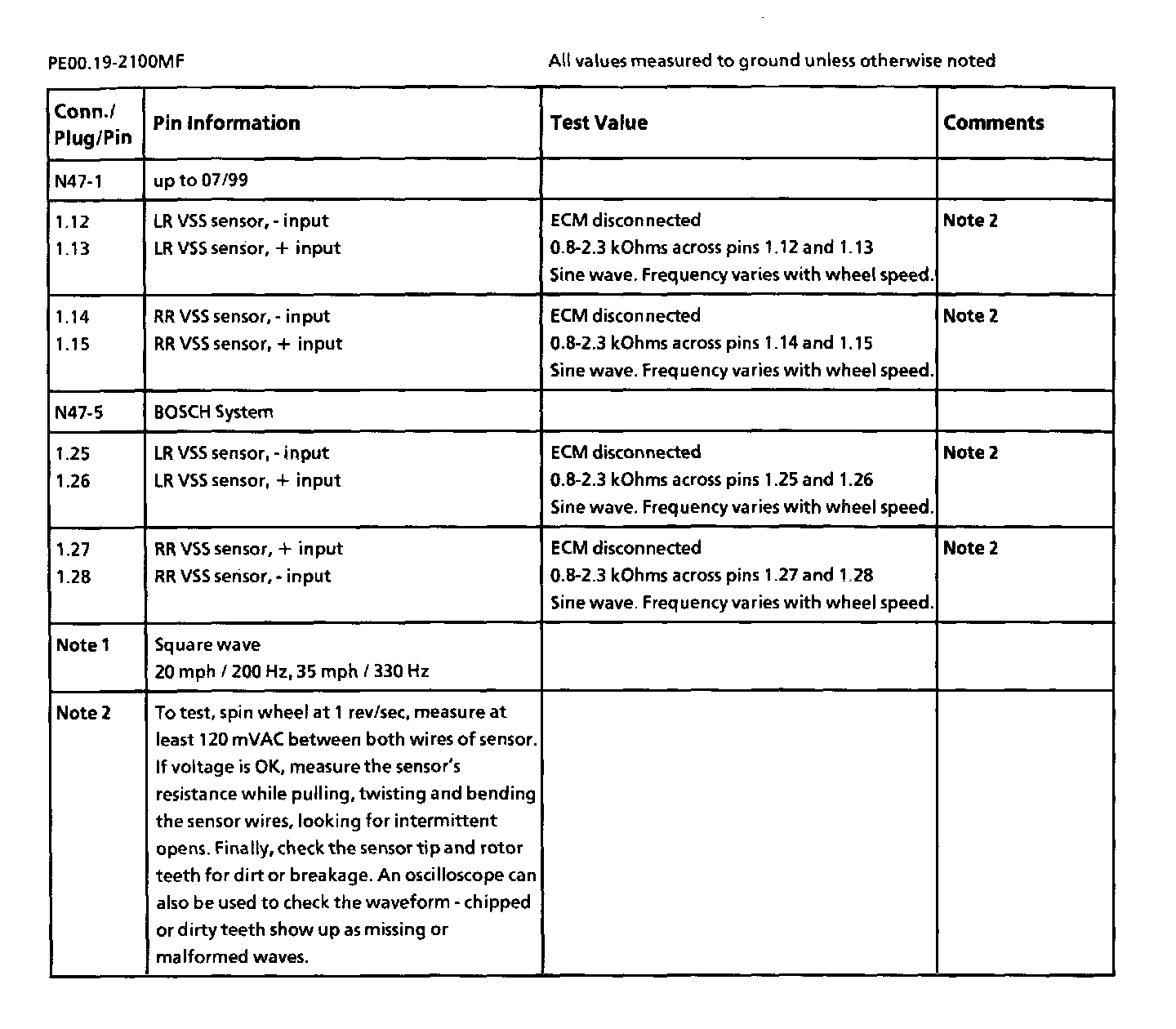

Pin Information:
